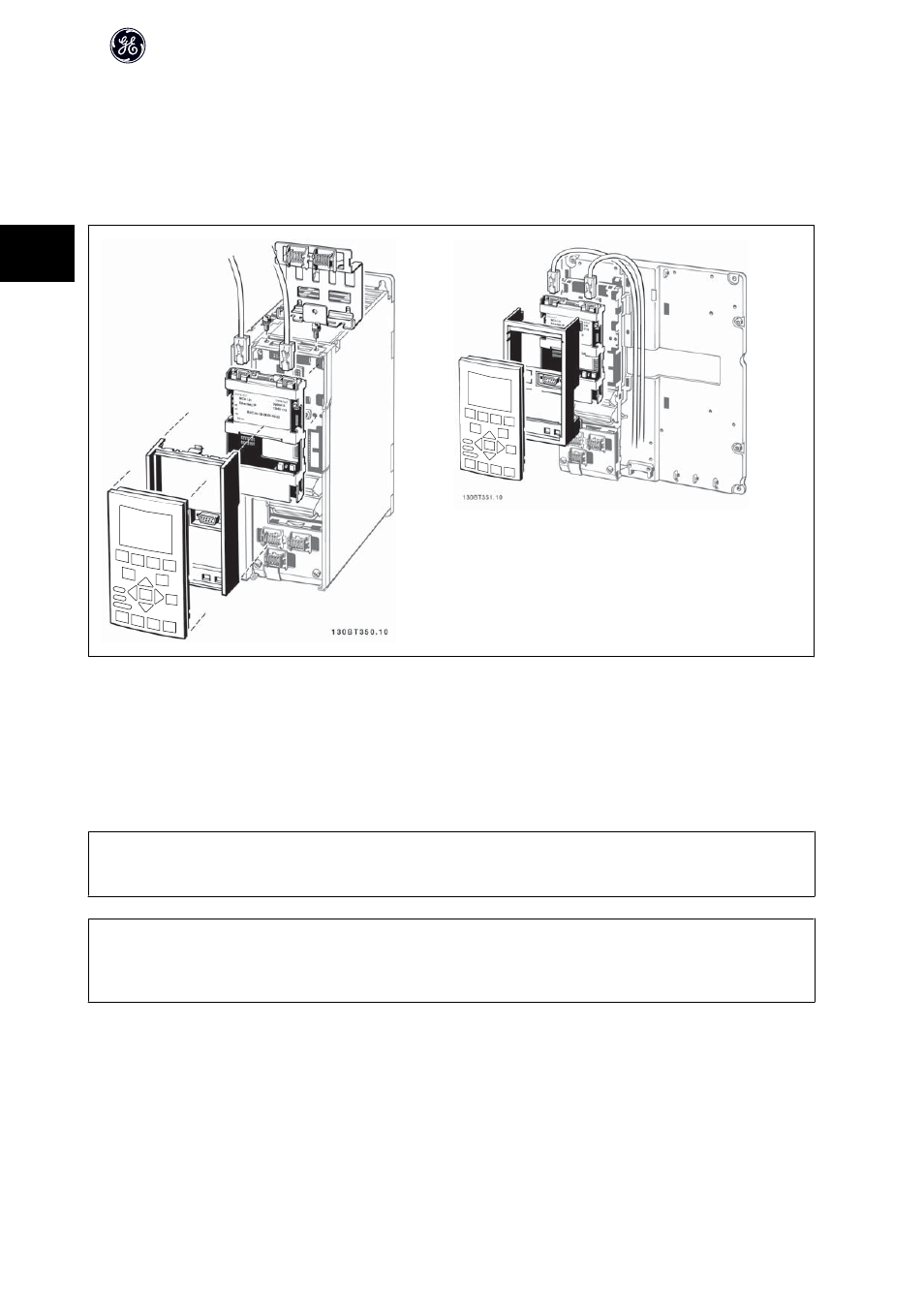

3.1.2 How to Install Option in Frequency Converter
Items required for installing a network option in the frequency converter:
- The network option
- Network option adaptor frame for the AF-650 GP/AF-600 FP. This frame is deeper than the standard frame, to allow space for the network option beneath
- Strain relief (only for unit sizes 11 and 12)
Instructions:
- Remove Keypad panel from the AF-650 GP/AF-600 FP.
- Remove the frame located beneath and discard it.
- Push the option into place. The Ethernet connectors must be facing upwards.
- Remove both knock-outs on the network option adaptor frame.
- Push the network option adaptor frame for the AF-650 GP/AF-600 FP into place.
- Replace the Keypad and attach cable
NB!
Do not strip the Ethernet cable and ground it via the strain relief-plate! The grounding of screened Ethernet cable is done through the RJ-45 connector on the
option.
NB!
After installing the OPCEIP option, be aware of the following parameter settings:
par. O-01 Control Site: [2] Controlword only or [0] Digital and ctrl. word
par.O-02 Control Word Source: [3] Option A
OPCEIP EtherNet/IP
