5 How to Control
5.1 How to Control
5.1.1 I/O Assembly Instances
I/O Assembly Instances are a number of defined process control objects with defined content comprising control and status information.
Unlike DeviceNet it is possible to run with asymmetrical instances. E.g. 101/153 = 8 bytes/20 bytes.
It is not possible to mix instances across profiles, e.g. 20/100. Assembly instances must be consistent to the: ODVA or Drive profile.
The controlling instance can be read in par. EN-20, Control Instance.

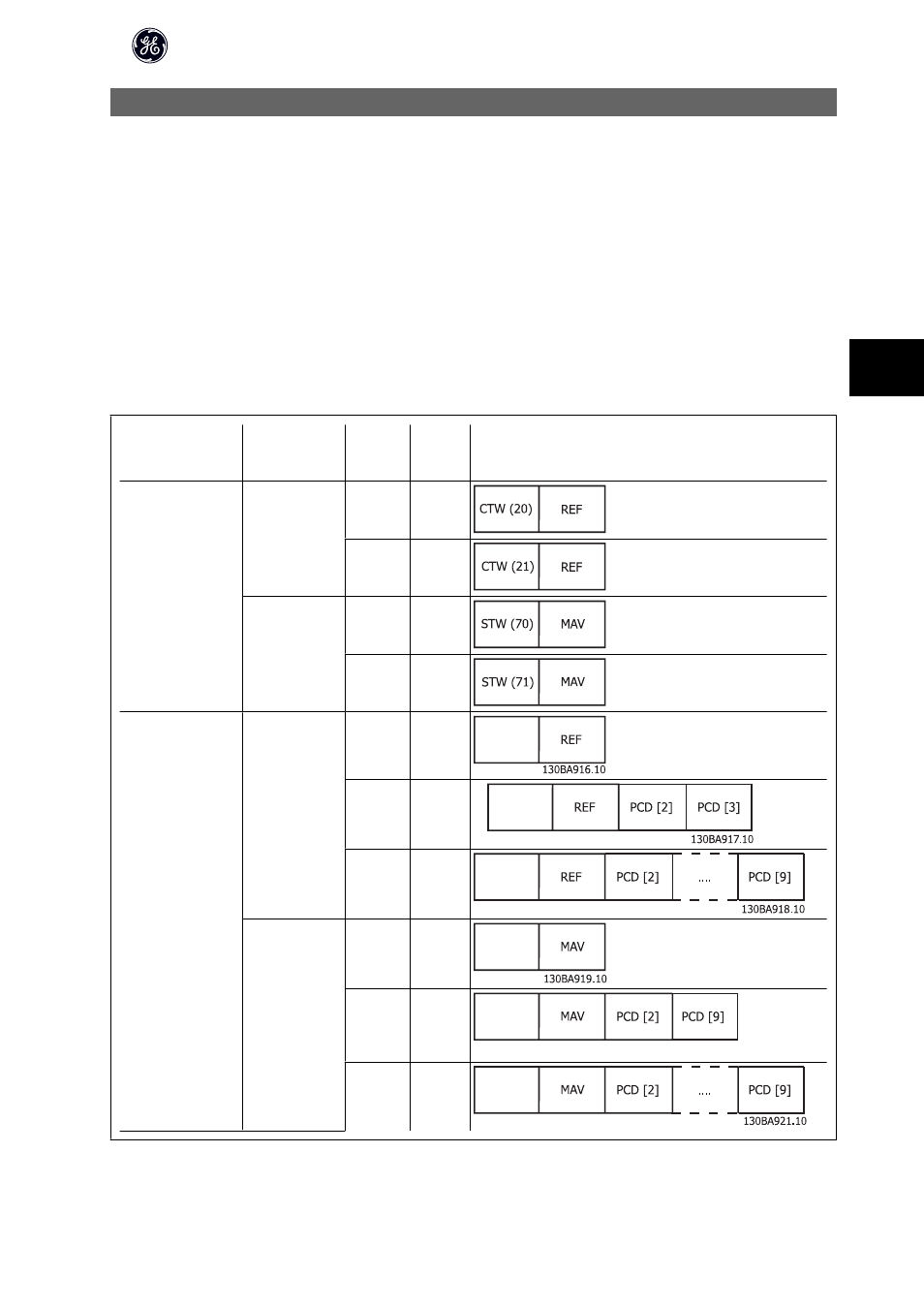

The figure below shows the I/O Assembly Instance options for controlling and monitoring the AF-650 GP/AF-600 FP drive.
Profile
(par.O-10 Control Word
Profile)
Direction
Instances
(decimal)
Size
(bytes)
Data
ODVA
Originator →Target
20 4
21 4
Target →Originator
70 4
71 4
Drive
Originator →Target
100 4
CTW
(Drive)
101 8
CTW
(Drive)
103 20
CTW
(Drive)
Target →Originator
150 4
STW
(Drive)
151 8
STW
(Drive)
130BA920.10
153 20
STW
(Drive)
