Bit 12:
Not used.
Bit 13, Selection of set-up:
Bit 13 = is used to choose the active set-up. The function is only possible when Multi set-ups is selected in par. 0-10 Active Set-up.
NB!
In par. 8-55 Set-up select a selection is made to define how Bit 13 gates with the corresponding function on the digital inputs.
Bit 14:
Not used.
Bit 15, Reverse:
Bit 15 = “0” causes no reversing.
Bit 15 = “1” causes reversing.
NB!
Depends on par. 8-54 Reversing select.

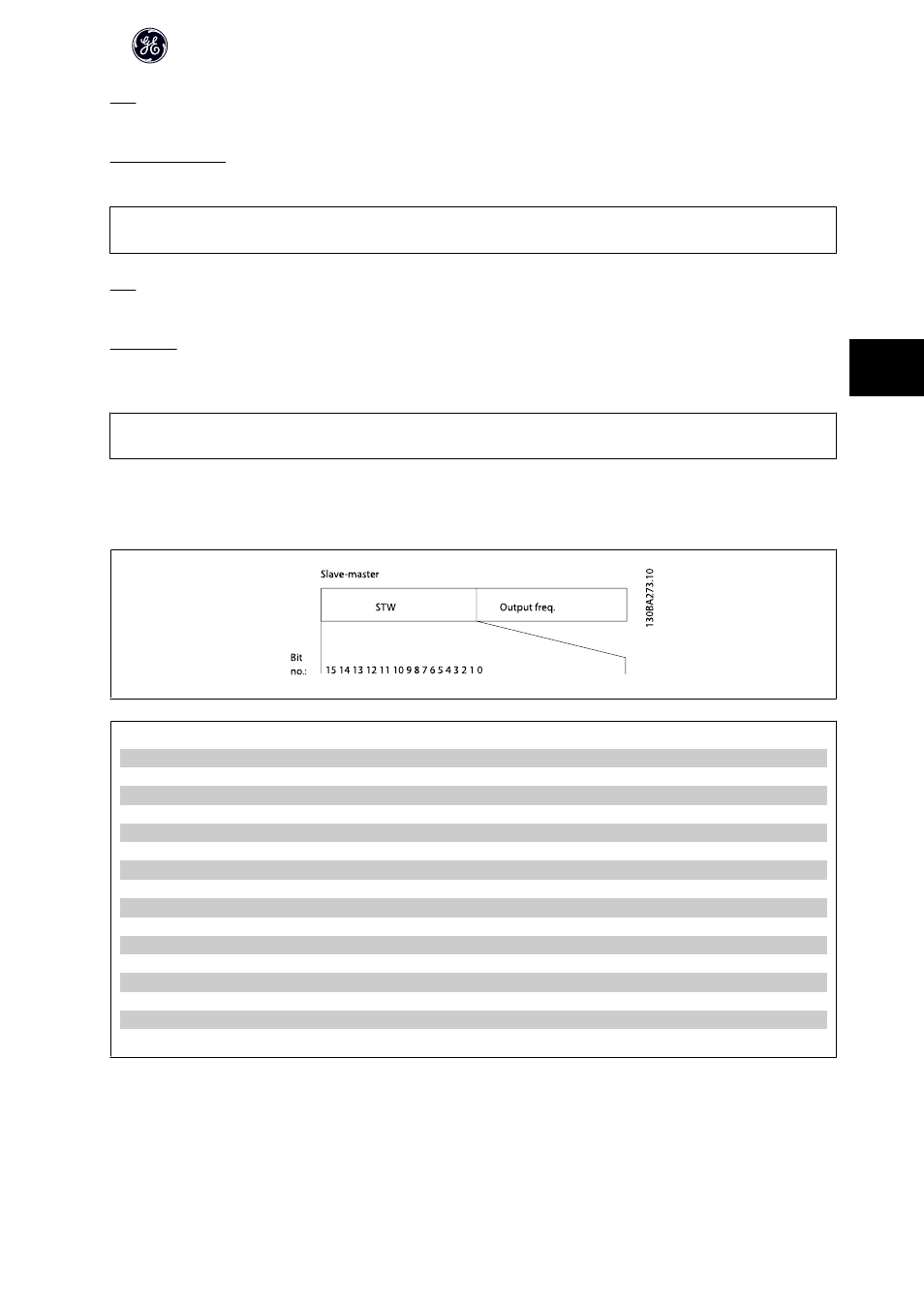

5.6.3 Status Word According to GE Drive Control Profile (STW)
Bit Bit value = 0 Bit value = 1
00 Control not ready Control ready
01 Unit not ready Unit ready
02 Coasting Enable
03 No error Error, trip
04 No error Error (no trip)
05 Reserved -
06 Not trip locked Trip locked
07 No warning Warning
08 Speed ≠ reference Speed = reference
09 Local operation Bus control
10 Out of frequency limit Frequency limit OK
11 Not running Running
12 No resistor brake fault Resistor brake fault
13 Voltage OK Voltage exceeded
14 Torque OK Torque exceeded
15 No thermal warning Thermal warning
