CR 194 One/Two-High Vacuum Limitamp ® AR Control Page 13

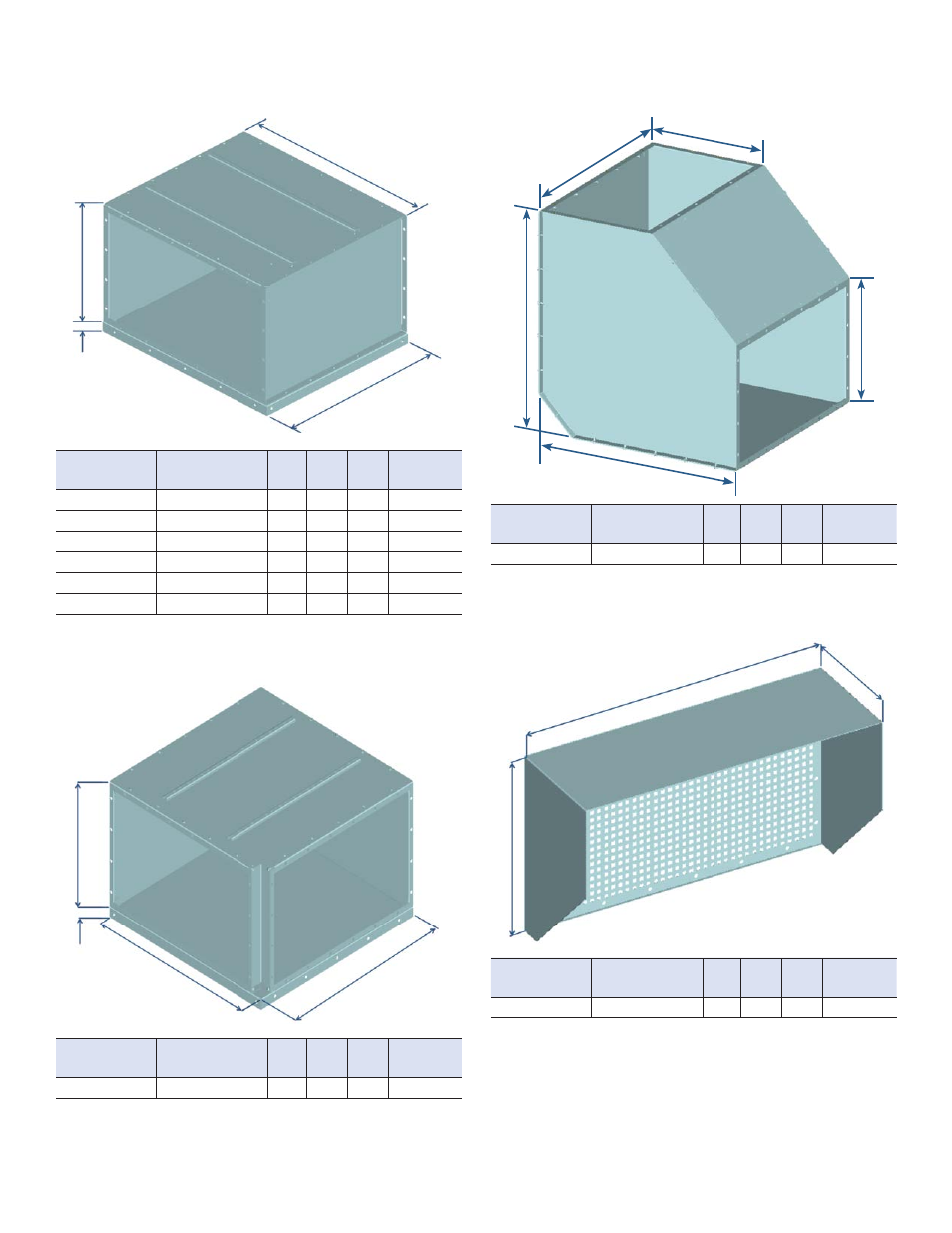

Limitamp AR Extension Plenum
Limitamp AR Extension Plenum - Straight
Note: 2 inch bottom cover plate has ø 0.635 holes to support the extension plenum
Note: Rotate the extension plenum suitably to create Front/Rear elbow
Limitamp AR Extension Plenum – Elbow – Front/Rear
H”
H”
L”
D”
D”
2”
2”
Extension
Plenum Type
Part number L (in) H (in) D (in)
Approx.
Weight (lbs)
12” straight 55B528942ENG4 12 24 42 90
22” straight 55B528942ENG1 22 24 42 135
24” straight 55B528942ENG5 24 24 42 140
36” straight 55B528942ENG2 36 24 42 195
40” straight 55B528942ENG3 40 24 42 215
48” straight 55B528942ENG6 48 24 42 250
Extension
Plenum Type
Part number L (in) H (in) D (in)
Approx.
Weight (lbs)
Front /Rear Elbow 55B528942FZG1 44 24 44 260
Limitamp AR Extension Plenum – Elbow – Up/ Down
Limitamp AR Extension Plenum – End Duct
D”
H”
L”
24”
24”
Note: Rotate the extension plenum suitably to create up/down elbow
Note: End duct will be provided along with a Rodent screen
Extension
Plenum Type
Part number L (in) H (in) D (in)
Approx.
Weight (lbs)
Up/Down Elbow 55B528942GJG1 42.5 42.5 41.5 300
Extension
Plenum Type
Part number L (in) H (in) D (in)
Approx.
Weight (lbs)
End Duck 55C682150ALG1 15 24 42 60
H”
D”
L”
