EMC Considerations

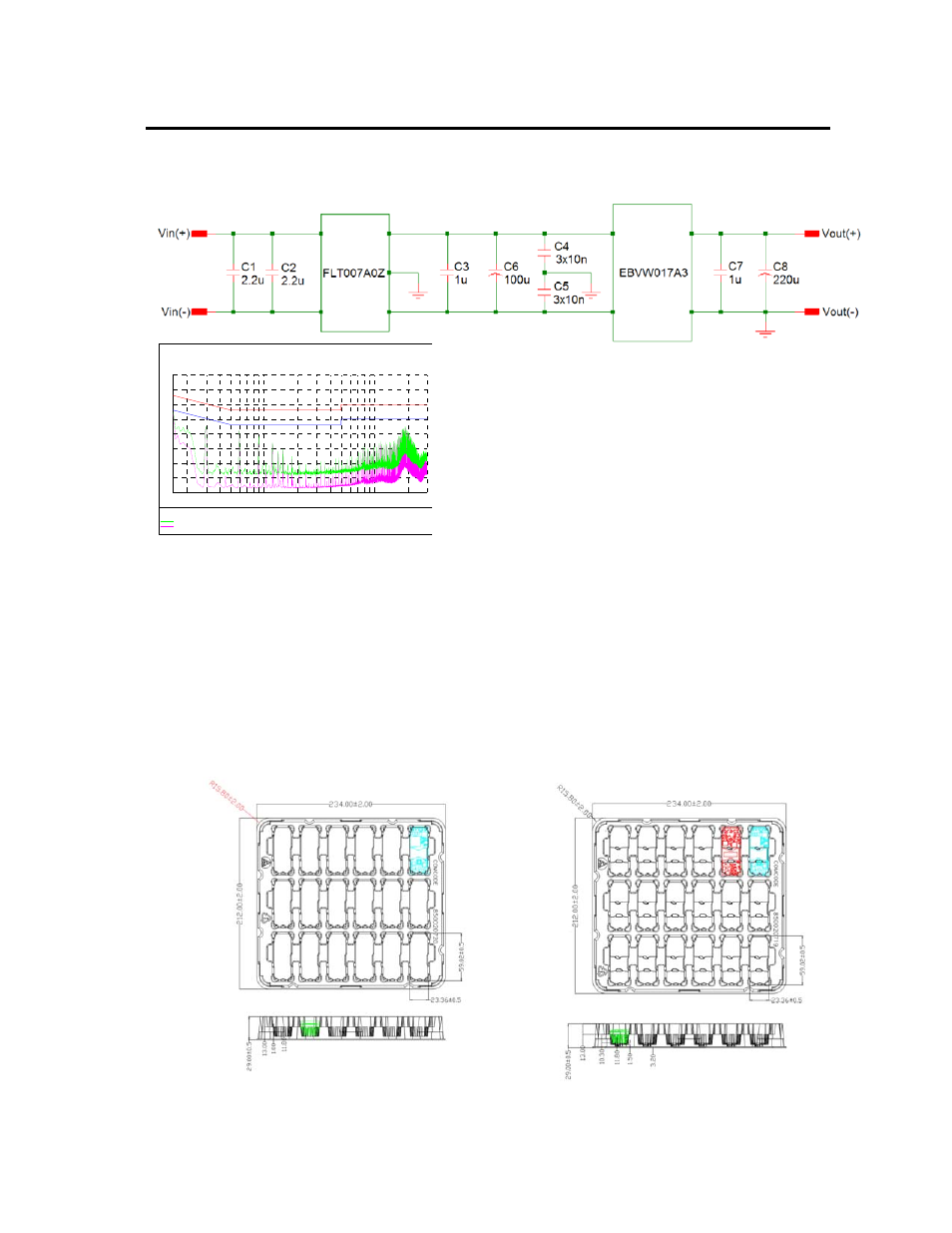

The circuit and plots in Figure 24 shows a suggested
configuration to meet the conducted emission limits of
EN55022 Class B. For further information on designing for
EMC compliance, please refer to the FLT007A0 data sheet.
Figure 24. EMC Considerations.
Packaging Details
All versions of the EBVW017A0S14R0 are supplied as
standard in the plastic trays shown in Figure 25.
Tray Specification
Material PET (1mm)
Max surface resistivity 10 9 -10 11 /PET
Color Clear
Capacity 18
power modules
Min order quantity 36 pcs (1 box of 2 full
trays + 1 empty top tray)
Each tray contains a total of 18 power modules. The
trays are self-stacking and each shipping box for the
EBVW017A0S14R0 module contains 2 full trays plus
one empty hold-down tray giving a total number of 36
power modules
Open Frame Module Tray Base Plate Module Tray
Figure 25. EBVW020 Packaging Tray
