Pro Series 30118 20K FIFTH WHEEL - Manual (Page 11)

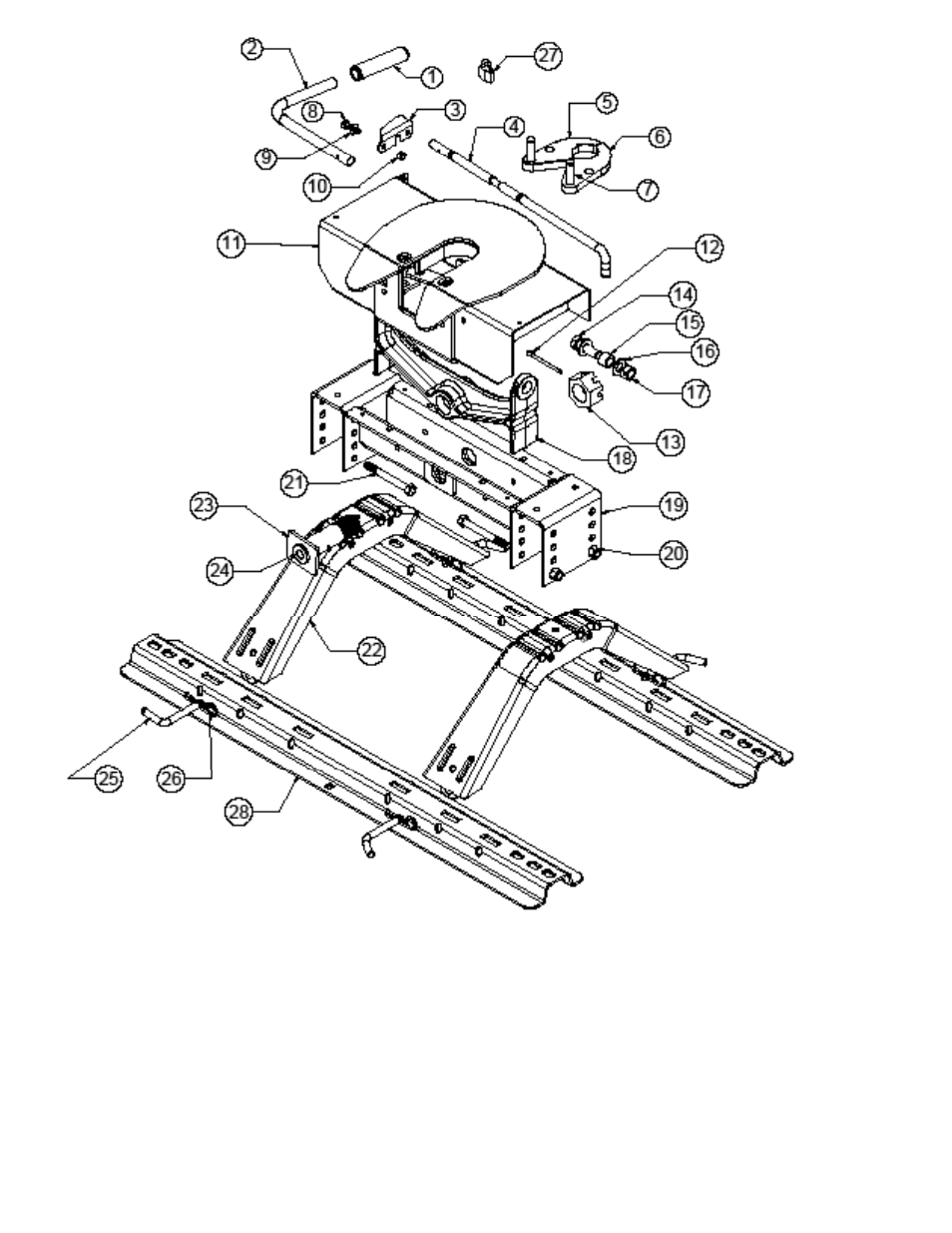

Fig. 20
PCS
1. HANDLE GRIP (1)
2. TUBE HANDLE (1)
3. LATCH (1)
4. ACTUATING HANDLE (1)
5. LEFT JAW (1)
6. RIGHT JAW (1)
7. PIVOT PIN (2)
8 3/8-16 x 1-1/4” BOLT (1)
14. 5/8-11 x 2 BOLT (2)
15. BUSHING (2)
16. 5/8” FLAT WASHER (4)
17. 5/8-11 LOCKNUT (2)
18. PIVOT BEAM (1)
19. HEAD SUPPORT (1)
20. ½-13 LOCKNUT (4)
21 ½-13 x 4-1/2” BOLT (4)
27. PAD LOCK (1)
28. BASE RAILS (SOLD SEPERATLEY)
PCS.
30118IN 29JULY09B PCN12190 ©2009 CEQUENT PERFORMANCE PRODUCTS PRINTED IN XXXX
8. 3/8 16 x 1 1/4 BOLT (1)
9. 3/8” FLAT WASHER (3)
10. 3/8-16 LOCKNUT (1)
11. HEAD ASSEMBLY (1)
12. COTTER PIN (1)
13. 1-1/2-12 NUT (1)
21. ½ 13 x 4 1/2 BOLT (4)
22. LEGS (SOLD SEPERATLEY) (2)
23. PIVOT PIN (1)
24. GREASE ZERK (1)
25. PULL PIN (4)
26. SPRING CLIP (4)
11
