Pro Series 49904 ROUND BAR WD - Manual

Equipment Required:
Wrenches: 9/16”, 3/4”, 1-1/8”
Drill Bits: 11/32”
Torque Wrench capable of reading 260 ft.-lbs.
© 2010 Cequent Performance Products
Sheet 1 of 24 49901IN 03/21/13 Rev. C
j

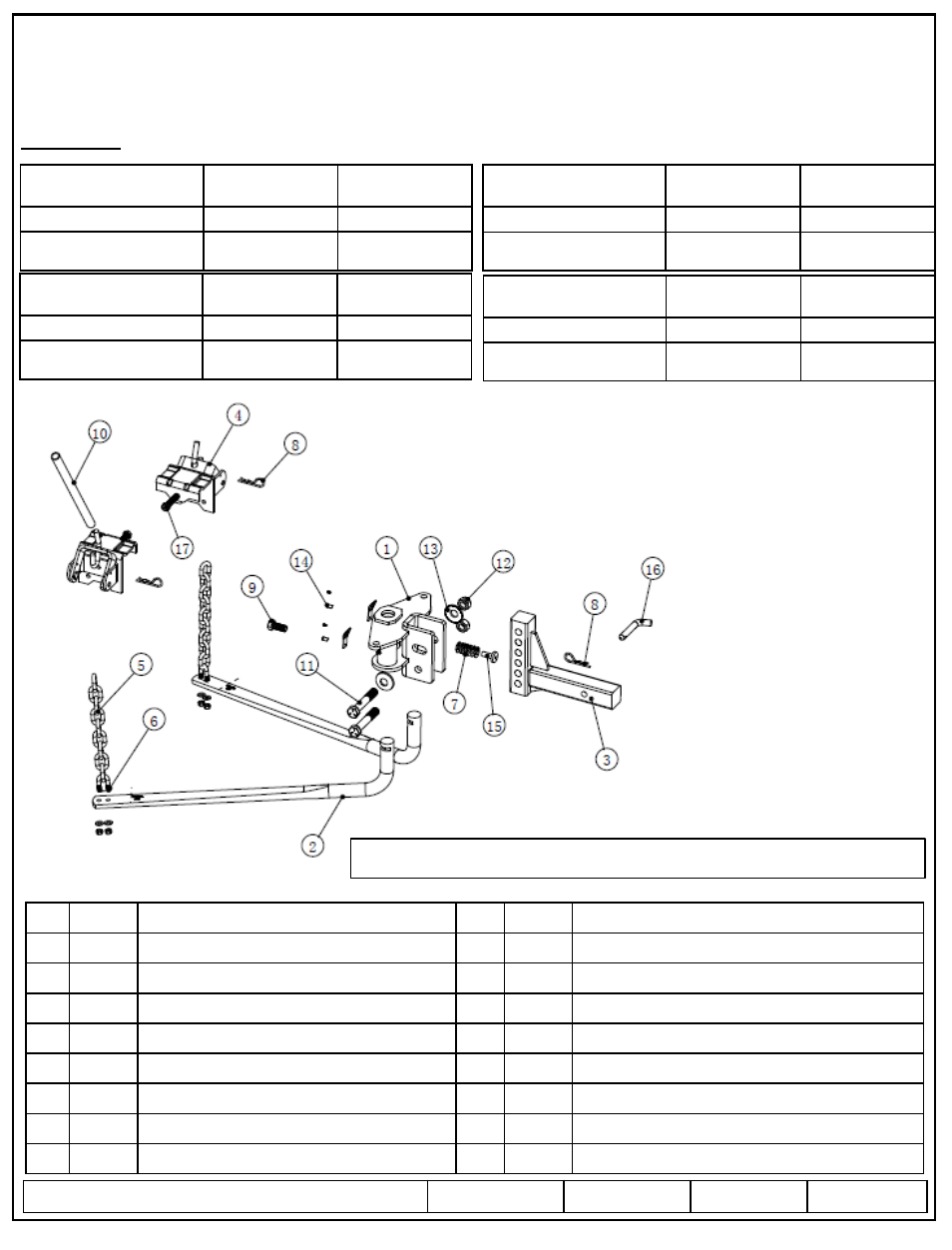

Qty. (1) BALL MOUNT
⑩
Qty. (1) LIFTER HANDLE
k
Qty. (2) SPRING BAR
⑪
Qty. (2) ¾”-10 X 4 ½” BOLTS
l
Qty. (1) HITCH BAR
⑫
Qty. (2) ¾”-10 NUT
m
Qty. (2) SNAPUP BRACKET
⑬
Qty. (2) ¾” CONICAL WASHER
n
Qty. (2) SAFETY CHAIN
⑭
Qty. (2) SPRING BAR LOCK ASSEMBLY
⑥
Qty. (2) 3/8” U-BOLT, NUT, & WASHER
⑮
Qty. (1) RIVET
⑦
Qty. (7) SPACER WASHER
⑯
Qty. (1) PULL PIN
⑧
Qty. (3) SPRING CLIP
⑰
Qty. (2) SNAP UP BRACKET SET SCREW
⑨
Qty. (1) SET SCREW
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Hitch Part Number
49901
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing 10,000 550
Weight Carrying
Ball Mount
5,000 500
Form: F205 Rev A 5-6-05
Hitch Part Number
49902
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing 10,000 750
Weight Carrying
Ball Mount
5,000 500
Hitch Part Number
49903
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing 10,000 1,000
Weight Carrying
Ball Mount
5,000 500
DEALERS: Please give these instructions to your customer.
For Installation Assistance or Technical Help, Call 1-888-521-0510
Installation Instructions
49901IN
Part Numbers:
49901 49902
49903 49904
Round Bar Weight Distribution With Sway Control
Printed in CHINA
Hitch Part Number
49904
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing 10,000 1,200
Weight Carrying
Ball Mount
5,000 500
