Pro Series 51190 51 Receiver - Manual

Installation Instructions
Toyota Camry
Toyota Camry Hybrid
Part Numbers:
51190
Do Not Exceed Lower of Towing Vehicle Drawbar Kit:
Fascia

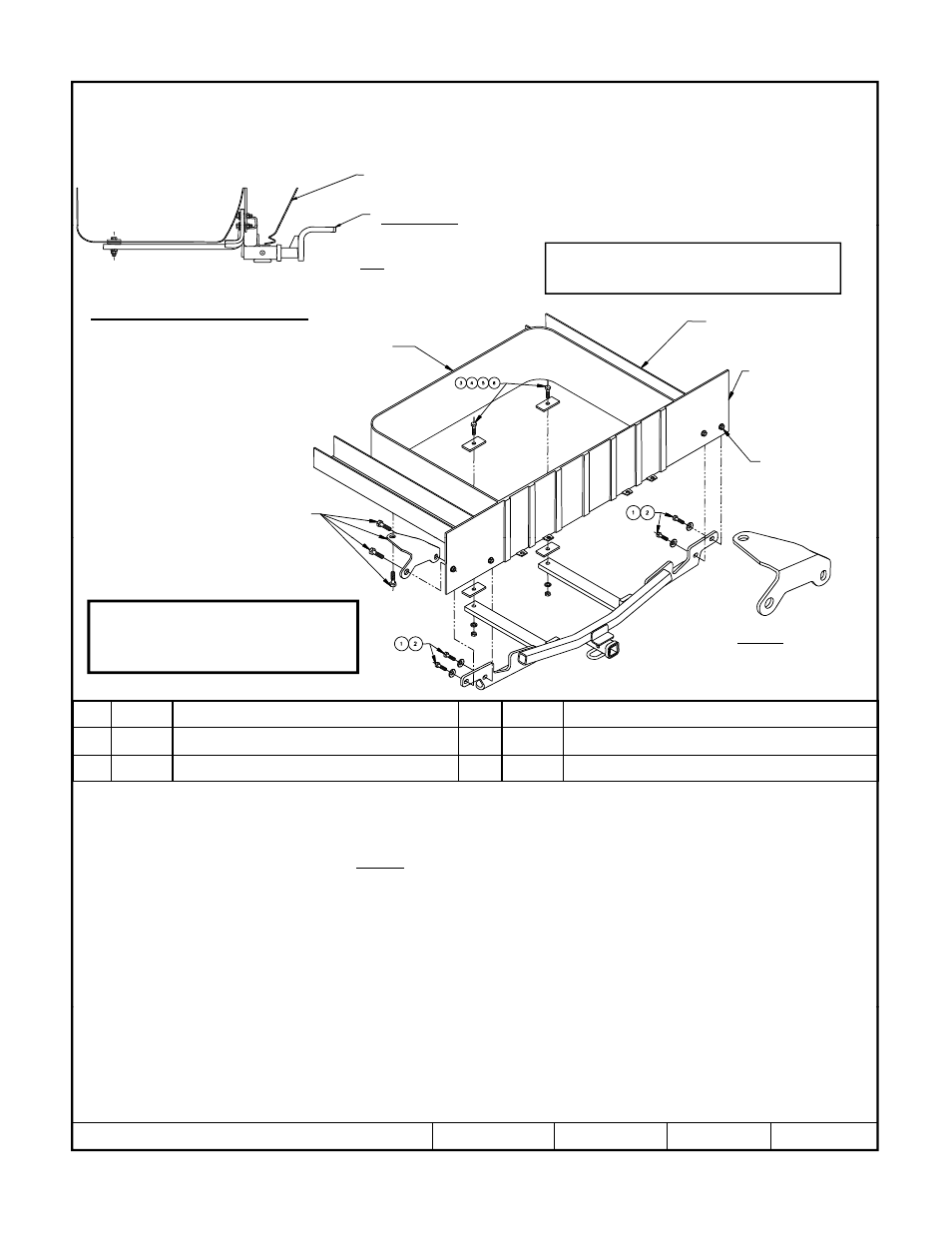

Hitch Shown In Proper Position
Wiring Access Location: PC3, PC4
Equipment Required:
Manufacturer’s Rating or
Drawbar must be used in the
Rise position only.
36071
Fastener Kit: 51190F
3500 lb, 1589 kg Max Gross Trailer Weight
300 lb, 136 kg Max Tongue Weight
Trunk Pan
Rear End Panel
Frame Rail
Wrenches: 10mm, 12mm, 14mm, 17mm
Drill Bits: 1/2”
Hitch Requires 1/2” pin and clip.
Existing
Weldnuts
Rear End Panel
Fastener and
bracket
Figure 2
Bracket Removed in
installation step 4.
location see
Figure 2.
Toyota Camry Hybrid:
Remove plastic fascia covering the side frame
rail of the vehicle. Return plastic fascia covering
and screws to vehicle owner
1. Remove spare tire from the inside of the trunk of the vehicle.
2. Lower vehicle exhaust by removing the rubber exhaust hangers.
3. Remove fascia rivets from the fascia tabs between the trunk pan of the vehicle and the rear fascia. If present, remove the
plastic under covering located under the trunk pan.
1 Qty. (4) M10 X 40 X 1.25 CL8.8 Hex Bolt 4 Qty. (4) Block 1/4 X 1.50 X 3.00
2 Qty. (4) 3/8” Conical Toothed Washer 5 Qty. (2) 1/2” Lockwasher
3 Qty. (2) 1/2-13 X 2.00 GR 5 Hex Bolt 6 Qty. (2) 1/2” Hex Nut
4. Remove the existing bracket shown in Figure 2 from the driver’s side vehicle frame rail and the rear end panel and return to
vehicle owner.
5. Raise hitch into position and install the M10 Hex bolts and the 3/8” conical toothed washers into the existing weldnuts in the
vehicle.
6. Using the hitch as a template, drill two holes through the trunk pan of the vehicle.
7. From the inside of the trunk, scrape the foam rubber material away from the inside surface of the trunk pan around the holes
drilled in step 5.
8. Install the 1/2” hex bolts, blocks, lockwashers and nuts as shown above.
9. Reinstall the spare tire inside the trunk.
10. Reattach the rubber exhaust hangers, and insert the fascia rivets back into to the fascia tabs removed in step 3.
Tighten all 1/2-13 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)
z 2009, 2011 Cequent Performance Products Sheet 1 of 3 51190N 2-28-11 Rev. B
Tighten all M10 CL8.8 fasteners with torque wrench to 42 Lb.-Ft. (57 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
