295
no dot1x timeout re-
authperiod
dot1x timeout tx-period
<seconds>
no dot1x timeout tx-period
Sets the interval for the supplicant to re-transmit EAP
request/identity frame; the no command restores the default
setting.
dot1x re-authenticate
[interface <interface-name> ]
Enables IEEE 802.1x re-authentication (no wait timeout
requires) for all ports or a specified port.
38.3 802.1x Application Example
38.3.1 Examples of Guest Vlan Applications
The Network Topology of Guest VLAN
Notes: in the figures in this session, E2 means Ethernet 1/2, E3 means Ethernet 1/3 and E6
means Ethernet 1/6.

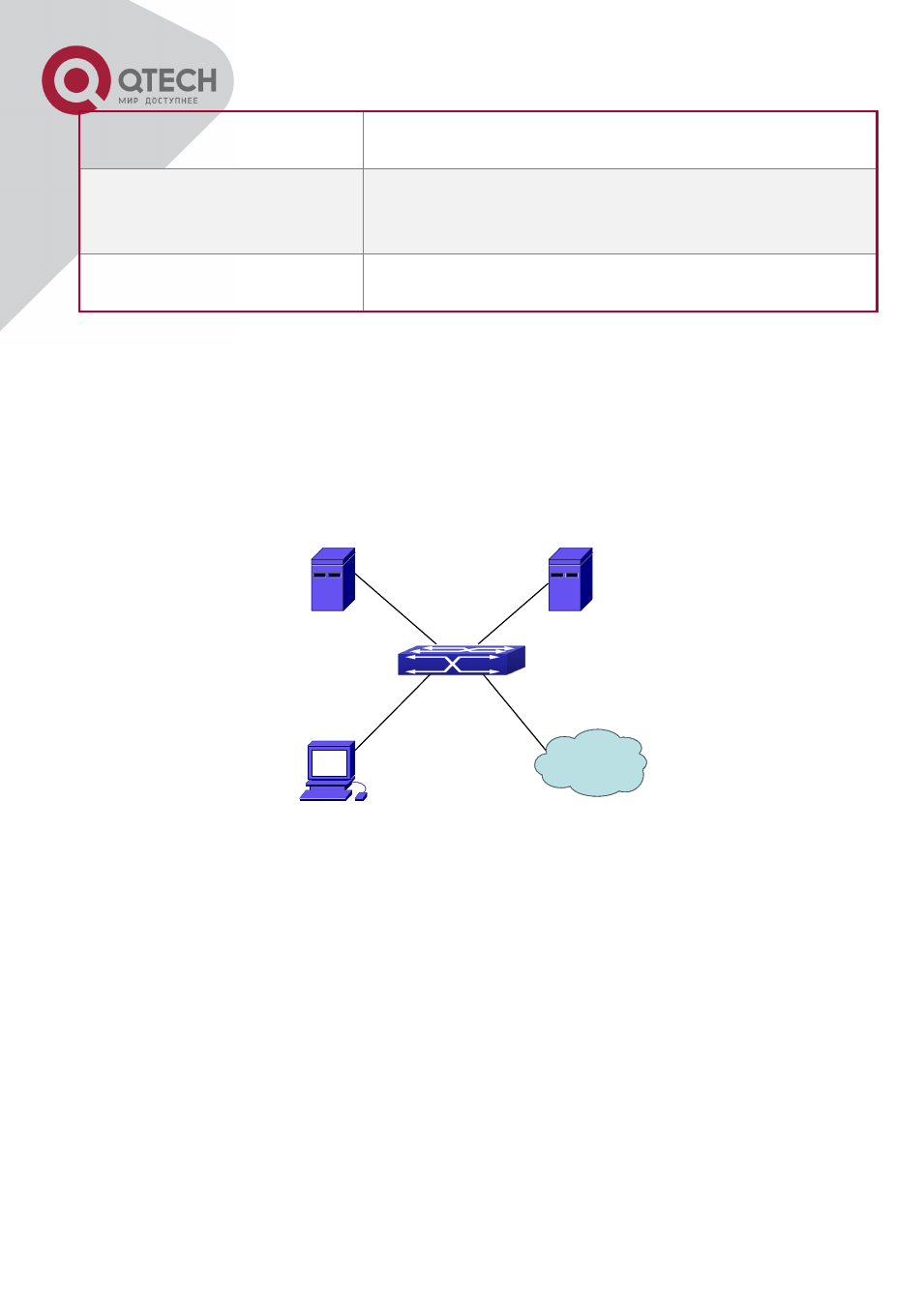

As showed in the next figure, a switch accesses the network using 802.1x authentication, with
a RADIUS server as its authentication server. Ethernet1/2, the port through which the user
accesses the switch belongs to VLAN100; the authentication server is in VLAN2; Update
Server, being in VLAN10, is for the user to download and update supplicant system software;
Ethernet1/6, the port used by the switch to access the Internet is in VLAN5.
Internet
SWITC
H
E2
VLAN10
0
E3
VLAN10
VLAN
2
Update server
Authenticator server
E6
VLAN
5
User
