S&B Filters Intake Elbow 6-1007 - Manual (Page 4)

ITEM QTY. DESCRIPTION P/N
A 2 Washer, Flat, 5/16” AI1073-00
B 1 Bolt, Hex, 5/16-18x1/2” AI1078-00
C 2 Nut, Hex, Nylock, 8mm AI1401-00
D 4 Washer, Flat, 8mm AI1402-00
E 2 Cap Screw, Socket, M8x90mm AI1424-00
F 1 Intake Elbow AL1174-00
G 8 Pipe Plug, 1/8”NPT AI1398-00
H 2 Stud, Double End, M8x85mm AI1408-00
I 2 Gasket, Flat, 4-Hole AI1532-00
J 2 Stud, Double End, M8x95mm AI1400-00
K 2 Nut, Hex, Jam, 8mm AI1405-00
L 1 Zip-Tie, Black, 11” AI1212-00
M 1 Rubber Washer AI1435-00
N 1 Loctite Thread Locker AI1406-00
O 1 Dip Stick Bracket AI1396-00
P 1 Screw, Pan, M6-1.0x20mm AI1091-00
Q 1 Nut, Hex, Nylock, 6mm AI1090-00
R 1 T-Bolt Clamp, 88.9mm-96.8mm AG1031-00
S 1 Silicone Hump Coupler, Bent AI1545-00
15461 Slover Ave., Fontana, CA 92337 - Phone: (909) 947-0015 - Fax: (909) 947-0603 - www.sbfilters.com

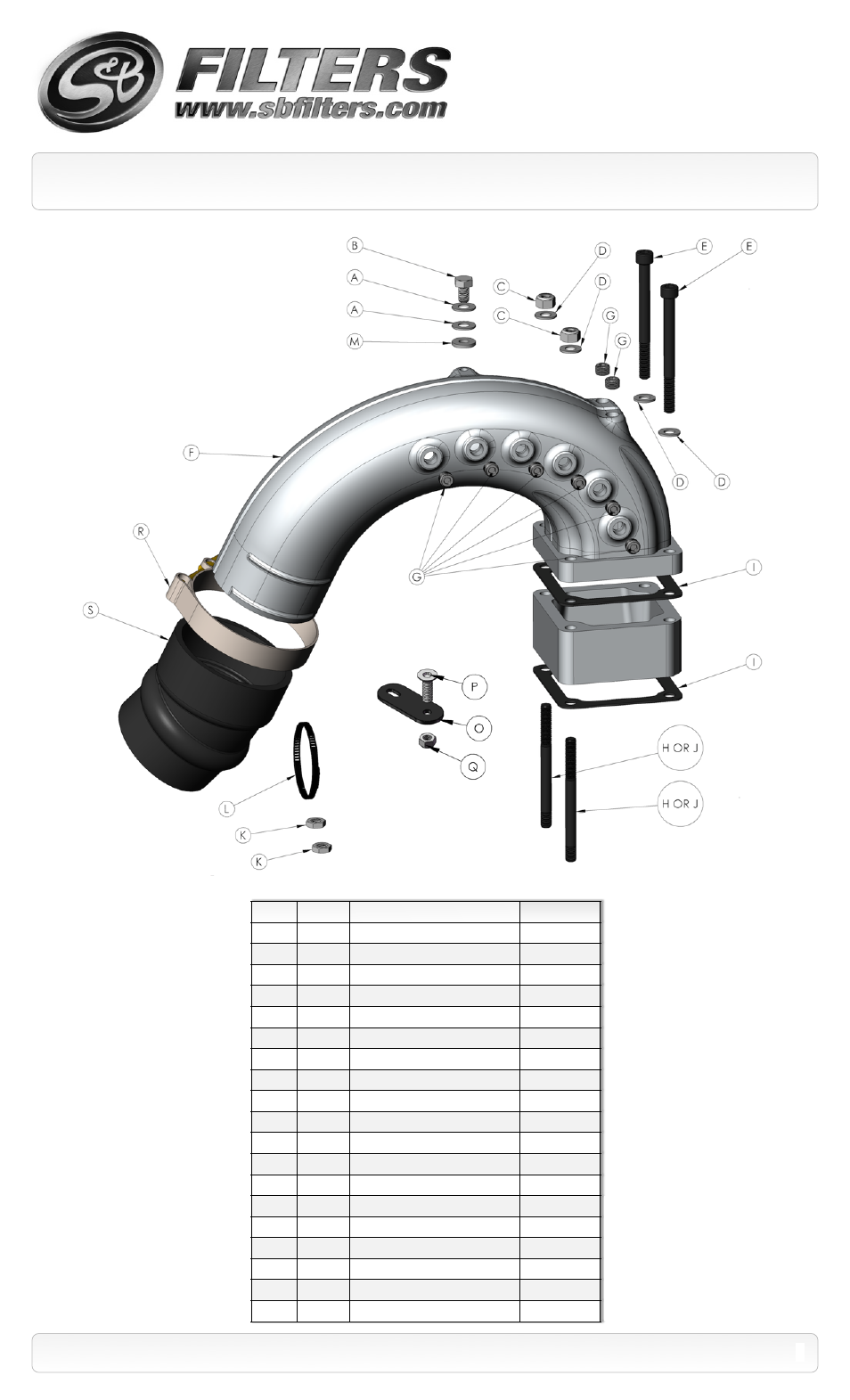

EXPLODED VIEW
AM0
1
7
9
-0
0
R
e
v.
A
0
4
/2
4
/1
2
4
P/N: 76-1007
OE Heater Block
or
S&B Heater Dele
te
