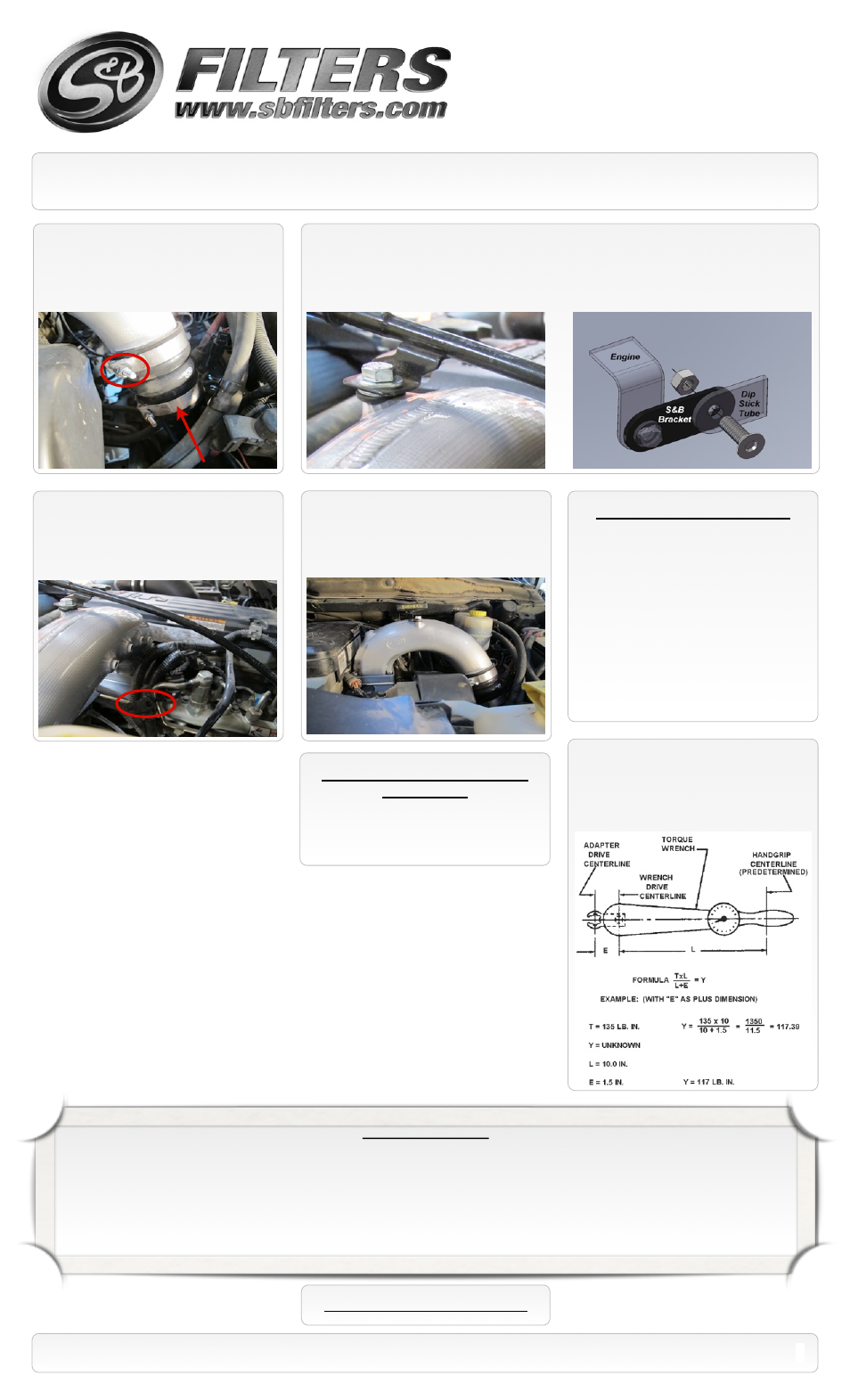

INSTALLATION INSTRUCTIONS (Continued)
PERFORMANCE TESTING
• Engage parking brake and start your engine.
Listen for abnormal noises. If an air leak is
detected, re-inspect hoses and connections as
they may need to be repositioned and
tightened.
• S&B FILTERS recommends that you keep
your OE intake elbow in the event it is
required in the future.
• In order to maintain your warranty, all
connections and components must be
checked periodically for alignment and for
proper tension on all connections. Failure to
do so may void your warranty.
SEE EXPLODED VIEW ON PAGE 4
3
P/N: 76-1007
RELATED ITEMS FOR YOUR
PURCHASE
• Cold Air Intake System (S&B P/N: 75-5044)
• Heater Delete Block (S&B P/N: 76-1005)
Crow Foot Calculation
NOTE: This is a calculation to adjust your
Torque Wrench for use with a Crow Foot
attached. Please note the end value will never
be higher than the original torque value.
19.
Slide the OE t-bolt clamp up onto the
Silicone adapter
(S)
and torque both T-bolt
Clamps to 90 In. lbs.
20.
Secure the dip stick tube upper bracket to the Elbow. Apply thread locker to the 5/16” x 1/2”
Bolt
(B)
. Then place the Flat Washer
(A)
on the 5/16” x 1/2” Bolt
(B)
. Place the bolt and washer
through the upper bracket and place the Rubber Washer
(M)
and the other Flat Washer
(A)
under
the bracket and thread the bolt into the elbow and secure. Do not exceed 30 In. lbs. Then tighten
the two bolts at the lower bracket.
21.
Use the supplied Zip-tie
(L)
to secure the
wiring harness behind the elbow that was
removed in Step #4.
22.
Reconnect both batteries. Inspect your
installation, make sure the kit is properly
positioned and all fasteners are secure. Affix
the CARB sticker near the intake kit. The
installation is now complete.
