Ups/inverters, Specification, Options – Powersolve C(AC) Series User Manual

Page 7

www.powersolve.co.uk

Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:01635 521858 Fax: 01635 523771 Email: [email protected]

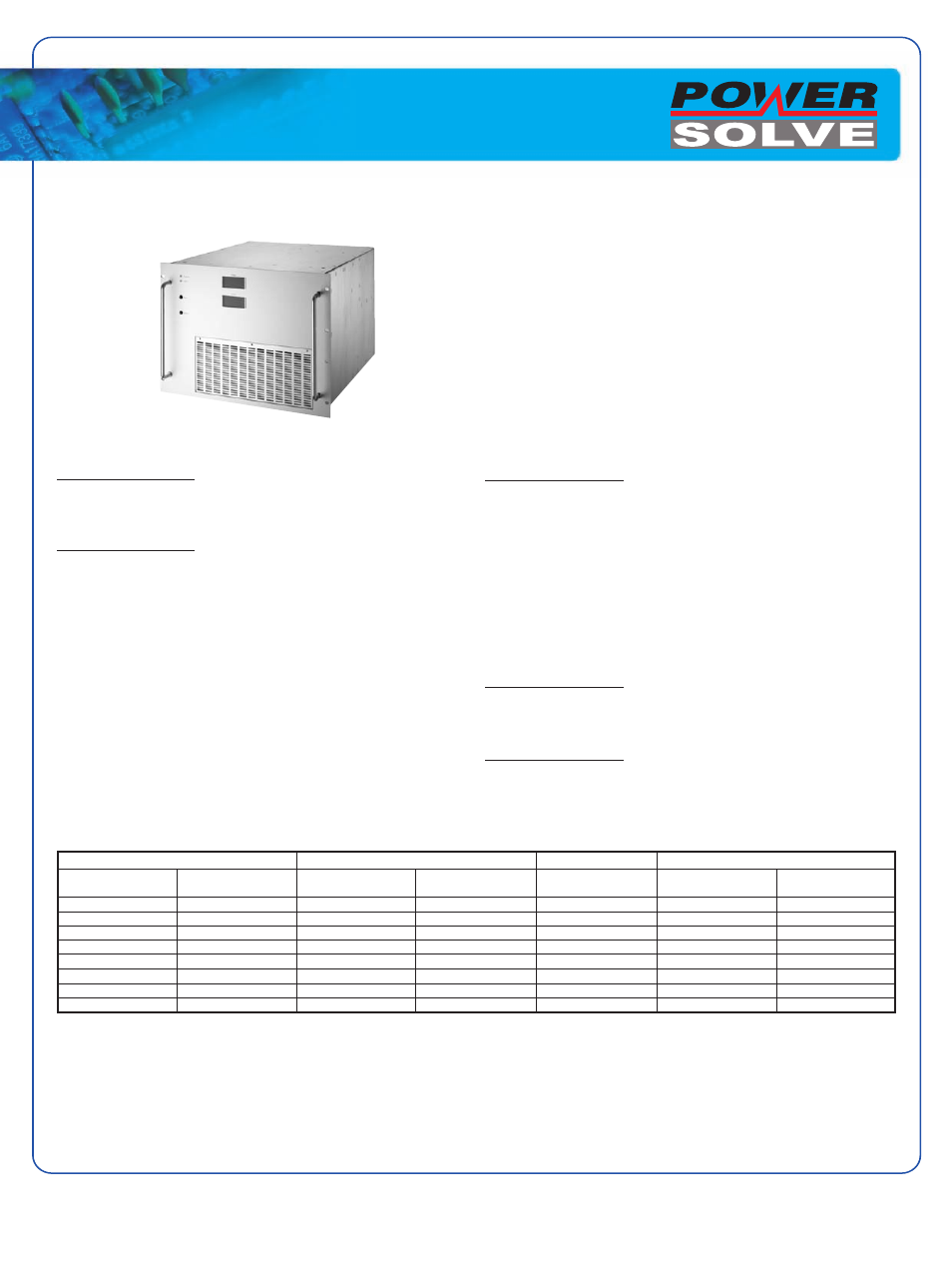

C640 Models, 22 kW PSU

Input VDC

Input VAC

Output VDC

320-640 VDC

450-800 VDC

3 x 400 VAC

3 x 480 VAC

Output

Minimum

Maximum

(320-460)

(400-530)

Current

C 6479 G

C 6479 K

C 6489 V

C 6499 V

360 A

C 6476 G

C 6476 K

C 6486 V

C 6496 V

320 A

C 6477 G

C 6477 K

C 6487 V

C 6497 V

170 A

100

130

C 6477 GJ

C 6477 KJ

C 6487 VJ

C 6497 VJ

110 A

190

200

C 6478 G

C 6478 K

C 6488 V

C 6498 V

88 A

200

250

C 6478 GJ

C 6478 KJ

C 6488 VJ

C 6498 VJ

55 A

380

400

C 6477 GH

C 6477 KH

C 6487 VH

C 6497 VH

36 A

570

600

C 6478 GH

C 6478 KH

C 6488 VH

C 6498 VH

27 A

760

800

•

High Power Density

•

45-800 Volts Output

•

19” Rack Mounting

•

Parallel Redundant Operation

•

Temperature Controlled Fans

Specification

Input

Input Voltage

• 320-800 VDC or 400/480 VAC

Input Frequency

• 47-440 Hz

Output

Output Voltage

• Up to 800 VDC

Output Current

• Up to 360 A

Output Power

• Up to 22 kW

Line Regulation

• 0.1%(±10%)

Load Regulation

• 0.2%(10-90%)

Ripple & Noise

• 0.5% rms

Overload Protection

• Current limited to 105%-110% of full load

Overvoltage Protecton

• OVP switches off module with automatic

return to operation

Remote Sense

• Up to 3 V per wire

General

Efficiency

• 90% typical

Input/Output

• Input to Output 3500 VDC

Isolation Voltage

Input to Earth 3500 VDC
Output to Earth 3500 VDC
Output to Earth <60-700 VDC
<60-250 V - 2100 VDC
>250 V - 3500 V DC

Connector

• Terminals/copper bars

Dimensions

• 8U x 19” x 600mm (355 x 483 x 600 mm)

Weight

• 90 kg

Environmental

Operating Temperature • -10 °C to +50 °C

Storage Temperature

• -40 °C to +85 °C

EMC & Safety

Emissions

• EN55022, Class A

EFT/Burst

• EN61000-4-4 Level 3

Surges

EN61000-4-5 Level 3

Safety

• EN60950, Class 1

Notes:
1. For input voltage <400 VDC output power available reduces by 20%.

Options

• Inrush current limiting
• Input polarity protection for DC input
• Output decoupling diode for redundant/parallel operation

(depending on output current)

• Active current sharing for parallel operation
• Remote ON/OFF (inhibit)

• Monitoring of input and output voltage
• Output programmable via analogue signal
• RS232 or IEEE488 interface
• Automatic/manual selection of charging voltage
• Digital V- and A- meter
• Tropical protection

UPS/INVERTERS
