C5800 Models, 12000 Watt (6/9U x 19” x 360/460 mm, up to 65 kg)
Input VDC Input VAC Output VDC
80-160 160-320 320-640 450-800 Output 3 x 200 3 x 480 Min Max
Current 160-230 400-530
C 5854 C 5874 C 5874 G C 5874 K 400 A C 5864 V C 5894 V 23 26
C 5855 C 5875 C 5874 G C 5875 K 400 A C 5865 V C 5895 V 26 30
C 5859 C 5879 C 5874 G C 5879 K 220 A C 5869 V C 5899 V 45 55
C 5856 C 5876 C 5874 G C 5876 K 180 A C 5866 V C 5896 V 58 68
C 5857 C 5877 C 5874 G C 5877 K 92 A C 5867 V C 5897 V 100 130
C 5858 C 5878 C 5874 G C 5878 K 48 A C 5868 V C 5898 V 200 250
Option Series Width Height Depth
W1
300
140 mm 220 mm 180 mm
500
1300 (1)
W1a
1500 ( 1)
140 mm 300 mm 260 mm
3500 ( 1)
3700 (1)
1200
1300
W1b 1500 140 mm 360 mm 260 mm
3500
3700
W1c 4700 140 mm 360 mm 340 mm
Option Series Width Height Depth
W2
600
220 mm 220 mm -
2600
W3 3600 220 mm 360 mm -
W4
3800
280 mm 360 mm -
4800
Option Series Width Height Depth
W5a 500 mm 400 mm -
W5b 5000 500 mm 600 mm -
W5c 500 mm 800 mm -
Angles Plates Plates
Notes:
1. Single phase input versions available - contact Sales Office.

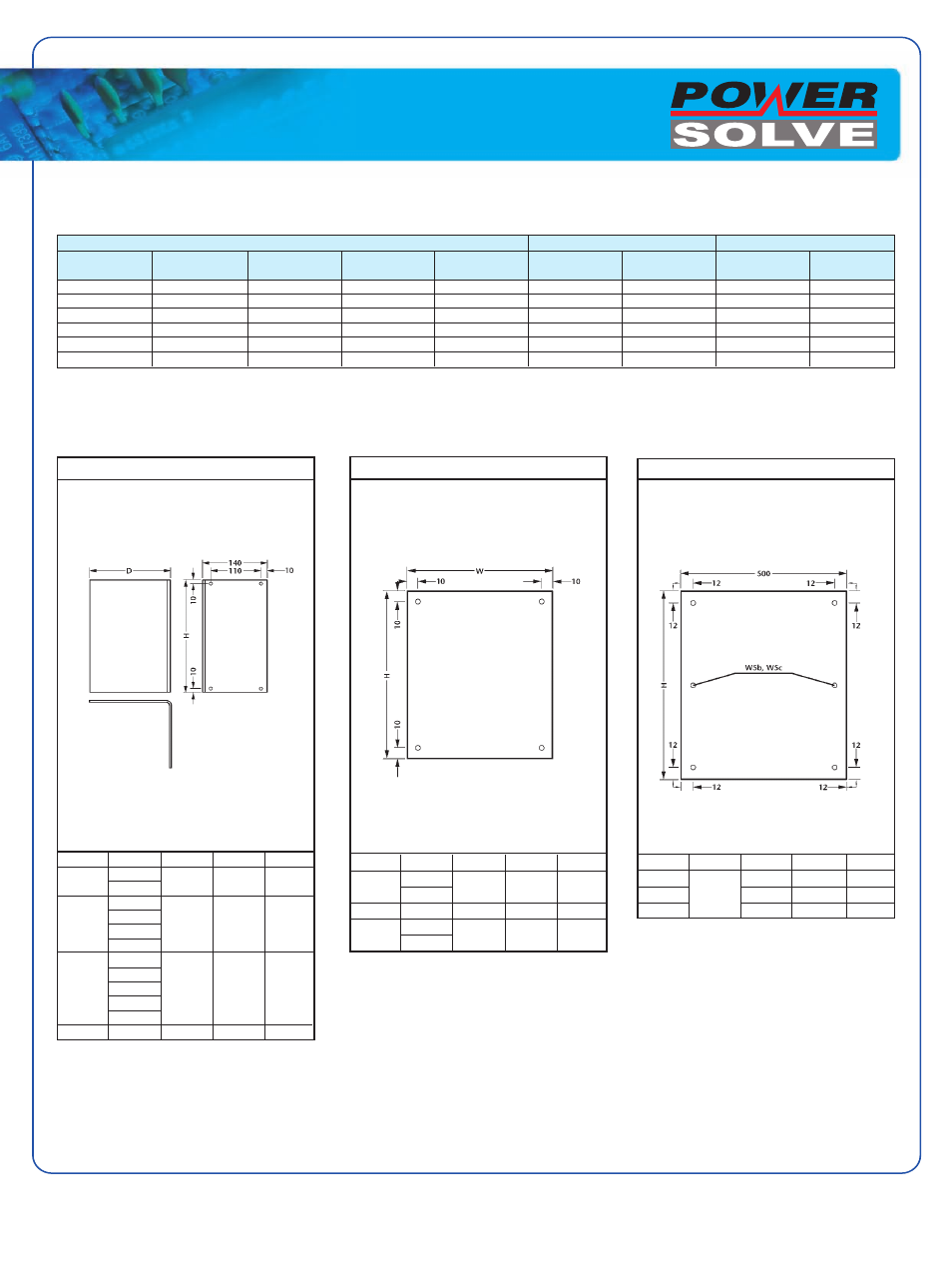

Wall Mounting Options
Notes:
1. No space available for conductor underneath module.
2. The size of the module plate depends on model size and output power, and on any additional equipment to be included - contact Technical Sales.
