SM3300 INTERFACES
Nov.2012, Preliminary version SPECIFICATIONS Page 1 - 3

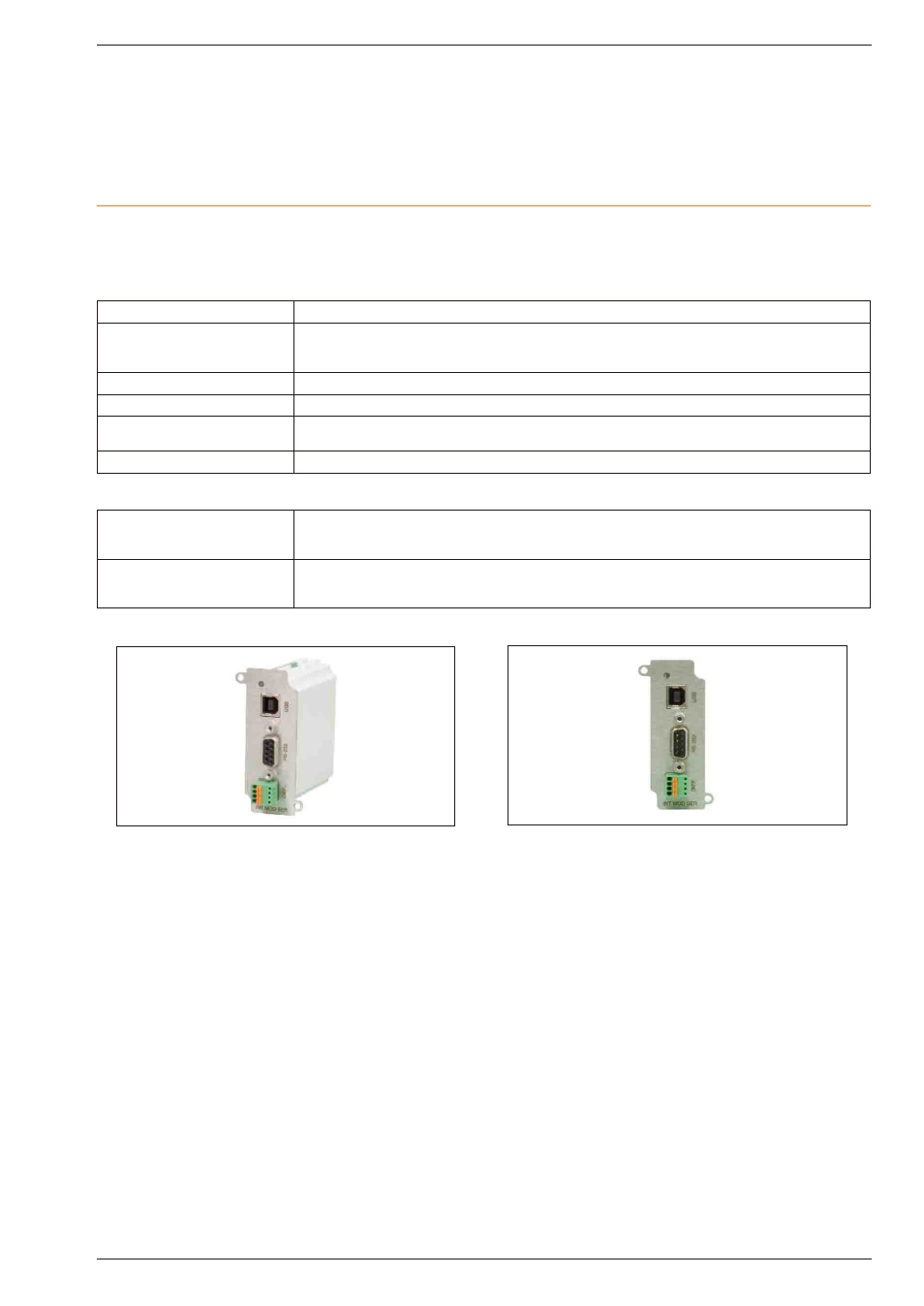

Serial interface (multi-protocol)
Specifications
Typical Applications
• RS232 Programming • USB Programming
• Balanced RS422 Programming • Balanced RS485 Bi-directional Programming
Com mu ni ca tion speeds (bps) 2400, 4800, 9600, 19200, 38400, 57600, 115200
In su la tion
prog. con nec tors - in ter nal cir cuits
prog. con nec tors - earth
1000 VDC Re in forced iso la tion acc. EN60950-1 / EN61010-1
max. 60VDC
Safety EN 60950 / EN 61010
Op er at ing Tem per a ture − 20 to + 50 °C
Hu mid ity max. 95% RH, non con dens ing, up to 40 °C
max. 75% RH, non con dens ing, up to 50 °C
Stor age tem per a ture − 40 to + 85 °C
Mount ing Pluggable, SM3300 in ter face slots 1, 2, 3 and 4.
See para graph 'Hard ware In stal la tion' in this man ual.
Max i mum 4 per unit.
Pro gram ming con nec tor RS422 & RS485 wires via push wire or so-called push in con nec tor (con tra header sup plied)
RS232 via 9 pole D-con nec tor (fe male),
USB socket type B.
