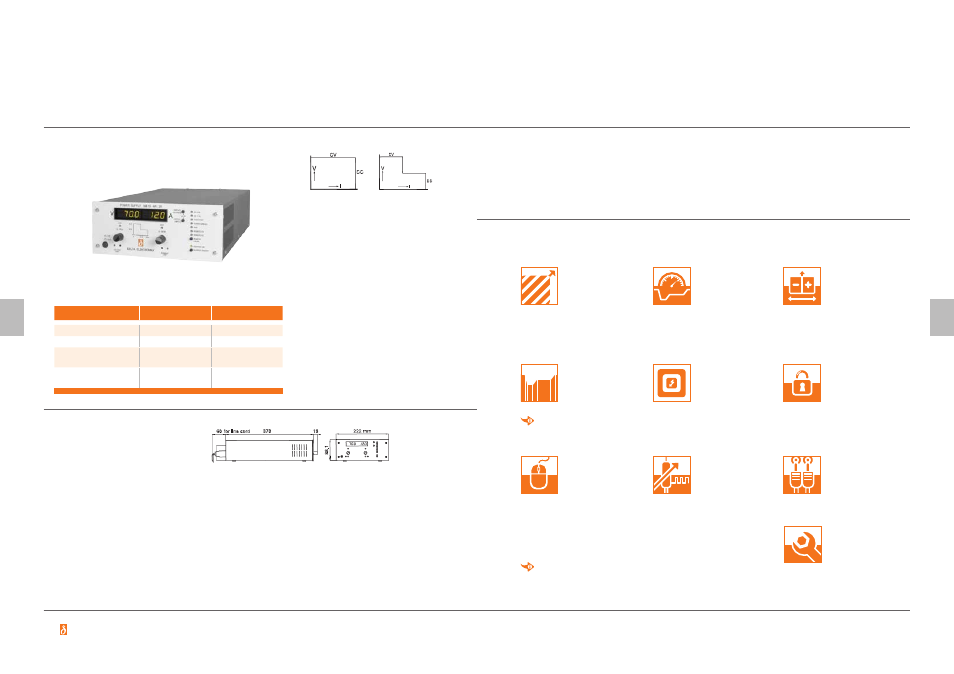

SM800 Series
800 W dC PoWer SUPPlieS
Features
•
Designed for long life at full power
•
Excellent dynamic response to load changes
•
Protected against all overload
and short circuit conditions
•
EMC surpasses CE requirements:
low emission & high immunity
•
Low audible noise: fan is
temperature controlled
Units Voltage range Current range
SM 7.5 - 80 0 - 7.5 V 0 - 80 A
SM 18 - 50 0 - 18 V 0 - 50 A
SM 70 - AR - 24
Autoranging output 0 - 35 V
0 - 70 V 0 - 24 A
0 - 12 A
SM 400 - AR - 4
Autoranging output 0 - 200 V
0 - 400 V 0 - 4 A
0 - 2 A
Specifications
•
Single phase input : 90-265 V AC (48-62 Hz)
•
Active Power Factor Correction (PFC) : 0.99 (at 100% load)
•
Efficiency : up to 89% (at full load)
•
Output ripple and spikes : from 2 mV
rms
/ 8 mV
pp •
Regulation : from 0.2 mV (0-100% load step)
•
Recovery time : from 100 µs (50-100% load step)
•
Programming speed : from 4 ms (10-90%), optional from 0.2 ms
•
Analog programming accuracy : from 0.2%
•
Output voltage and current stability : 6.10 -5 / 9.10 -5
•
MTBF : 500.000 hrs
•
Operating ambient temperature : -20 to +50 °C
Functionalities
•
Master / Slave parallel and series operation
with voltage and current sharing
•
Stacking is allowed , space
between units is not required
•
High power system configuration
from multiple units
•
Laboratory use (feet included),
19” rack mounting optional
•
Remote sensing
•
Interlock
Standards
•
Power supply standard EN 61204-3
•
Generic Emission EN 61000-6-3 (EN 55022B)
•
Generic Immunity EN 61000-6-2
•
Safety EN 60950 / EN 61010
•
Insulation input / output 3750 V
rms •
Enclosure IP20
Typical Applications
•
Accurate current sources
•
Electronic circuit development
•
Component device testing
•
ATE in industrial production lines
•
Automotive battery simulation
•
Controlled battery (dis)charging
•
Lasers
•
Driving PWM-controlled DC-motors
•
Medical research equipment
•
Aerospace and military equipment
Width = half 19”
Height = 2 U Weight = 5,4 kg
Dimensions and Weight
SM800 Series aPPliCationS & oPtionS
Available Options
Increased
Output Power
The conservatively rated
unit allows to deliver
extra output power with
the same reliability.
At some derating, either the maximum
output voltage or the maximum output
current can be increased by about 10%.
Increased Power Output
High Speed
Programming
A 10 to 20 times
higher programming
speed (down to 0.2 ms
rise time at full load)
and lower output capacitance.
Excellent for laser applications, test systems
or as current source with low parallel
capacitance as used in plasma chambers.
High Speed Programming
0,4ms
Two-Quadrant
Output: Power Sink
Two quadrant operation
maintains the output
voltage constant regardless
the output power is
positive or negative. Ideal for PWM-speed
controlled DC-motors and ATE systems.
Two-Quadrant Output:
Power Sink
Software Control
and Interfaces
Factory installed
programming interfaces:
•
Ethernet controller (incl. sequencer)
•
PROFIBUS controller
•
CANBUS controller
•
RS232 controller
•
IEEE488 controller
•
ISO AMP CARD – isolated analog
Software Control
& Interfaces
Sequencer
Arbitrary Waveform
generator or stand-
alone automation.
The sequencer is integrated
in the Ethernet controller.
Sequencer
Digital Voltage and
Current Setting
Reliable, longlife digital
encoders are implemented
at the front panel.
Includes total front panel
lock (also for CV / CC-knobs) and a coarse
or fine pitch adjustment depending on the
turning speed.
Digital Encoders
Secured Voltage and
Current Setting
For maximum security, the
CV / CC settings can be
adjusted with a screwdriver
only and are protected
with a plastic cap from accidental adjusting.
Secured Voltage and
Current Setting
High Voltage Isolation
A higher output isolation
allows series operation
up to 1000 V.
High Voltage Isolation
More information about this:
Page 22
Front Power Output
Bind posts at the front
panel instead of at
the rear panel.
Front Connection
19” Rack
Mounting Adapter
The 19” mounting adapters
makes it possible to
position one or two units
side by side in a 19” rack.
19” Rack Mounting Adapter
Details about interfaces:
Page 22-24
