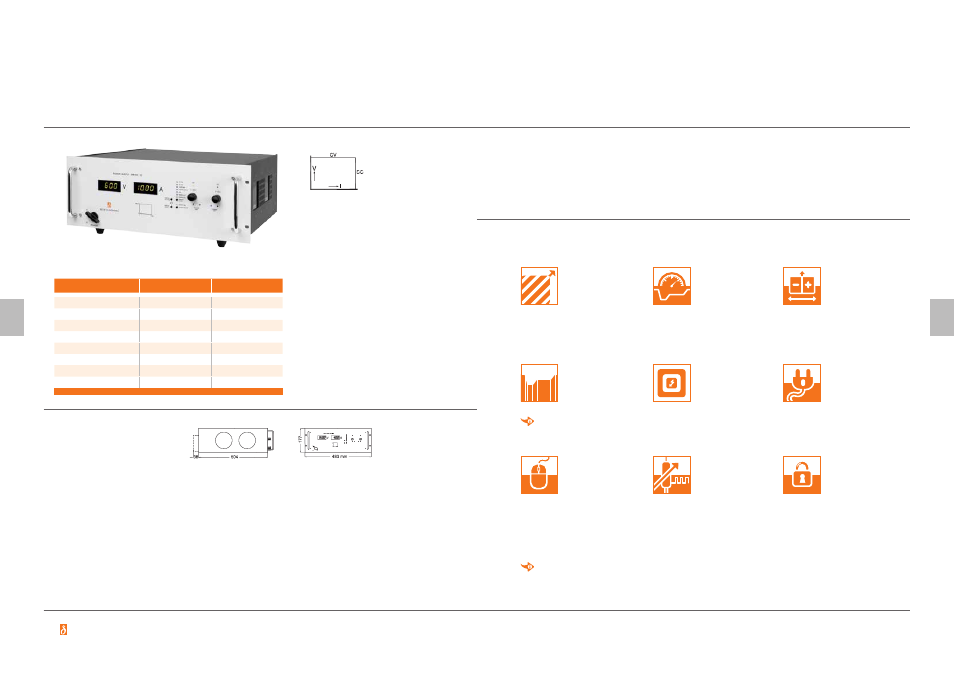

SM6000 Series
6000 W dC PoWer SUPPlieS
Features
•
Designed for long life at full power
•
Excellent dynamic response to load changes
•
Protected against all overload and short circuit
conditions
•
EMC surpasses CE requirements:
low emission & high immunity
•
Low audible noise: fan is temperature con-
trolled
Units Voltage range Current range
SM 15 - 400 0 - 15 V 0 - 400 A
SM 30 - 200 0 - 30 V 0 - 200 A
SM 45 - 140 0 - 45 V 0 - 140 A
SM 60 - 100 0 - 60 V 0 - 100 A
SM 70 - 90 0 - 70 V 0 - 90 A
SM 120 - 50 0 - 120 V 0 - 50 A
SM 300 - 20 0 - 300 V 0 - 20 A
SM 600 - 10 0 - 600 V 0 - 10 A
Specifications
•
Three phase input : 380 / 400 / 415 V AC, optional 440 / 480 V AC
V
nom.
line to line (48-62 Hz)
•
Active Power Factor Correction (PFC) : 0.98 (at 100% load)
•
Efficiency : up to 90% (at full load)
•
Output ripple and spikes : from 0.8 mV
rms
/ 8 mV
pp •
Regulation : from 2.5 mV (0-100% load step)
•
Recovery time : from 100 µs (50-100% load step)
•
Programming speed : from 3.3 ms (10-90%), optional from 0.4 ms
•
Analog programming accuracy : from 0.2%
•
Output voltage and current stability : 5.10 -5 / 10.10 -5
•
MTBF : 500.000 hrs
•
Operating ambient temperature : -20 to +50 °C
Functionalities
•
Master / Slave parallel and series operation with
voltage and current sharing
•
Stacking is allowed, space between units is not
required
•
High power system configuration from
multiple units
•
19” rack mounting or for laboratory use
(feet included)
•
Remote sensing
•
Interlock
Standards
•
Power supply standard EN 61204-3
•
Generic Emission EN 61000-6-3 (EN 55022B)
•
Generic Immunity EN 61000-6-2
•
Safety EN 60950 / EN 61010
•
Insulation input / output 3750 V
rms •
Enclosure IP20
•
cTÜVus
Typical Applications
•
Solar Inverter testing, PV-simulation
•
Plasma chambers
•
Hybrid car test systems
•
ATE in industrial production lines
•
Automotive battery simulation
•
Controlled battery (dis)charging
•
Lasers
•
Driving PWM-controlled DC-motors
•
Accurate current sources
•
Aerospace and military equipment
Width = 19”
Height = 4 U Weight = 27 kg
Dimensions and Weight
SM6000 Series aPPliCationS & oPtionS
Available Options
Increased
Output Power
The conservatively
rated unit allows to deliver
extra output power with
the same reliability.
At some derating, either the maximum
output voltage or the maximum output
current can be increased by about 10%.
Increased Power Output
High Speed
Programming
A 10 to 20 times higher
programming speed
(down to 0.4 ms rise
time at full load) and
lower output capacitance.
Excellent for laser applications, test sys-
tems or as current source with low parallel
capacitance as used in plasma chambers.
High Speed Programming
0,4ms
Two-Quadrant
Output: Power Sink
Two quadrant operation
maintains the output
voltage constant regard-
less the output power is
positive or negative. Ideal for PWM-speed
controlled DC-motors and ATE systems.
Two-Quadrant Output:
Power Sink
Software Control
and Interfaces
Factory installed
programming interfaces:
•
Ethernet controller (incl. sequencer)
•
PROFIBUS controller
•
CANBUS controller
•
RS232 controller
•
IEEE488 controller
•
ISO AMP CARD – isolated analog
Software Control
& Interfaces
Sequencer
Arbitrary Waveform
generator or stand-
alone automation.
The sequencer is integrated
in the Ethernet controller.
Sequencer
Digital Voltage and
Current Setting
Reliable, longlife digital
encoders can be imple-
mented at the front panel.
Includes total front panel
lock (also for CV / CC-knobs) and a coarse
or fine pitch adjustment depending on the
turning speed.
Digital Encoders
Secured Voltage and
Current Setting
For maximum security, the
CV / CC settings can be
adjusted with a screwdriver
only and are protected
with a plastic cap from accidental adjusting.
Secured Voltage and
Current Setting
High Input Voltage
Higher input voltages
possible for opera-
tion at line voltages of
440 V AC and
480 V AC (for USA).
High Input Voltage
High Voltage Isolation
A higher output isolation
allows series opera-
tion up to 1200 V.
High Voltage Isolation
More information about this:
Page 22
Details about interfaces:
Page 22-24
