Powersolve Xi Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Uninterruptible Power Supplies
Input Voltage (full load 115VAC version: 80-138VAC / 208VAC version: 176-276VAC / 230VAC version: 176-276VAC
without using batteries)
Input Frequency
46-64Hz
Input Power Factor >0.98 at full load
Input Protection Fuse/Breaker (see notes on next page)
Output Voltage 115VAC nominal - 100/110/115/120VAC selectable
208VAC nominal - 208/220/230/240VAC selectable
230VAC nominal - 208/220/230/240VAC selectable
Output Regulation ±2% of nominal
Output Waveform Sine Wave
Output THD <3% linear load
Crest Factor 3:1
Output Protection Electronic Overload Protection (ultimately by fuse/breaker)
Efficiency (AC-AC) 86% up to 1.5kVA, 90% up to 6kVA
Overload Capacity See Overload Characteristics
Output Frequency 50/60Hz dependant on input
Internal Battery Type VRLA 5 year design life. For 10 year option add suffix ‘X’ to model number
Battery Replacement Hot-swap all models
Recharge <4 hours to 90%, standard battery only
Battery String Voltage 48VDC: 1.5kVA, 96VDC: 2.5kVA-3.0kVA, 192VDC: 4.0kVA-6.0kVA
Autonomy See Tables
Temperature Autonomy, recharge & battery life based on 25°C ambient
Input Receptacles See rear panel drawings
Output Receptacles See rear panel drawings
Display/Alarm Front panel LED menu driven, audible alarms. See front panel layout
Interface (Rear Panel) 1 x RS232 & 1 x USB (fitted in option slot)
Software Supplied bundled to support Windows 95, 98, ME, 2000, XP & NT
Fitted Fuse/Breaker Xi1000/Xi15000 - 10A, Xi2500/Xi3000 - 15A, Xi4000/Xi6000 - 30A, Xi1500L CE - 15A,
Xi1500L - 15A, Xi3000L(208VAC) - 15A, Xi3000L 120 - 30A, Xi6000L - 32A
REPO Remote emergency power off, must be fitted for unit to function. Connector on rear of unit. Remove
link to shut down output in AC mode or shut down unit in battery mode
Operating Temperature 0°C to +40°C
Storage Temperature -15°C to +50°C
Operating Humidity 0-95% RH non-condensing
Operating Altitude 3000m without derating
Acoustic Noise <45dBA at 1 metre
Ingress IP20
Emissions EN55022 level B, EN50091-2 level B
ESD Immunity EN61000-4-2, level 3
Radiated Immunity EN61000-4-3, level 2
EFT/Burst EN61000-4-4, level 2
Surge EN61000-4-5, level 3
Safety Approvals EN50091-1-1, EN60240-1-1, EN60950, CE, L versions: UL1778
Electrical Specification

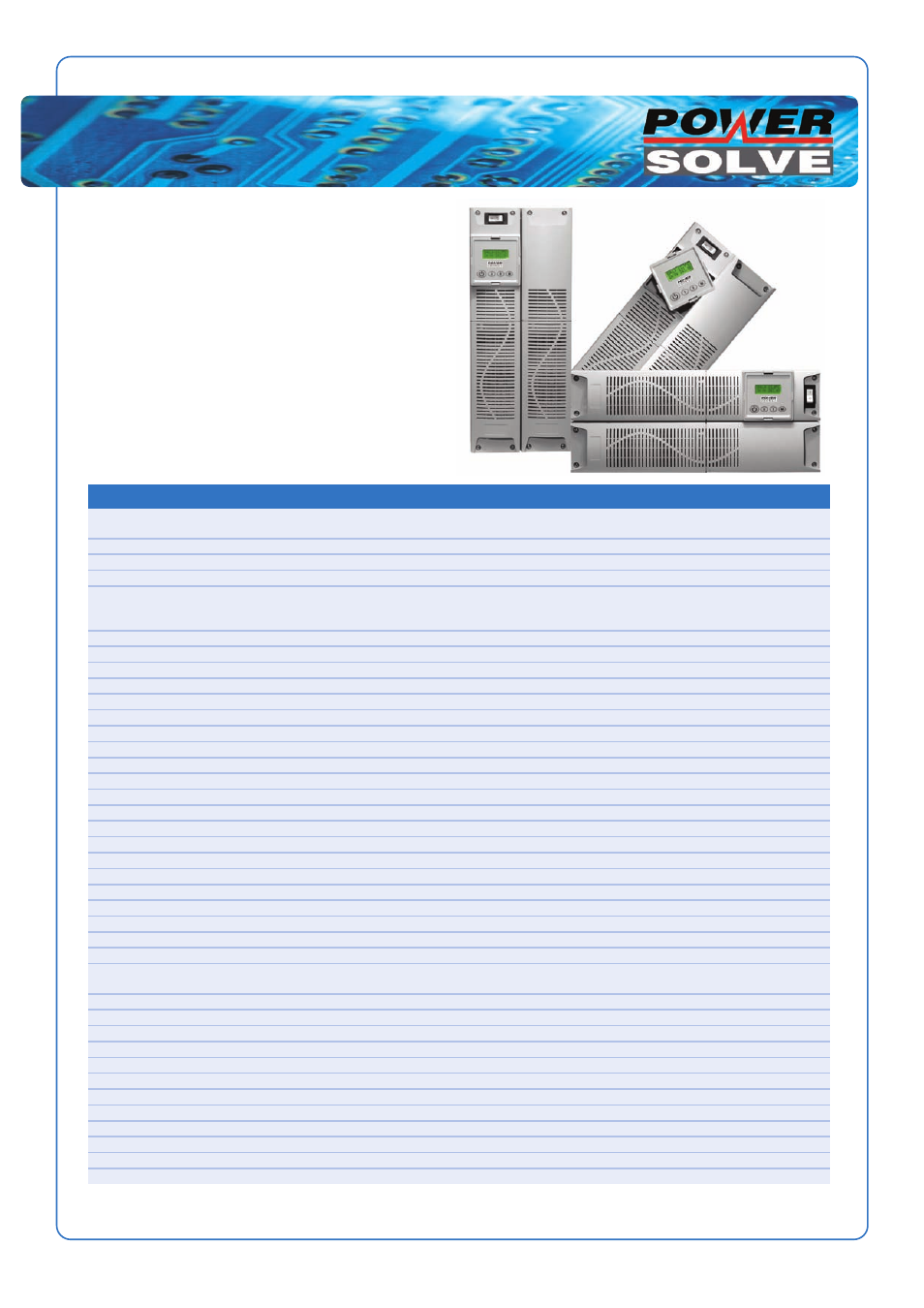

Xi Series
1-6kVA
True On-Line UPS
Features
• Rack-Mount/Standalone Format
• Universal Battery Design (Optional 10 year batteries)
• Dual Mains Input
• Dual Position Backlit LCD
• LCD Load Segment Control 2.5kVA & 3.0kVA
(European Models)
www.powersolve.co.uk
