MP Series

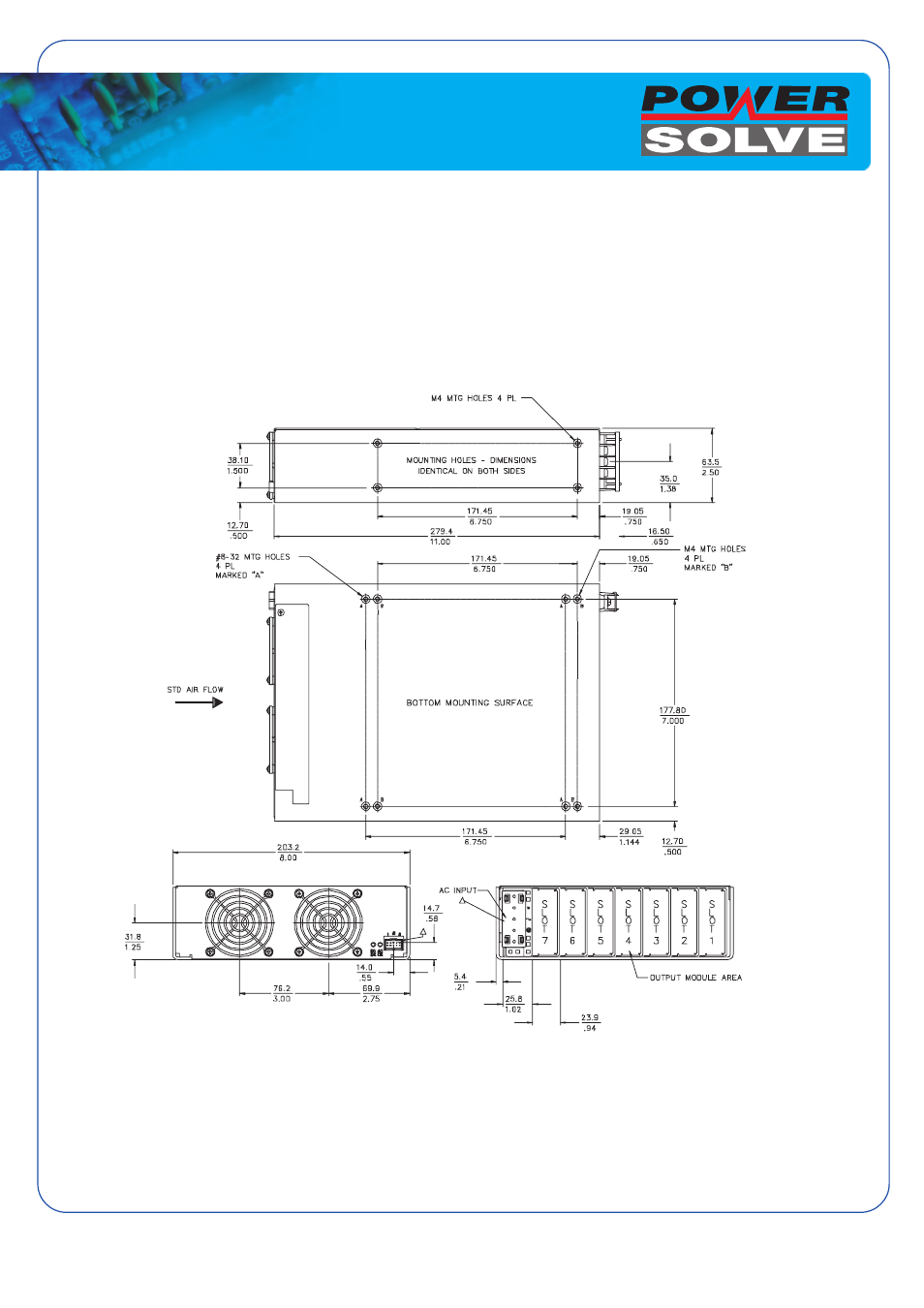

MP1 (1000/1200 Watts Max) 8-Inch Case Size: MP1: 2.5” x 8” x 11” (63.5mm x 203.2mm x 279.4mm)
Weight: • MP1 Case: 5.0lbs
• 36W Triple: 0.5 lb.
• 210 W Single: 0.6 lb
• 360W Single 1.0 lb
• 600W Single: 2.0 lbs.
• 144W Dual: 0.6 lb
2
1
Note:
1. Input: Barrier type. Three No. 6-32 B.H. screws (0.375” centers). Max torque: 6 in-lbs. (0.67 N-m).
2. Control connectors: (J1 and J2) 10 position housing, gold plated contacts. Mates with Molex 90142-0010 housing with 90119-2110 crimp
contacts (Molex C - Grid III Series) or AMP Model number 87977-3 with 87309-8 pins. Connector kit includes mating connector and 10 pins,
part #70-841-004.
3. Chassis material: aluminum with chemical film coating (conductive).
4. All dimensions are in millimeters and inches, and are typical.
5. Customer mounting -3 sides M4, bottom also includes 8-32 mounting holes. Max. penetration is 0.150” (3.8mm). Max. torque: 5in-lbs.
6. Output module connections: All single O/P modules are M4 x 8mm screws. Max. torque: 10in-lbs.Dual O/P module is M3 x 8mm screws.
Max. torque: 5 in-lbs. Triple O/P module is .045” square pins on .156” centers. Mates with Molex 09-50-8063 or equivalent.
