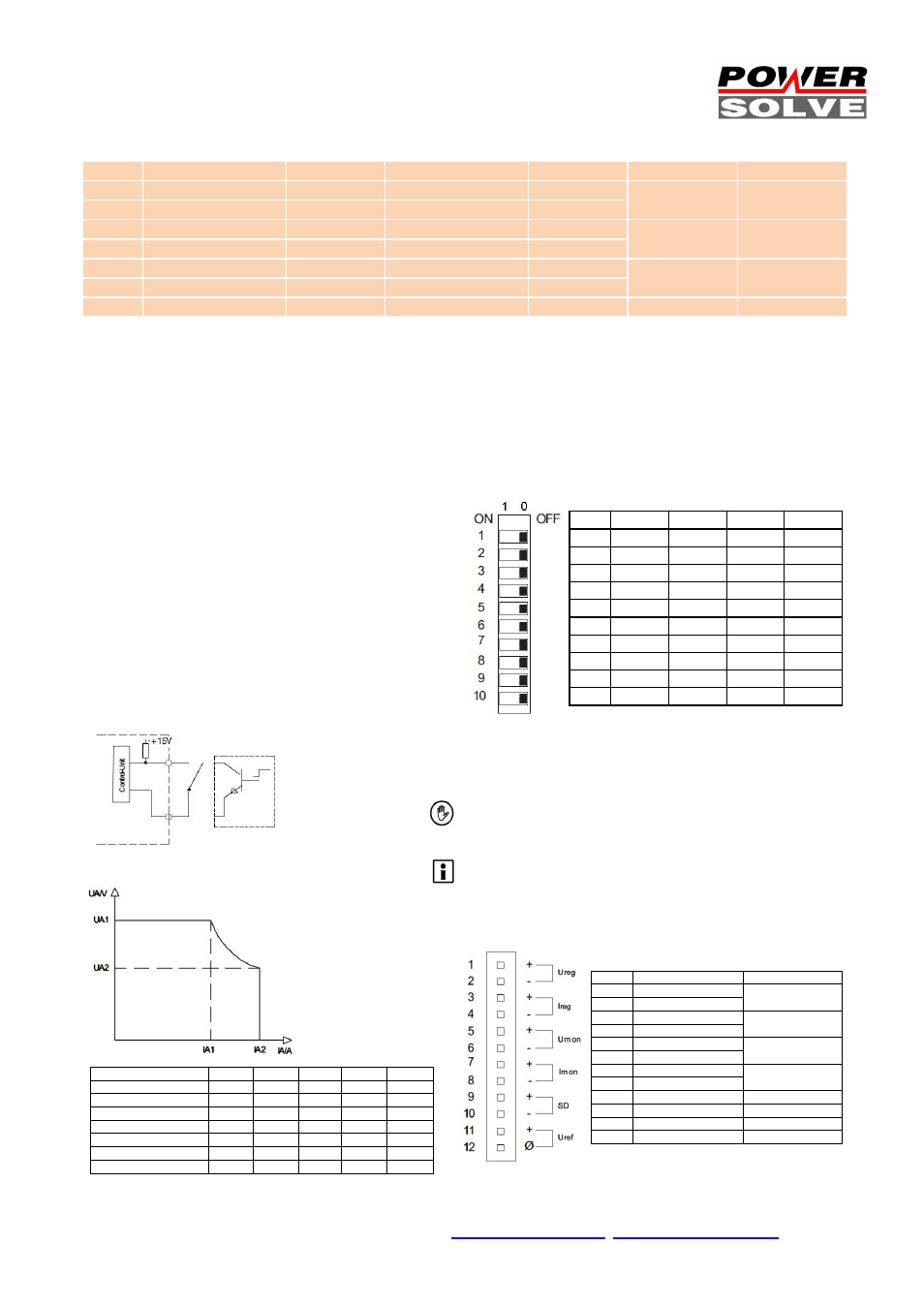

Powersolve HSEUIreg04801 Series - Manual (Page 3)

Powersolve Electronics Ltd., Unit 8A Arnhem Road, Newbury RG14 5RU, United Kingdom
Tel 0044 (0)1635 521858 Fax 0044 (0)1635 523771
www.powersolve.co.uk [email protected] p.3/9 05.12D
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
Ordering Information:
Output Type (DIN-Rail standard) Part Number Built-in 5W Power Sink Part Number Option Part Number
0...18V HSEUIreg04801.18T 304.1083.001CA HSEUIreg04801.18TPS 304.1083.011CA USB 2.0 Interface
UI.Drive Software
XP/W7/W8 304.1098.001CA
0...30V HSEUIreg04801.30T 304.1083.002CA HSEUIreg04801.30TPS 304.1083.012CA
0...50V HSEUIreg04801.50T 304.1083.003CA HSEUIreg04801.50TPS 304.1083.013CA ADTW201
DC-repeater
304.1090.001CA
0...90V HSEUIreg04801.90T 304.1083.004CA HSEUIreg04801.90TPS 304.1083.014CA
0...130V HSEUIreg04801.130T 304.1083.005CA HSEUIreg04801.130TPS 304.1083.015CA PS200 External
200W Power Sink 304.xxxx.001CA
0...180V HSEUIreg04801.180T 304.1083.006CA HSEUIreg04801.180TPS 304.1083.016CA
0...240V HSEUIreg04801.240T 304.1083.007CA HSEUIreg04801.240TPS 304.1083.017CA Wall Mount Kit 220.1002.001CA
Conception
The HSEUIreg power supply series realizes very high power efficiency in a
space-saving housing. Latest generation electrical devices relate to the high
reliability of all CAMTEC products. The CAMTEC philosophy is, to employ
125°C low ESR ultra long life capacitors where expedient to achieve a
superior lifetime of our products. The HSEUIreg-series is made for
Measuring & Control-Units to allow an easy design of P- or PI-controllers at
an attractive price value.
Thermal shutdown (p.6 fig.3)
The HSEUIreg-series is featured with a thermal overload shut down and
auto recovery behaviour.
Control type
The power supplies accurately works down low output voltages down to 0V.
Thereby the switching frequency is absolute stabile.
The output response is linear to the input signal.
Sensing feature (p.5)
The HSEUIreg has a sense operation mode to compensate potential drop at
the supply line. It is a standard for the 0..18Vdc, 0..30Vdc and 0..50Vdc
types. For all other types it is a feature up on request.
Shutdown feature
All HSEUIreg units are featured with a shut down (open collector). ON=
open contact, OFF= closed contact 1Vdc max. . The shutdown connections
have an internal pull-up resistor with 6800
Ω at the plus line (+15V inserted).
UI-characteristic:
Programmable Outputs:
Output Voltage & output current control:
The output voltage is linear proportional to the input signal.
10% input signal will deliver 10% of the maximum output voltage, 50% input
will give a ratio of 50% output and 100% will provide 100% output. The
USEUIreg features 0-5Vdc, 0-10Vdc, 0-20mA or 4-20mA control signal input.
The setting has to be chosen from a DIP-switch at the front-side. The input
impedance is 1M
Ω with voltage control mode settings. The input impedance
is 500 Ω with current control mode settings.
Tolerance compensation adjust:
It is not necessary to adjust the basic of the output voltage or output current
level. The engineers abandoned a compensation potentiometer to prevent
malfunction from wrong basic adjustments.
Warning:
Tuning the output voltage over the maximum level may cause deviations
from the technical data table. If the control inputs are not connected at all
this may cause a minimum voltage of 100mV at the device main outputs.
All control I/O are connected to Uref
The current operation mode features a 500R input impedance
to the control inputs. Be aware that your PLC is capable to
trigger recommended line power.
PIN Description Value
01 + V progr. input 0-5V 0-10V
0-20mA 4-20mA
02 - V progr. input
03 + A progr. input 0-5V 0-10V
0-20mA 4-20mA
04 - A progr. input
05 + V progr. output 0-5V/0-10V 5mA
06 - V progr. output
07 + A progr. output 0-5V/0-10V 5mA
08 + A progr. output
09 + SD shutdown Open collector
10 - SD shutdown Open collector
11 + Uref 5.2V /10V 5mA
12 - Uref ref return
Type UA1 IA1 UA2 IA2 Pmax
HSEUIreg04801.18 18V 26.7A 12V 40.0A 480W
HSEUIreg04801.30 30V 16.0A 20V 24.0A 480W
HSEUIreg04801.50 50V 9.6A 32V 15.0A 480W
HSEUIreg04801.90 90V 5.3A 60V 8.0A 480W
HSEUIreg04801.130 130V 3.7A 87V 5.5A 480W
HSEUIreg04801.180 180V 2.7A 120V 4.0A 480W
HSEUIreg04801.240 240V 2.0A 160V 3.0A 480W
Pos. 0 - 5V 0 - 10V 0 - 20mA 4 - 20mA
S01 0 0 1 1
S02 0 1 1 0
S03 0 0 0 1
S04 0 0 1 1
S05 0 1 1 0
S06 1 0 0 0
S07 0 0 0 1
S08 0 1 1 1
S09 0 1 1 1
S10 0 1 1 1
