Speed Parameter Input
Speed 1 P2.2.8. / P2.2.9. S1/ S2
Speed 2 P2.1.7. MS 2
Speed 3 P2.1.8. MS 3
Speed 4 P2.1.9. MS 4

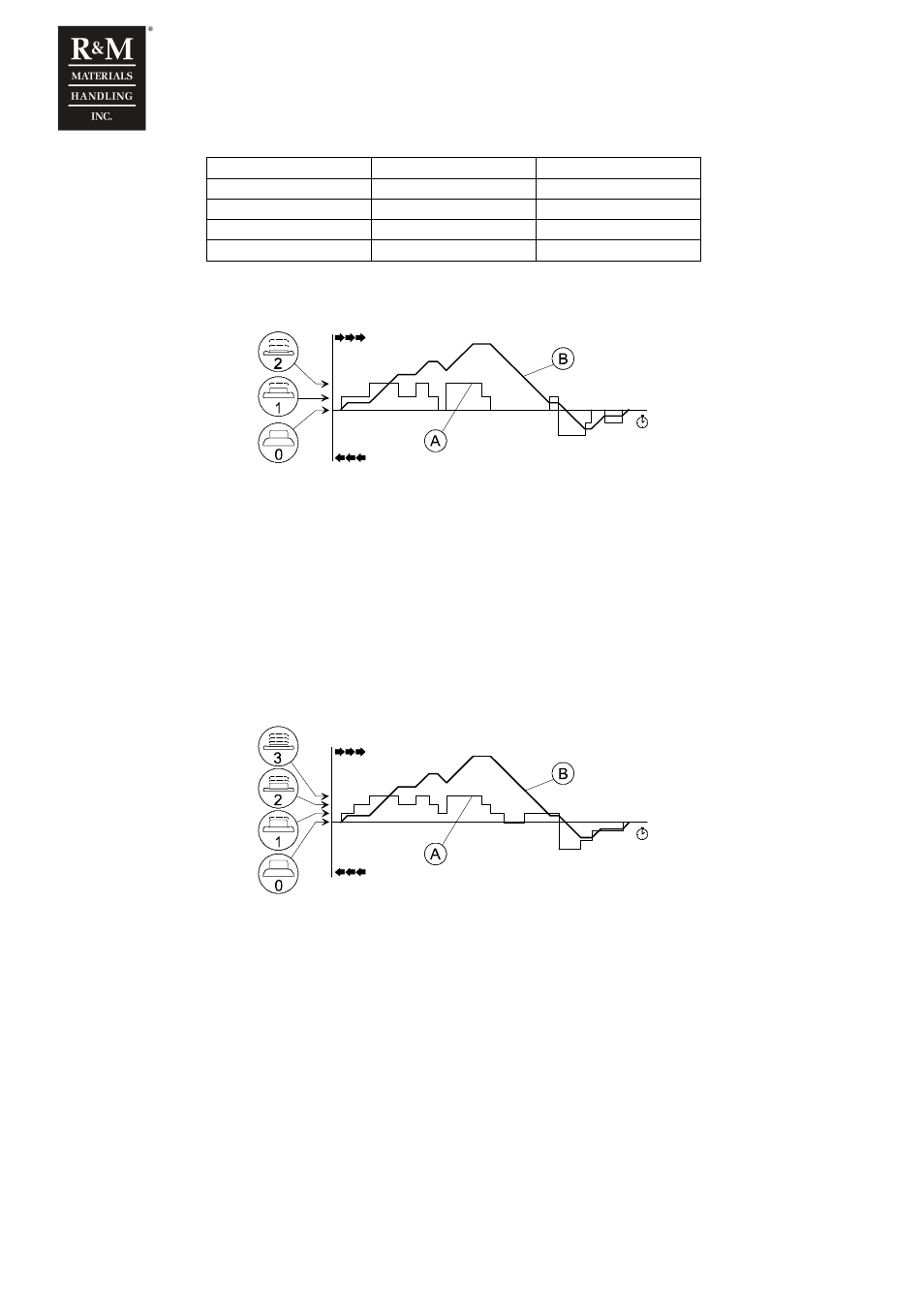

1.6.1 EP2-control
c_coep2a
A. Pushbutton / controller position
B. Speed
0) “decelerate to zero”
1) while starting “drive minimum speed”
while running “hold speed”
2) while running “accelerate”
while running at maximum speed “hold speed”
1.6.2 EP3-control
c_coep3a
A. Pushbutton / controller position
B. Speed
0) “decelerate to zero”
1) step 1 “drive minimum speed”
2) step 2 “hold speed”
3) step 3 while running “accelerate”
while running at maximum speed “hold speed”
