802.1Q VLAN
Tagged-based VLAN is an IEEE 802.1Q specification, which allows VLANs
to be created across devices from different venders. IEEE 802.1Q VLAN
uses a technique to insert a ―tag‖ into the Ethernet frame. The tag contains a
VLAN Identifier (VID).
When the 802.1Q VLAN is enabled, all ports on the switch belong to a
default VLAN (VID 1). The default VLAN cannot be deleted. Up to 64 VLAN
groups are supported.

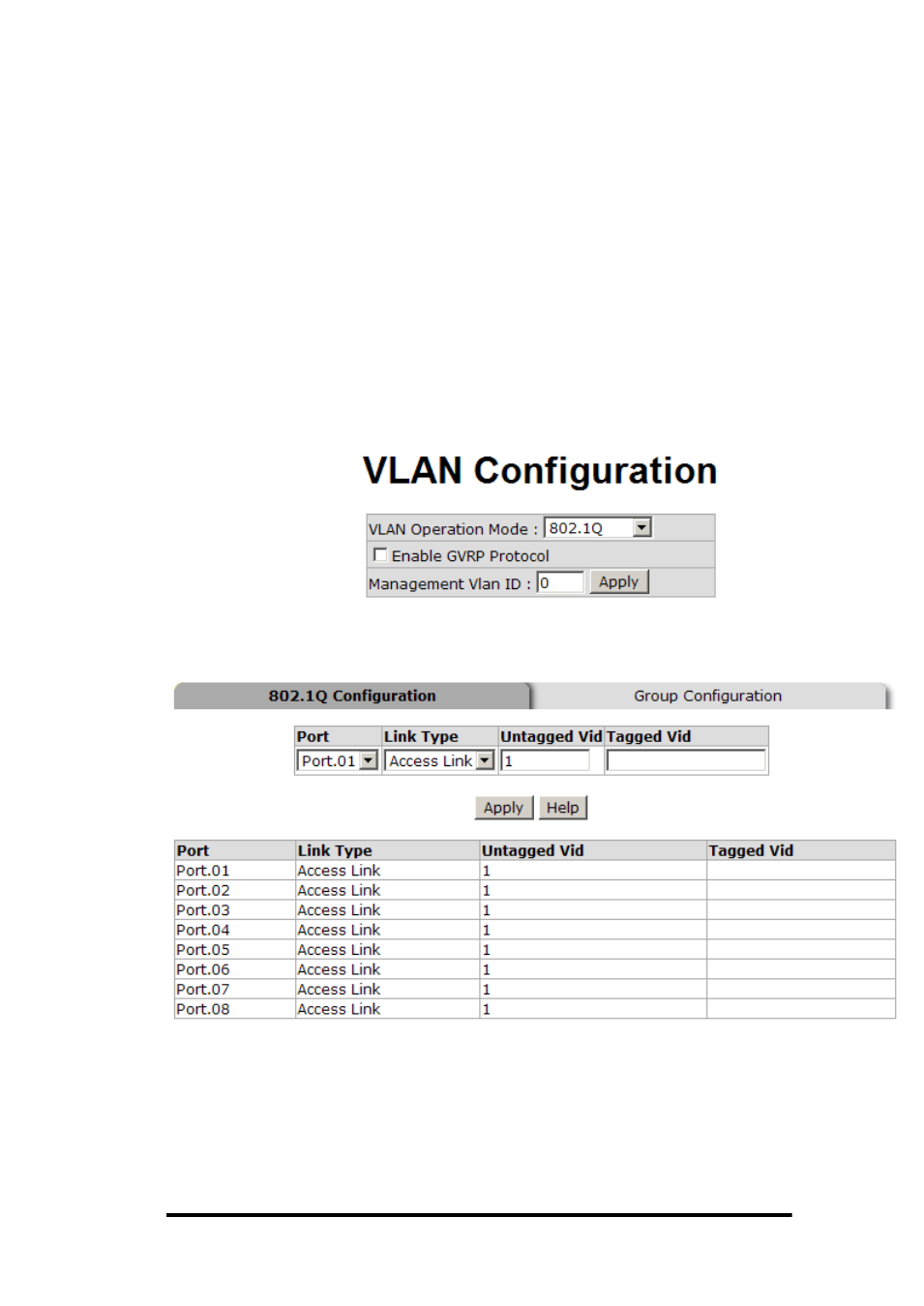

802.1q VLAN interface
