 System event selection: Four selections available – Cold Start, Warm
Start, SNMP Authentication Failure, and X-ring topology change. Mark
the checkbox to select the event. When the selected events occur, the
system will send the logs.

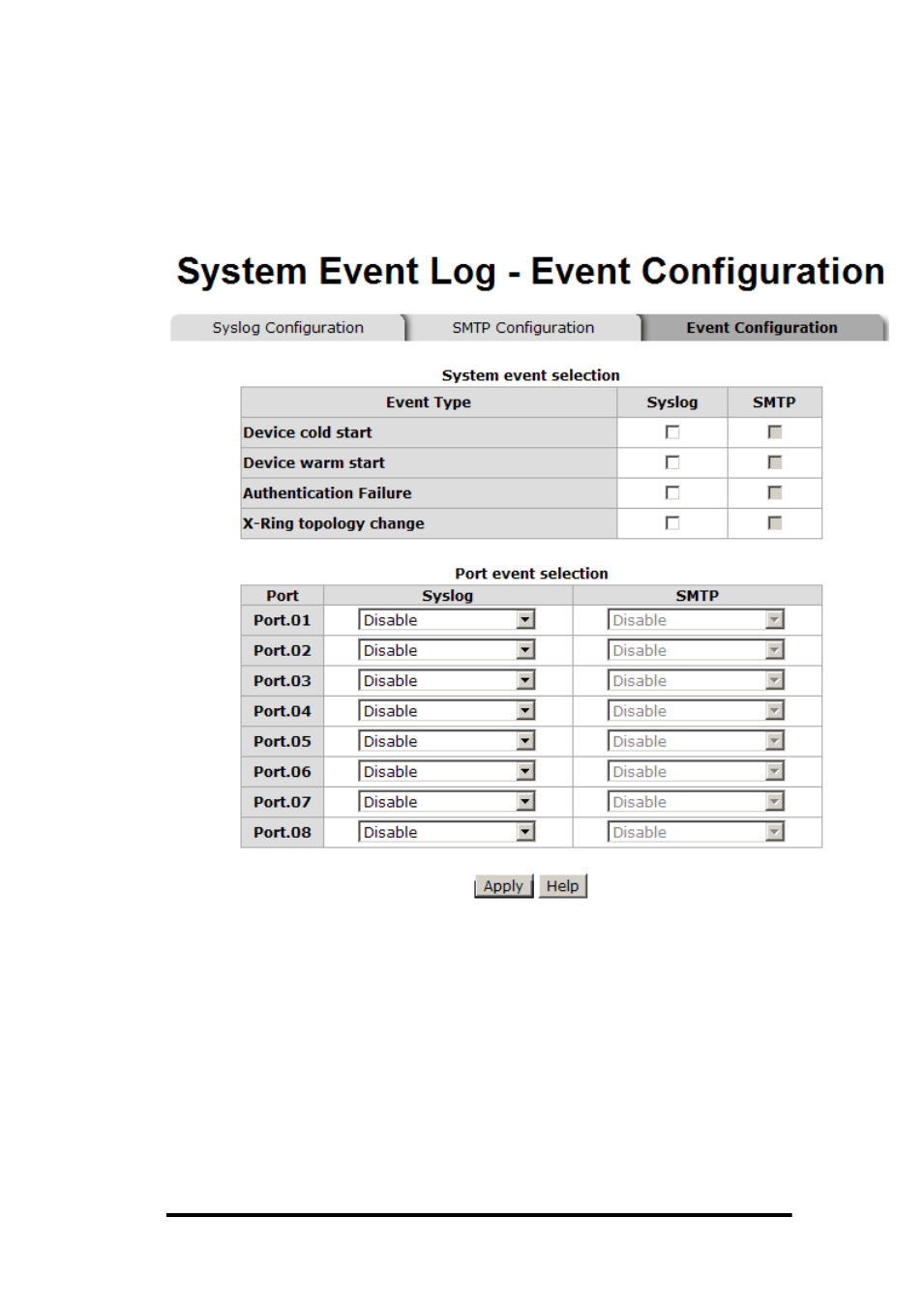

Event Configuration interface
 Port event selection: When a port specific event occurs, the system
will generate a log entry and email notification. Three selections are
available
– Link UP, Link Down, and Link UP & Link Down.
Fault Relay Alarm
 Power Failure: When the check box is marked, the Fault LED will light
