5. Connect the fiber optic cables to the industrial switch and network device.
Ensure that the switch‘s fiber optic transmitter is connected to the
network devices receiver and vice versa.
6. Connect the fiber optic cables.
7. When all the connections are made and the LEDs show normal
indications, the installation is complete.
X-Ring Application
This switch incorporates the X-Ring Protocol to ensure network reliability
and system restoration within 300 ms in the event of a connection failure.
The X-Ring algorithm is similar to the spanning tree protocol (STP)

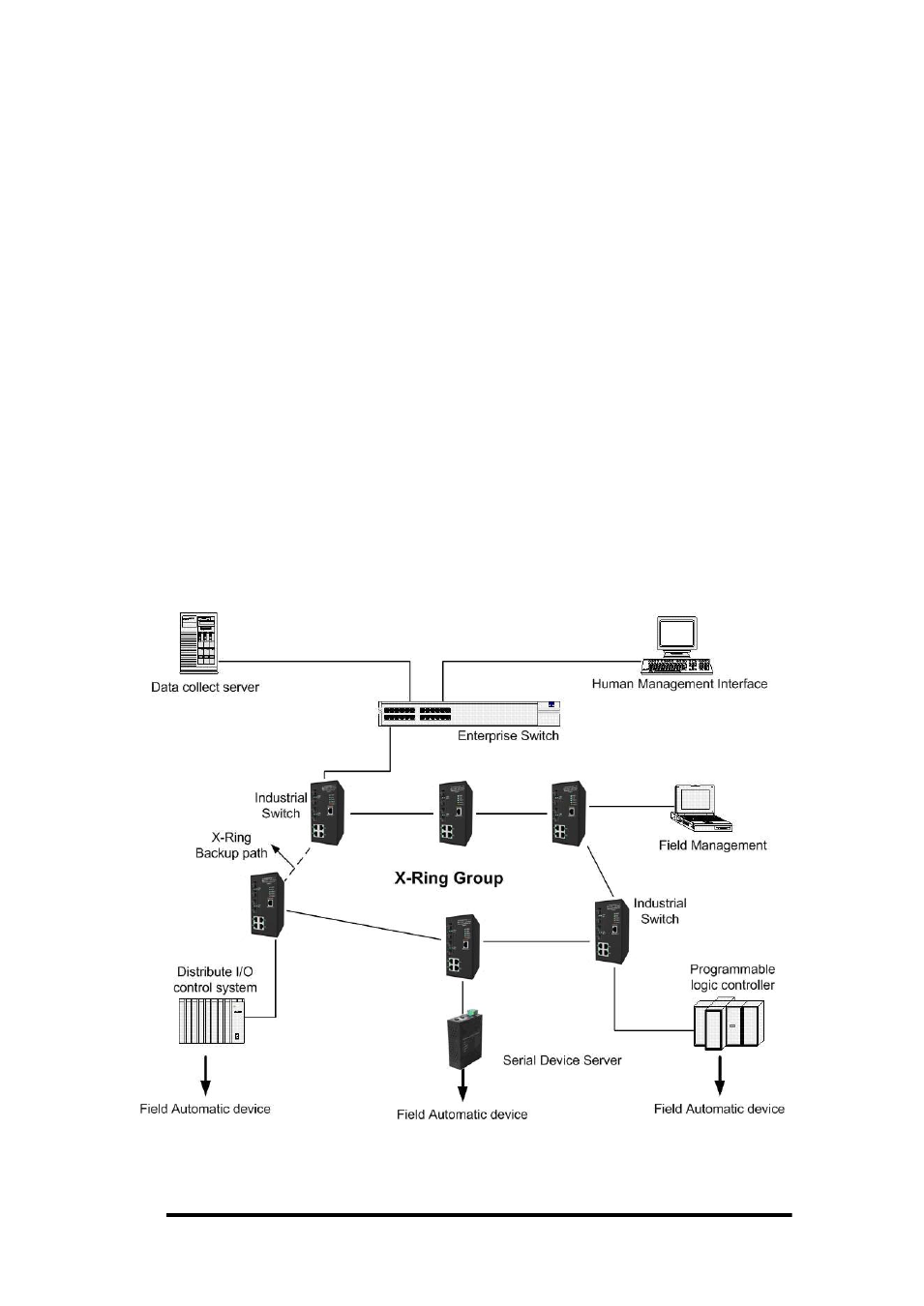

algorithm but it has faster recovery time. The following figure below is an
example of an X-Ring application.
