Hardware Installation
Installation Steps
1. Unpack the Industrial switch.
2. Ensure the DIN-Rail is tightly screwed to the Industrial switch. If not,
refer to DIN-Rail Mounting section for DIN-Rail installation. To panel
mount the Industrial switch, refer to Panel Mounting section.
3. Apply power to the switch (refer to the Wiring the Power Inputs
section). The power LED will light.

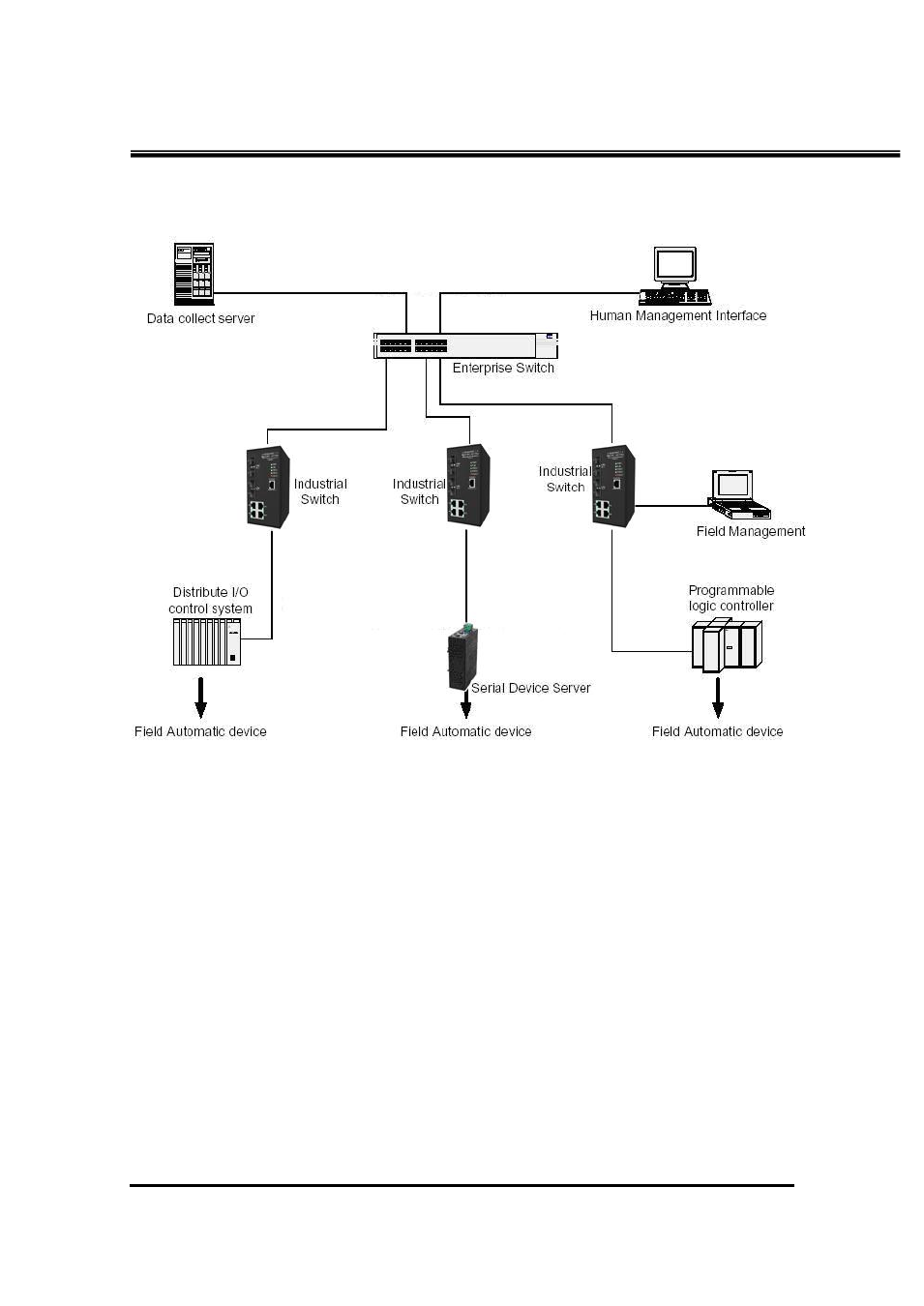

4. Connect CAT 5 cables to the Industrial switch ‘s RJ-45 ports and to the
network devices.
[NOTE] If the network devices do not support MID/MDIX, a
crossover cable may be required.
