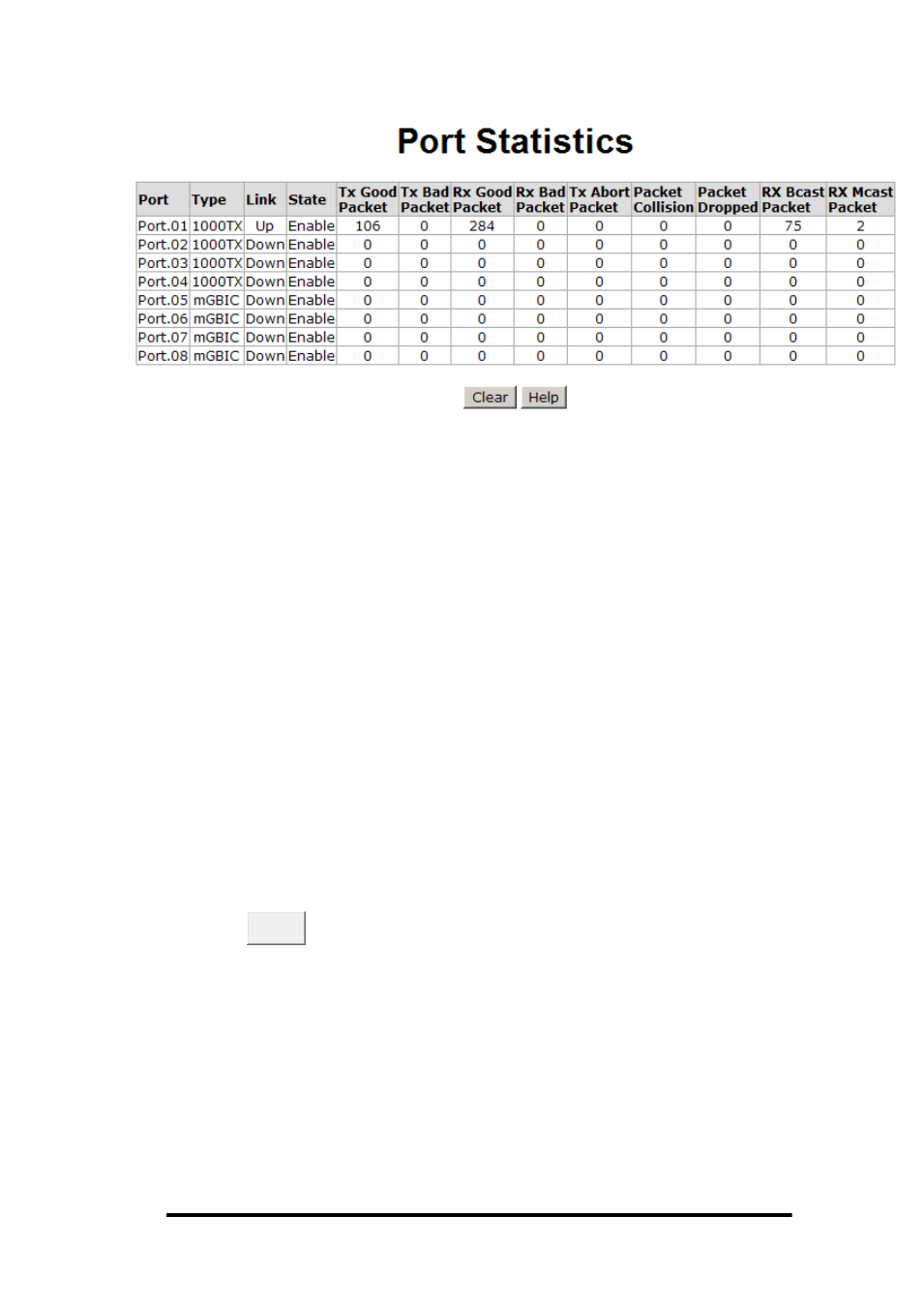

Port Statistics interface
Port Control
Used to configure and view port settings.
1. Port: Select the port to configure.
2. State: Enable or disable the port.
3. Negotiation: Set the negotiation status of the port.
4. Speed: Set the port link speed.
5. Duplex: Set the port to full or half-duplex.
6. Flow Control: Set flow control to Symmetric or Asymmetric in Full
Duplex mode. The default value is Symmetric.
7. Security: Set the port security. When
‗On‘ is selected, the port will only
accept a connection from one MAC address.
8. Click Apply .
