User Authentication
Use this function to change the login name and password.
1. User name: Enter the new user name (The default is
‗root‘).
2. Password: Enter the new password (The default is ‗root‘).
3. Confirm password: Confirm the new password.
4. Click Apply

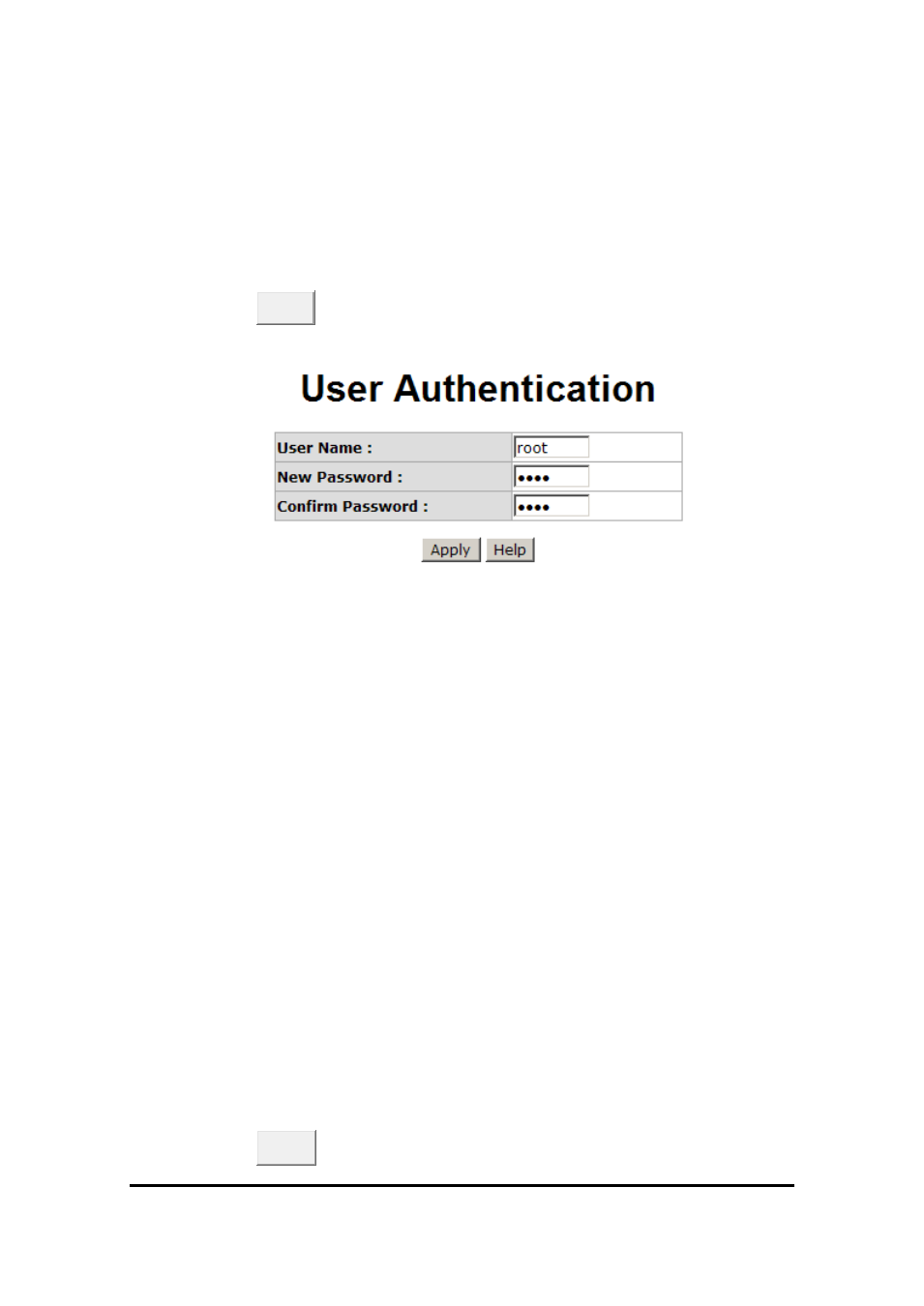

User Authentication interface
Port Statistics
Provides port status.
 Port: The port number.
 Type: Displays the connection speed.
 Link: Displays link status —‗Up‘ or ‗Down‘.
 State: Enabled or Disabled.
 Tx Good Packet: Displays the number of good packets transmitted.
 Tx Bad Packet: Displays the number of bad packets transmitted.
 Rx Good Packet: Displays the number of good packets received.
 Rx Bad Packet: Displays the number of bad packets received.
 Tx Abort Packet: Displays the number of aborted transmit packets.
 Packet Collision: Displays the number of packet collisions.
 Packet Dropped: Displays the number of dropped packets.
 Rx Bcast Packet: Displays the number of broadcast packets.
 Rx Mcast Packet: Displays the number of multicast packets.
 Click
Clear to reset the numbers.
