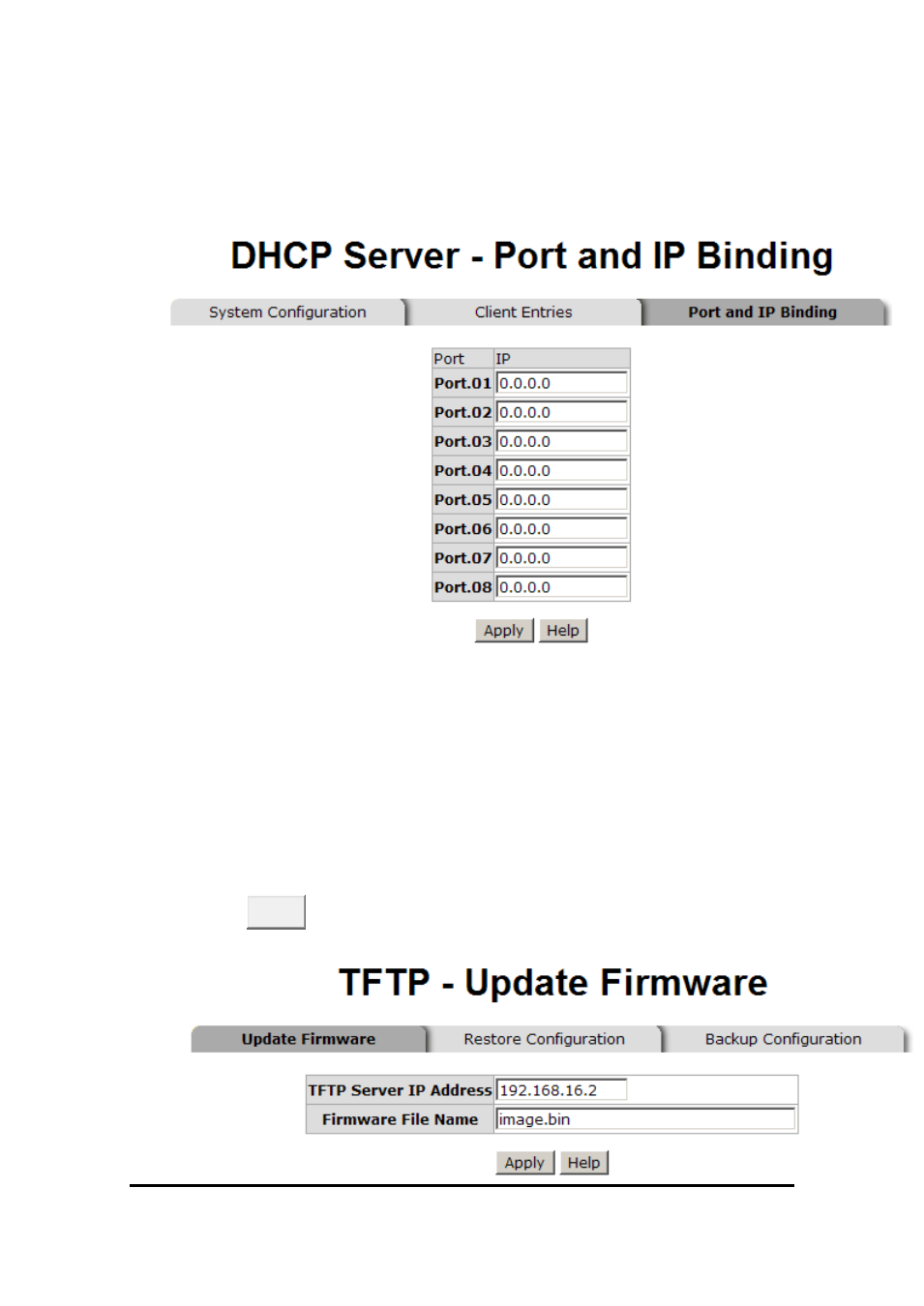

DHCP Server - Port and IP Bindings
You can assign a specific IP address that is in the dynamic IP assignment
range to the specific port. When the device is connected to the port and
asks for an assignment, the system will assign this IP address.
Port and IP Bindings interface
TFTP - Update Firmware
Provides the ability to update the switch
‘s firmware. Before updating, ensure
you the TFTP server is ready and the firmware image is on the TFTP server.
1. TFTP Server IP Address: Enter the TFTP server IP.
2. Firmware File Name: Enter the name of firmware image.
3. Click Apply .
