Port Mirroring
Port mirroring is a method to monitor traffic in switched networks. Traffic
flowing through the indicated ports can be monitored by a specified port.
 Destination Port: Only one port can be selected as the destination
(mirror) port for monitoring both RX and TX traffic from the source port.
Two ports may be configured to monitor RX and TX traffic separately. A
LAN analyzer can be connected to the mirror port.
 Source Port: Select the ports to monitor. All monitored port traffic will
be sent to the mirror (destination) port. Multiple source ports by can be
selected by checking the RX or TX check boxes.
 Click
Apply

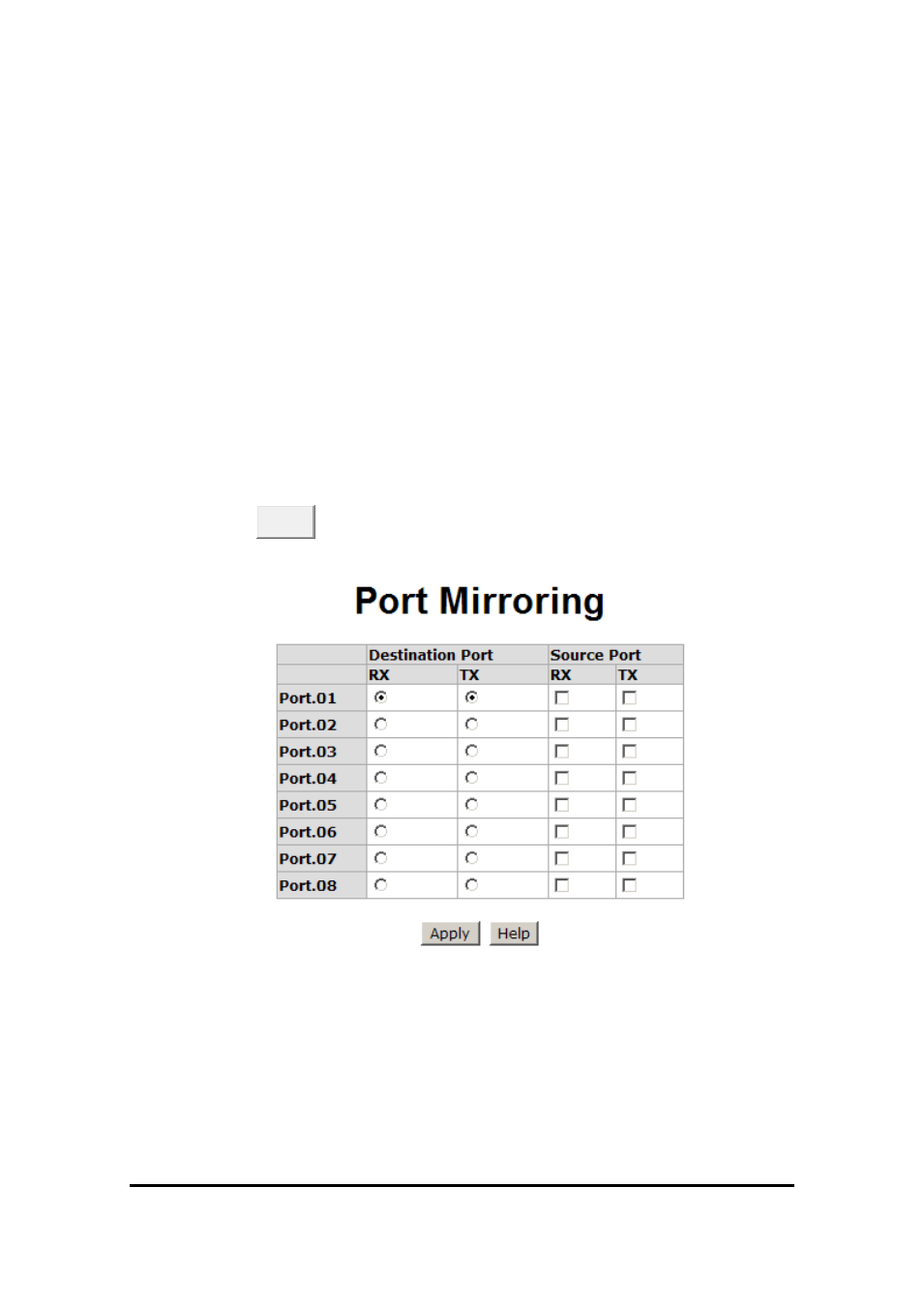

Port Trunk – Port Mirroring interface
