Clicking the Diagnostic icon opens the Diagnostics dialog box and enables you
to check the operation of connected serial servers and VCOM ports on the local
computer.
The Computer Information box displays information about the type of network
connections, the IP addresses, Subnet Masks and Default Gateways in use.

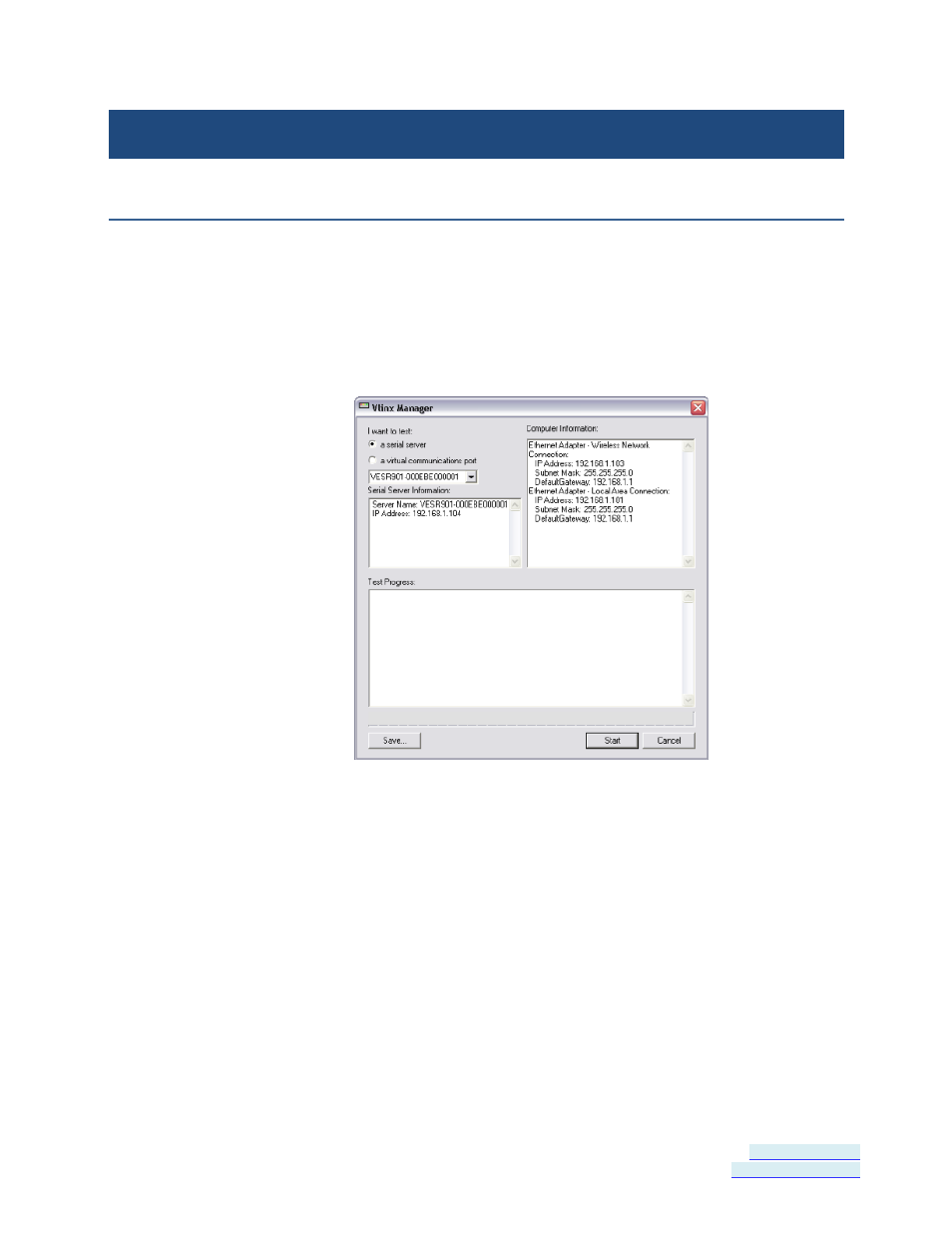

Figure 40. Diagnostics Dialog Box
Testing a Serial Server Connection
1. Click the
Diagnostic
icon.
The Diagnostics dialog box appears.
2. Select the option: a serial server
3. In the drop down box select the specific serial server you want to check.
4. Click the Start button
Information about the progress of the pinging process is displayed in the
Test Progress box.
