Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 41 of 66 Manual Documentation Number: VESP211-5011m
www.bb-elec.com/
www.bb-europe.com/

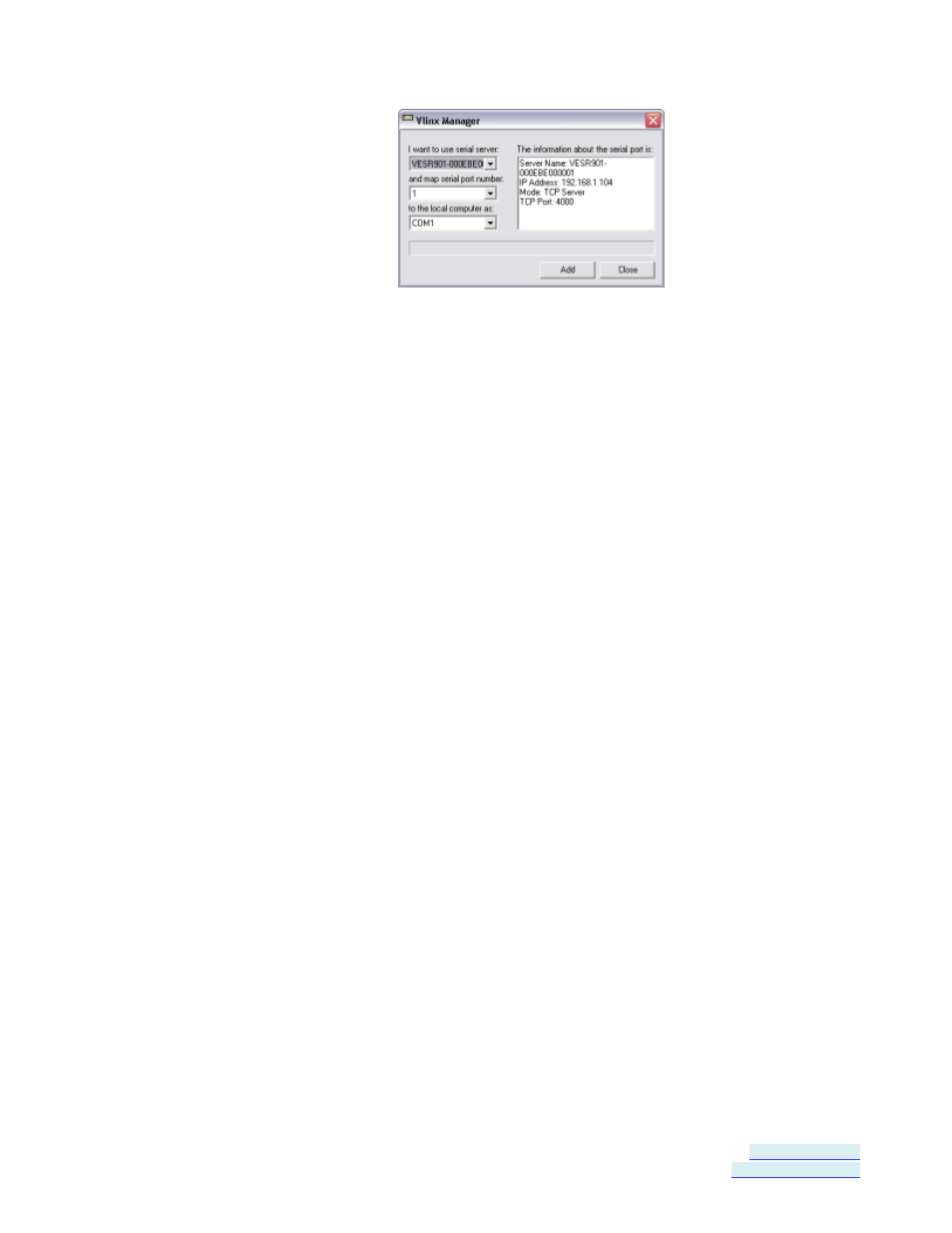

Figure 37. Add Virtual COM Port Dialog Box
Using the drop down boxes you can select the serial server you want to map
the virtual COM port to, the number of the serial port on the serial server and
the COM port on the local computer. The information box displays the server
name, its IP address, operating mode and TCP port.
1. On the Vlinx Manager window, click the Add VCOM icon.
The Add Virtual COM Port dialog box appears.
2. Select the serial server to which you want to map the virtual COM port.
3. Select the serial port number on the serial server.
4. Select the COM port number you want to use on the local computer.
5. Click the Add button.
When the process of adding the virtual COM port is complete (indicated by
the progress bar), the
Serial port is successfully installed dialog box
appears.
6. Click OK
Removing Virtual COM Ports
Clicking the Remove VCOM icon (located at the top of the Vlinx Manager
Configuration window) opens the Remove Virtual COM Port dialog box.
