Section 4 - Configuring the Serial Server Vlinx VESR4x4 Serial Server
Page 23 of 66 Manual Documentation Number: VESP211-5011m
www.bb-elec.com/
www.bb-europe.com/
Icons

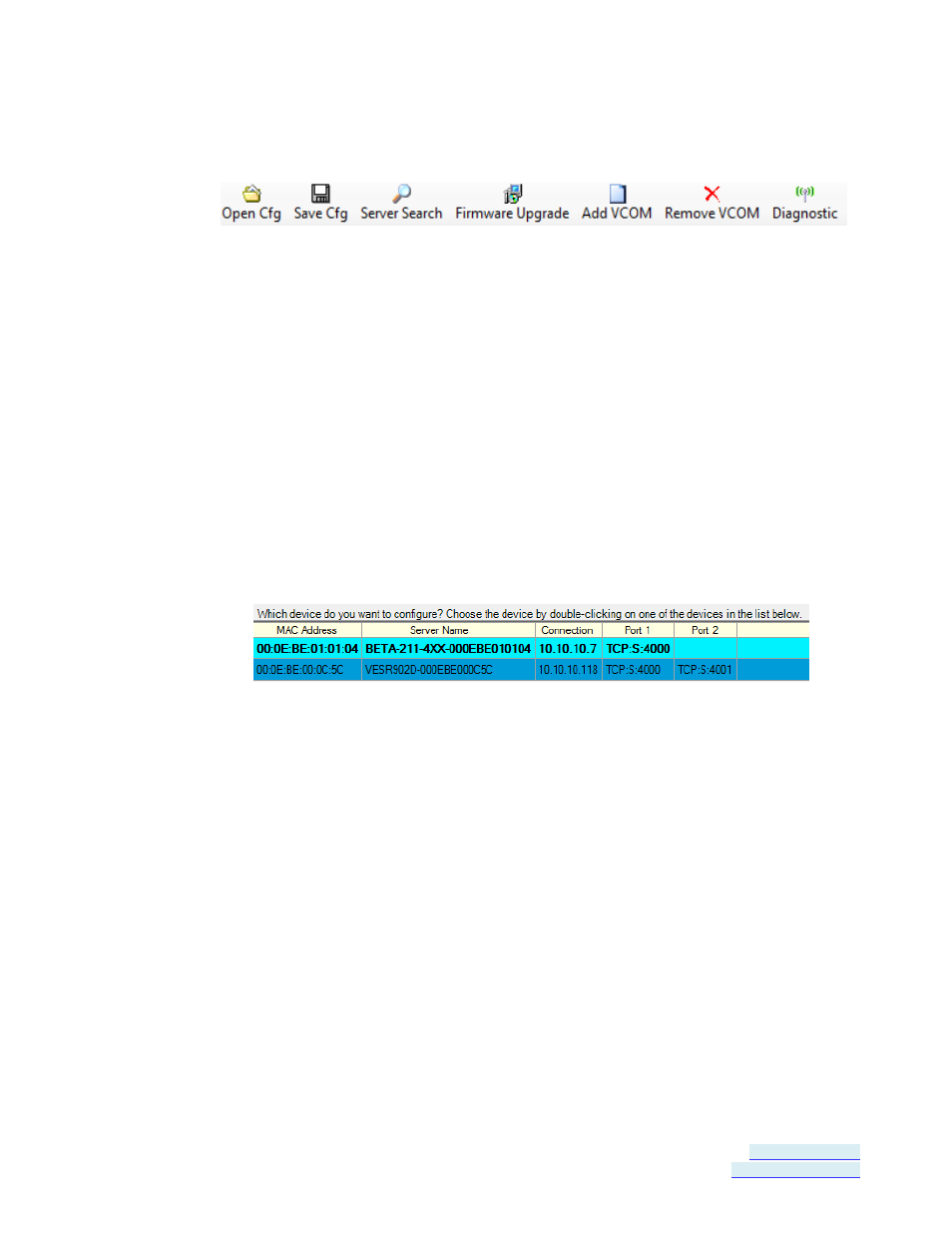

Figure 16. Configuration Window Icons
 Open Cfg - choose a previously saved configuration file.
 Save Cfg - save the current configuration to a file.
 Server Search - initiate another search for servers.

Firmware Upgrade
- open the Firmware Upgrade
 Add VCOM - open the Add Virtual COM Port window
 Remove VCOM - open the Remove Virtual COM Port window
 Diagnostic - open the Diagnostics window
Serial Server Information Table
The serial server information table contains information about all serial servers
that have been discovered on the network or serial ports.
Figure 17. Serial Server Information Table
The table includes columns, and displays information, for:

MAC Address
- the MAC Address of the serial server
 Server Name - the name reported by the serial server
 Connection - the IP address of the serial server

Port 1, Port 2, Port 3
and
Port 4
 First communications protocol used by the serial server (TCP client,
TCP server or UDP)
 TCP port number or UDP port number
 The virtual COM port assignment on the local PC (if assigned)
 Whether the serial server's serial port is being used by anyone on the
network
The status of whether the serial server is in use is updated periodically.
