53
4. Enter a VLAN ID in the Management VLAN IDs field.
Enter up to 32 VLAN IDs in the Data VLANs rows. VLAN IDs can range from 1 to
4094.
Data VLANs Data>
VLAN 1 [0 ] [101 ] VLAN 12 [0 ] [112 ] VLAN 23 [0 ] [123 ]
VLAN 2 [0 ] [102 ] VLAN 13 [0 ] [113 ] VLAN 24 [0 ] [124 ]
VLAN 3 [0 ] [103 ] VLAN 14 [0 ] [114 ] VLAN 25 [0 ] [125 ]
VLAN 4 [0 ] [104 ] VLAN 15 [0 ] [115 ] VLAN 26 [0 ] [126 ]
VLAN 5 [0 ] [105 ] VLAN 16 [0 ] [116 ] VLAN 27 [0 ] [127 ]
VLAN 6 [0 ] [106 ] VLAN 17 [0 ] [117 ] VLAN 28 [0 ] [128 ]
VLAN 7 [0 ] [107 ] VLAN 18 [0 ] [118 ] VLAN 29 [0 ] [129 ]
VLAN 8 [0 ] [108 ] VLAN 19 [0 ] [119 ] VLAN 30 [0 ] [130 ]
VLAN 9 [0 ] [109 ] VLAN 20 [0 ] [120 ] VLAN 31 [0 ] [131 ]
VLAN 10 [0 ] [110 ] VLAN 21 [0 ] [121 ] VLAN 32 [0 ] [132 ]
VLAN 11 [0 ] [111 ] VLAN 22 [0 ] [122 ]
5. Press S or F3 to save the settings.
6. Type Reboot.
Now the iMcV-FiberLinX-II is configured to pass only packets with tags containing the
VLAN IDs defined in the Data VLANs table. VLAN ID numbers defined in this table
must not be the same as the number used for the Management VLAN ID.

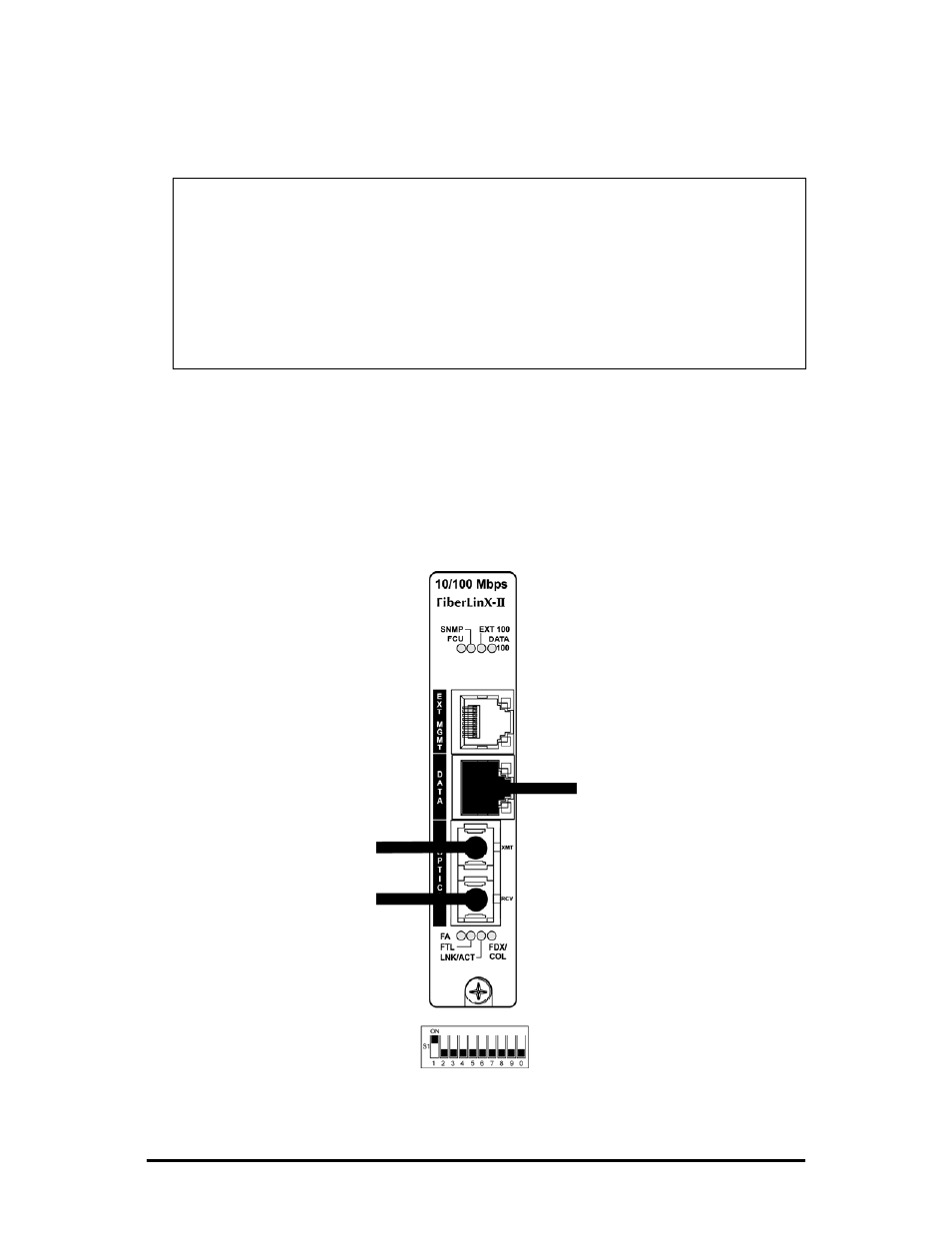

EXT MGMT port management DIP Switch 1 set
to ON.
DATA:
Up to 32
VLAN IDs
OPTICS:
Up to 32
VLAN IDs
EXT
MGMT:
Untagged
