51
4. Enter a VLAN ID in the Management VLAN IDs field.
VLAN IDs Priorities Tags
Current Saved Current Saved
Ports
Optics [0 ] [13 ] [0 ] [0 ] [ N ]
Data [0 ] [0 ] [0 ] [0 ] [ Y ]
Management VLAN.........................EXT Mgmt Tag
SNMP....[0 ] [20 ] [0 ] [0 ] [ N ]
Data VLANs are used only if Tags are enabled on both the Optics and Data
Ports.
5. Press S or F3 to save the settings.
6. Type Reboot.
Now the iMcV-FiberLinX-II is configured to pass only VLAN ID 13 from the OPTICS
(or UPLINK) port to the DATA port. Untagged packets arriving at the DATA port
(Tags = N) receive a tag (VLAN ID = 13) before being sent out of the OPTICS (or
UPLINK) port. The VLAN ID number used for a port must be different than the
number used for the Management VLAN ID.

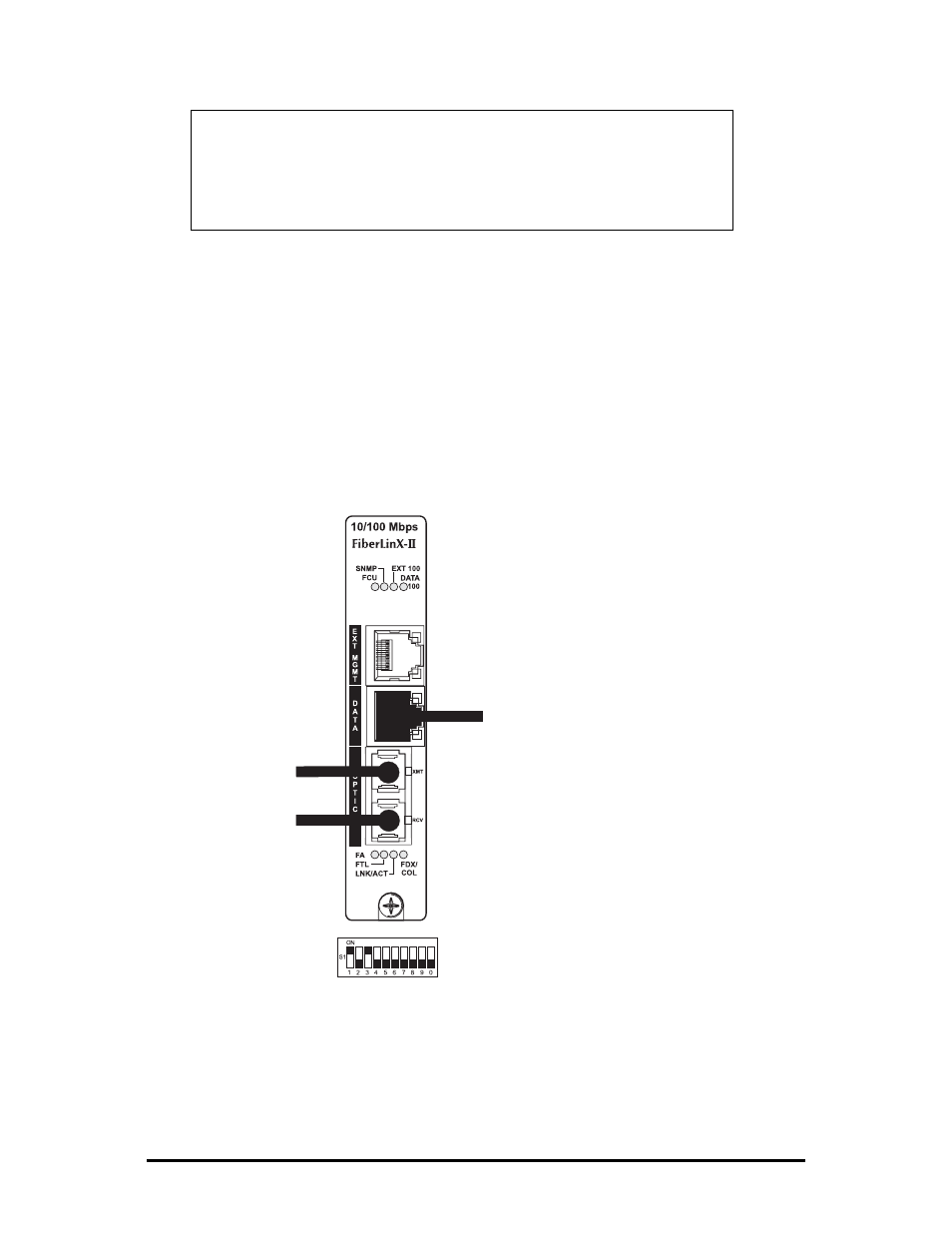

EXT MGMT Port Management DIP Switches 1 & 3 Set to ON.
Management of a host unit through the external port requires an IP address on the
host unit. A remote unit connected over the fiber link is managed through the local
unit using internal IP-less communication. If direct IP management of remote units is
required, then DIP Switch #3 must be ON and the remote must have an IP address.
OPTICS:
DATA VLAN ID=13
MGMT VLAN ID=20
DATA:
Untagged
Data
EXT
MGMT:
Untagged
