41

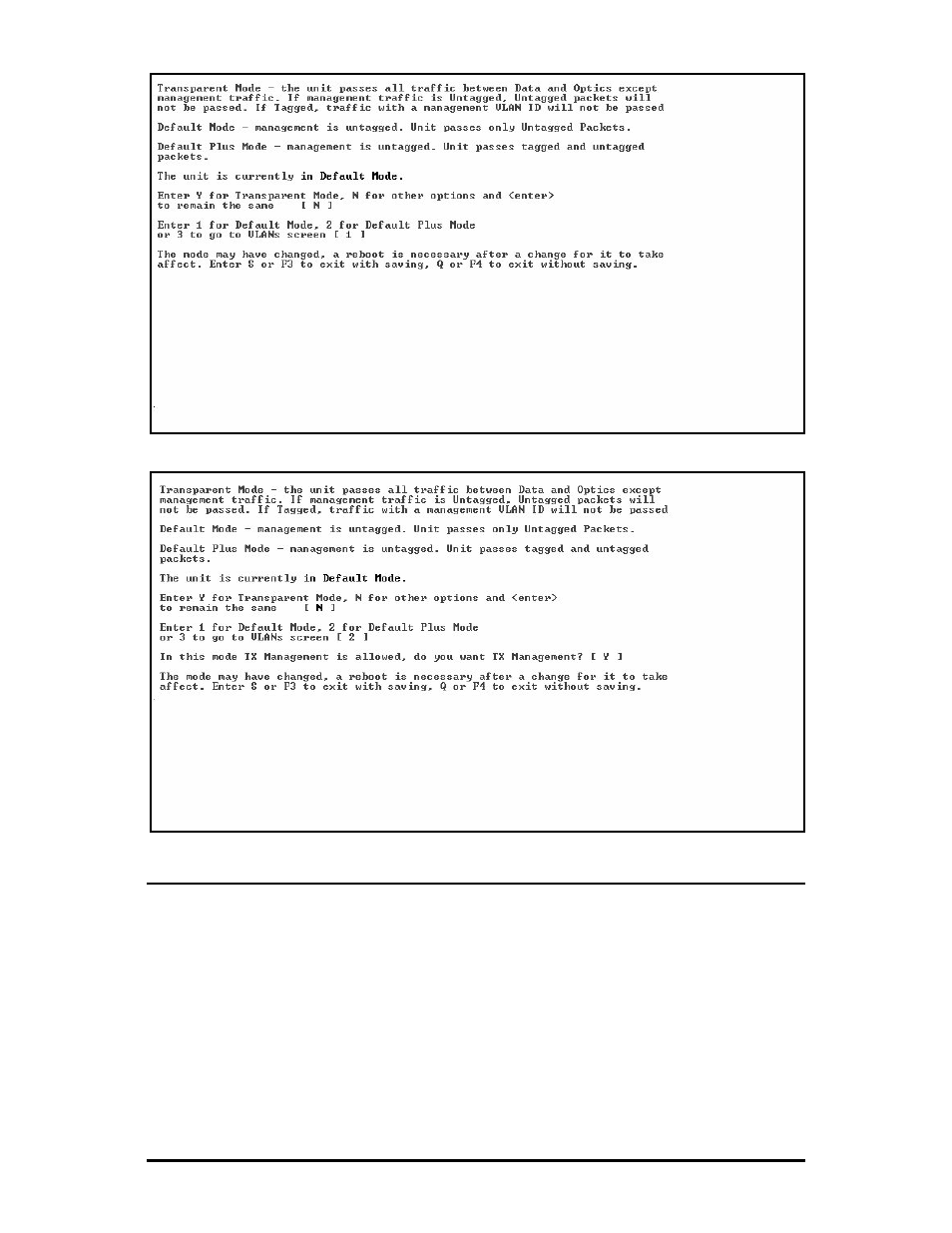

Press 2 to change to Default Plus Mode, then press Enter.
Mode Two-Transparency with Untagged Management
Transparent with Untagged Management mode passes tagged traffic between the
DATA port and the OPTICS (or UPLINK) port and isolates untagged traffic as
management domain traffic (untagged).
To configure this mode, do the following:
1. Set the management DIP Switch ON for the ports using management (in this
example it is the OPTICS (or UPLINK) port: 3 = ON). To enable External
Management (EXT MGMT), set DIP Switch 1 to ON. (otherwise, leave DIP Switch
1 in the OFF position (default from factory) to disable EXT MGMT)
