43
NOTE

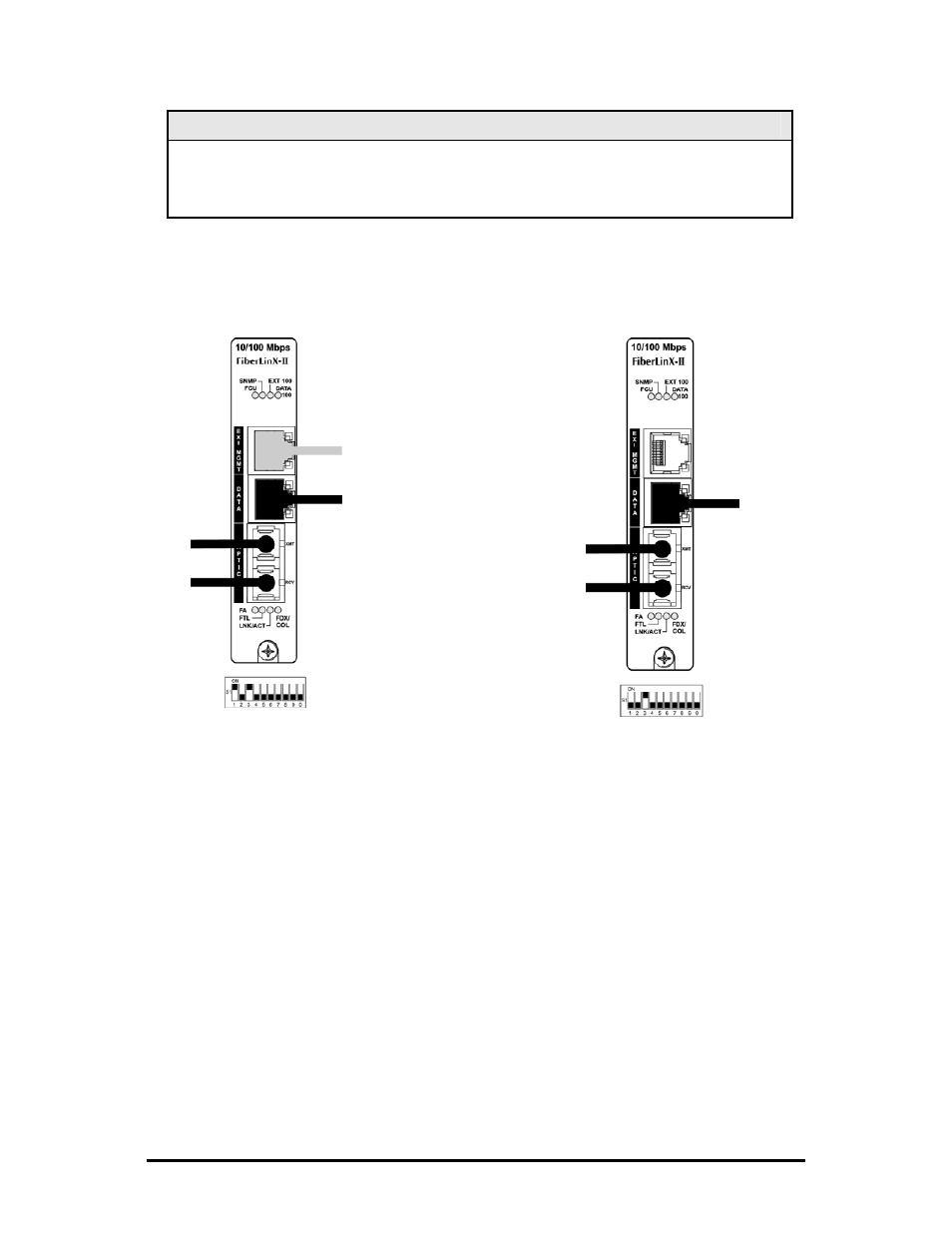

The flow of management domain traffic is defined by the DIP Switches. For example, if the
management DIP Switches are on the OPTICS and DATA ports, management domain
traffic is allowed to flow through those ports.
Off
Off
On
DATA:
Tagged Data
Only
OPTICS:
Tagged Data
and Untagged
Management
Data
External Management is OFF
On
Off
On
DATA:
Tagged Data
Only
OPTICS:
Tagged Data and
Untagged
Management
Domain Traffic
EXT MGMT:
Untagged Management
Domain Traffic
External Management is ON
