40
The Data Tag is [8 ]
Data Priority is [0 ]
Are Extra Tags left on the Data Port? [ N ]
Select the TPID for the Extra Tag 1 = 8100, 2 = 9100, 3 = 9200
Extra Tag TPID [ 1 ] [8100]
4. On the Host iMcV-Giga-FiberLinX-II module, enter Y at Are Extra Tags left on
the Data Port? to only accept the Extra Tag VLAN ID on the DATA port. On the
Remote iMcV-Giga-FiberLinX-II module, enter N to have the Extra Tag VLAN ID
added to incoming and removed from outgoing data on the DATA port.
5. Select the Extra Tag TPID EtherType (optional).
6. Press S or F3 to save the settings.
7. Type Reboot. Repeat steps for second module.
Now the iMcV-Giga-FiberLinX-II Host/Remote pair is configured to pass only VLAN
ID 8 data from the Host iMcV-Giga-FiberLinX-II to the Remote iMcV-Giga-FiberLinX-
II where the VLAN ID 8 tag is removed before sending the data out of the Remote
DATA port. The Extra Tag VLAN ID 8 is added to all data received on the Remote
DATA port before being sent to the Host iMcV-Giga-FiberLinX-II where the VLAN ID
8 tag remains on the data leaving the Host DATA port.

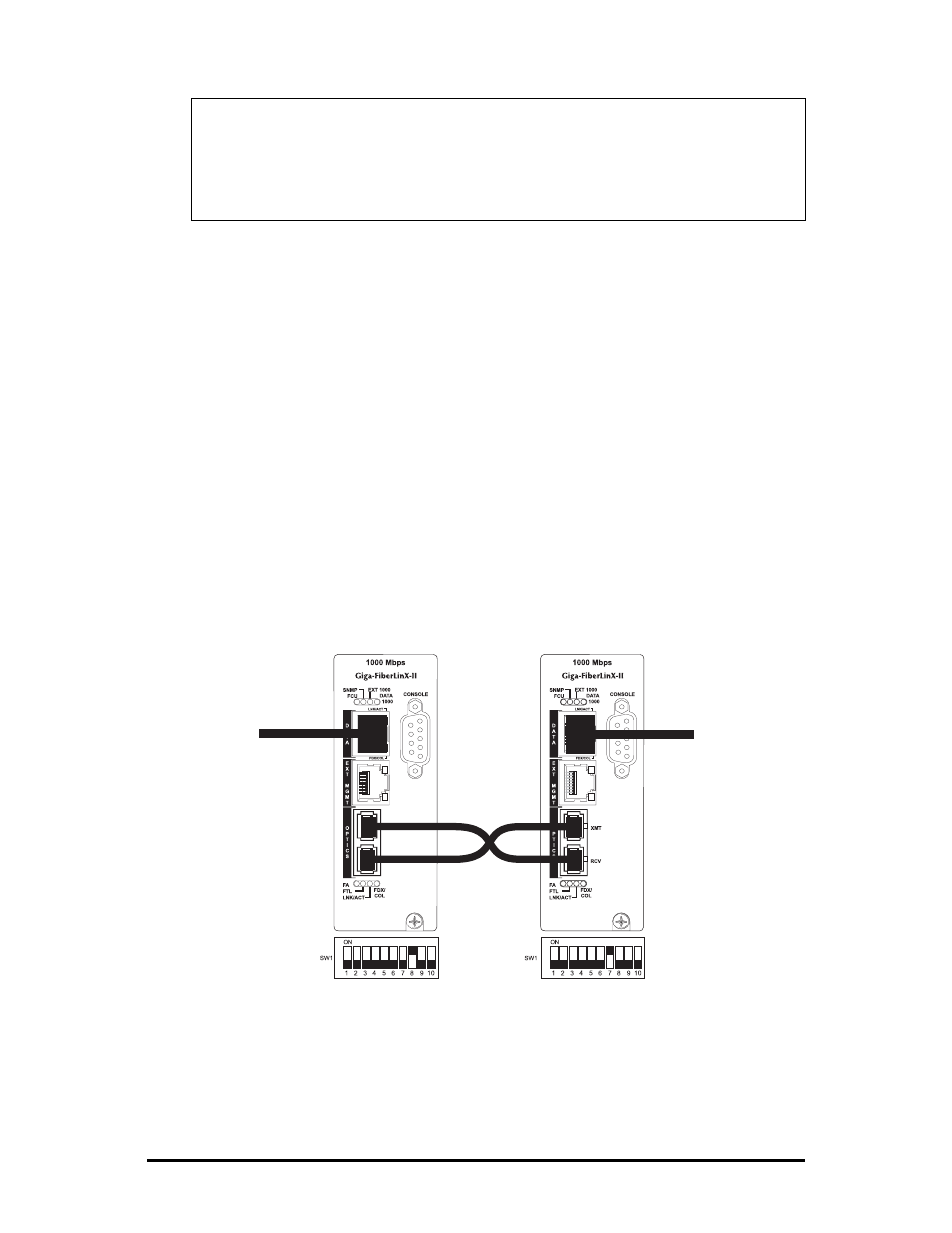

REMOTE DATA:
Untagged
and Tagged Data HOST DATA:
Untagged
and Tagged Data
wrapped in Extra
Tag of VLAN ID=8
Host DIP switch
(7) set to ON Host DIP switch
(8) set to ON
