AT90S/LS8535
1041H–11/01

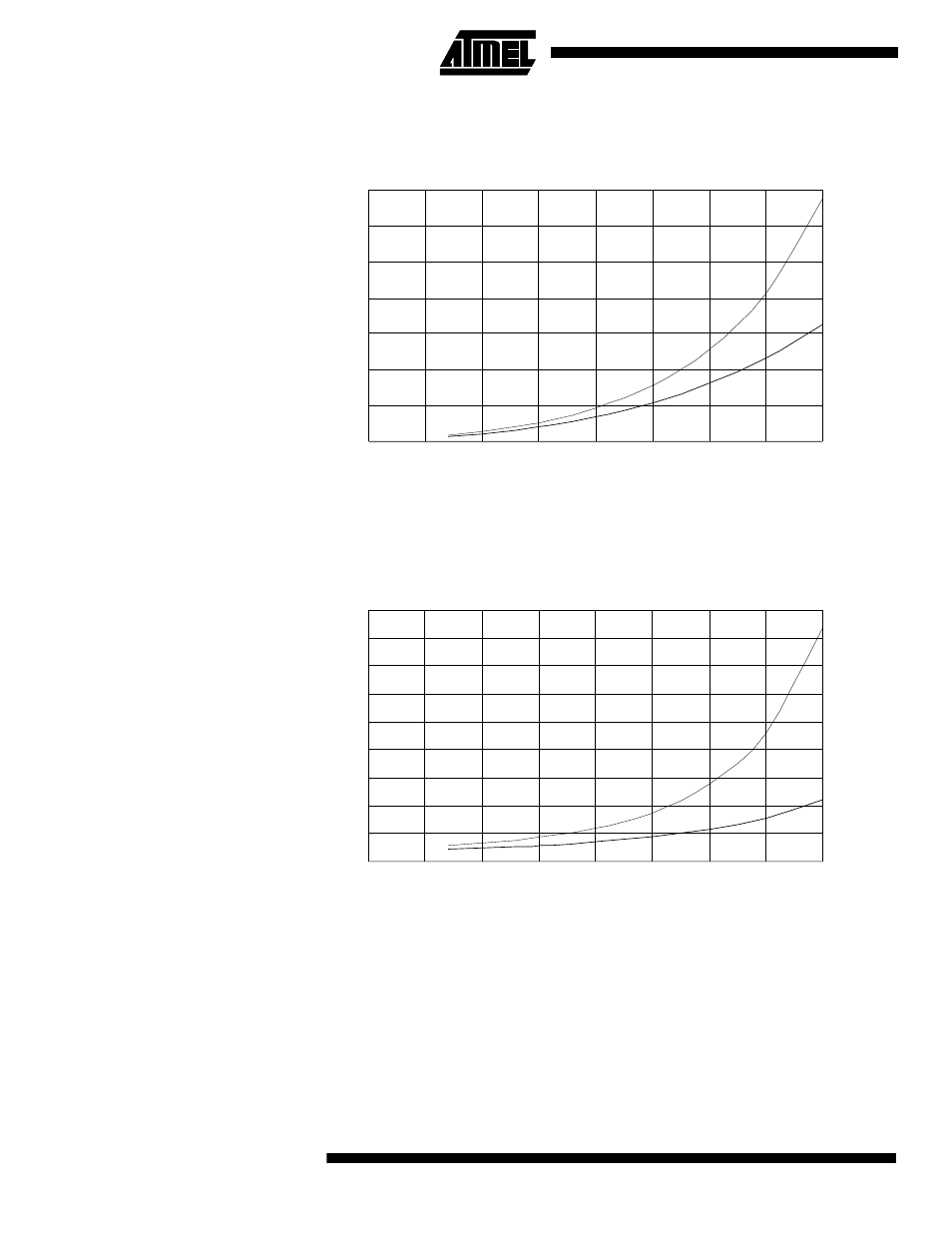

Figure 80. Power-down Supply Current vs. V
CC
Figure 81. Power Save Supply Current vs. V
CC
0
20
40
60
80
100
120
140
2 2.5 3 3.5 4 4.5 5 5.5 6
T = 85 ˚ C
A
T = 25 ˚ C
A
POWER DOWN SUPPLY CURRENT vs. V
cc
I cc
(µΑ)
V
cc
(V)
WATCHDOG TIMER ENABLED
0
10
20
30
40
50
60
70
80
90
2 2.5 3 3.5 4 4.5 5 5.5 6
T = 85 ˚ C
A
POWER SAVE SUPPLY CURRENT vs. V
cc
I cc
(µΑ)
V
cc
(V)
WATCHDOG TIMER DISABLED
T = 25 ˚ C
A
