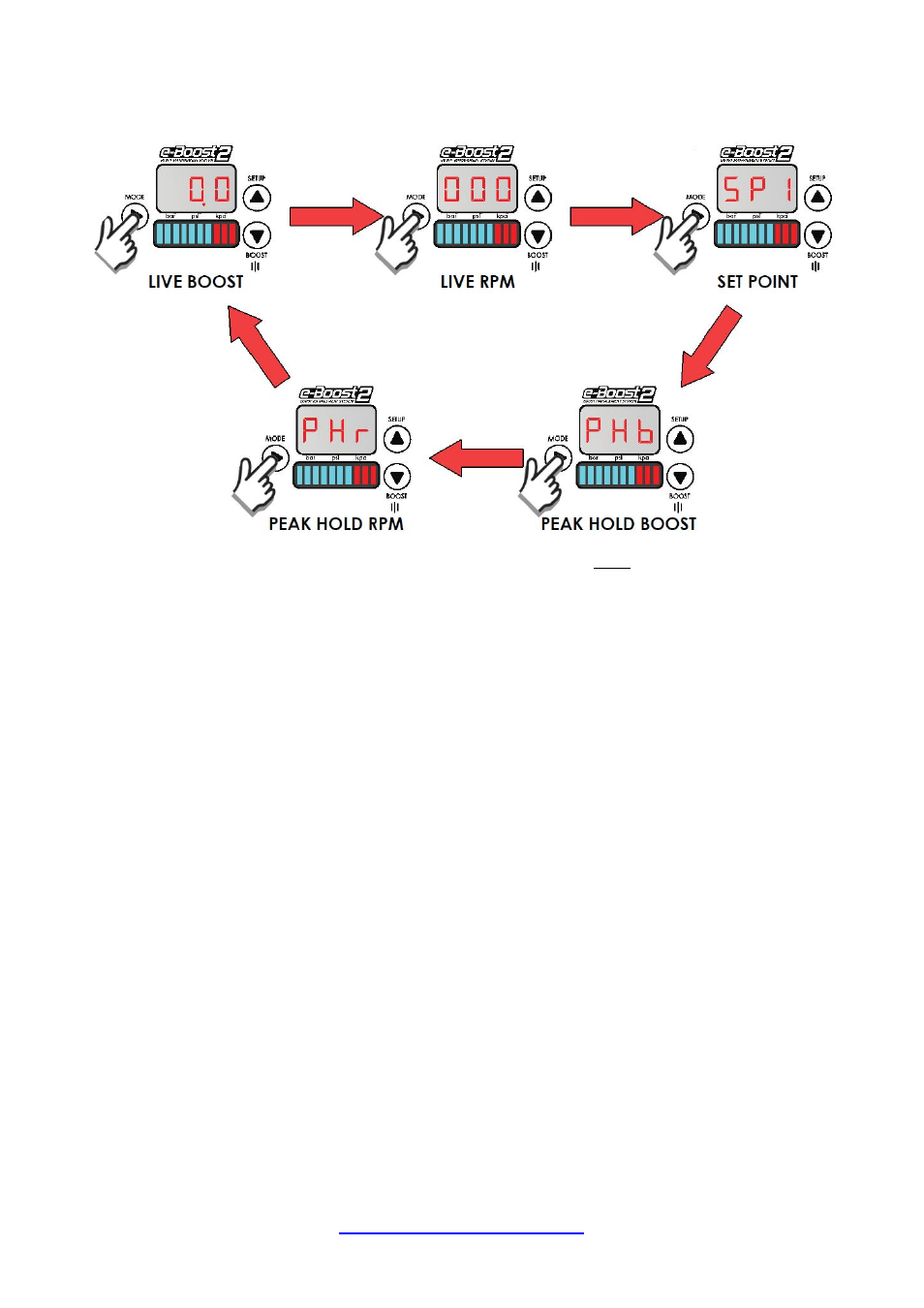

Live mode menu
When the e-Boost2 is powered up, the display will automatically go into live mode. Pressing MODE ONCE will scroll through the live
mode menu.
Live Boost:
Live boost is the default display and will display live boost or vacuum readings.
Live RPM:
Live RPM will display the current RPM of the engine. If you have not connected your RPM signal then this parameter will
not appear.
Set Point:
Shows the current set point value the unit is set to.
Peak Hold Boost:
This function records the peak boost pressure the unit has measured. Each time a higher pressure is produced
the previous figure is discarded and the new pressure is recorded (value will reset when the unit is switched off)
Peak Hold RPM:
This function records the peak RPM the unit has measured. Each time a higher RPM is produced the previous
figure is discarded and the new peak RPM is recorded (value will reset when the unit is switched off)
