9

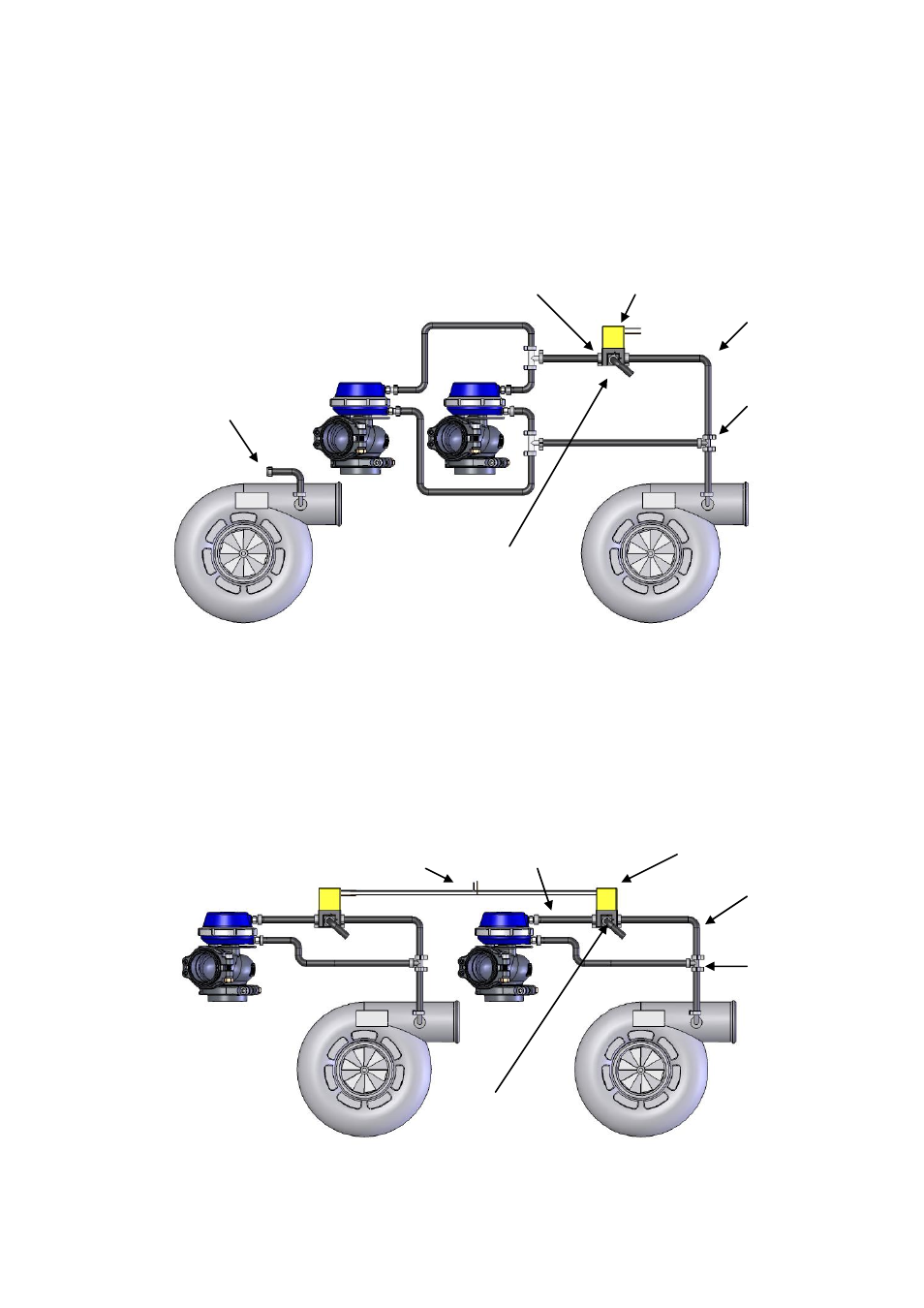

Two port, single solenoid, twin turbo connection Method (1)
(For controlling boost on a twin turbo, twin wastegate, single solenoid turbo system, on a straight configuration engine with high back
pressure)

Connect the bottom port of the wastegates and Port 1 of the solenoid to a Pressure only source via tee pieces

Port 2 of the solenoid to the top port of the wastegates via tee pieces
 Port 3 of solenoid vent to atmosphere

Block off other turbocharger pressure port (if needed)
Two port, twin solenoid, twin turbo connection Method (1)
(For controlling boost on a
twin turbo, twin wastegate, twin solenoid turbo system, on a V configuration engine with high back pressure)

Connect the bottom port of the wastegate and Port 1 of the solenoid to a Pressure only source via a tee piece

Port 2 of the solenoid to the top port of the wastegate

Port 3 of solenoid vent to atmosphere

Join the wires from both solenoids together (polarity not important) and then connect them to the brown and grey wires of the
wiring loom
Solenoid
Port 1 of solenoid to
pressure only source
Join wires
Port 2 of solenoid to top
port
Tee Piece
Vent to
atmosphere
Solenoid
Pressure source only to port 1
of solenoid and bottom port of
both wastegates
Port 3 of solenoid vent
to atmosphere
Port 2 of solenoid to top port
Of both wastegates
Tee Piece
Plug pressure port on
one turbo only
