12

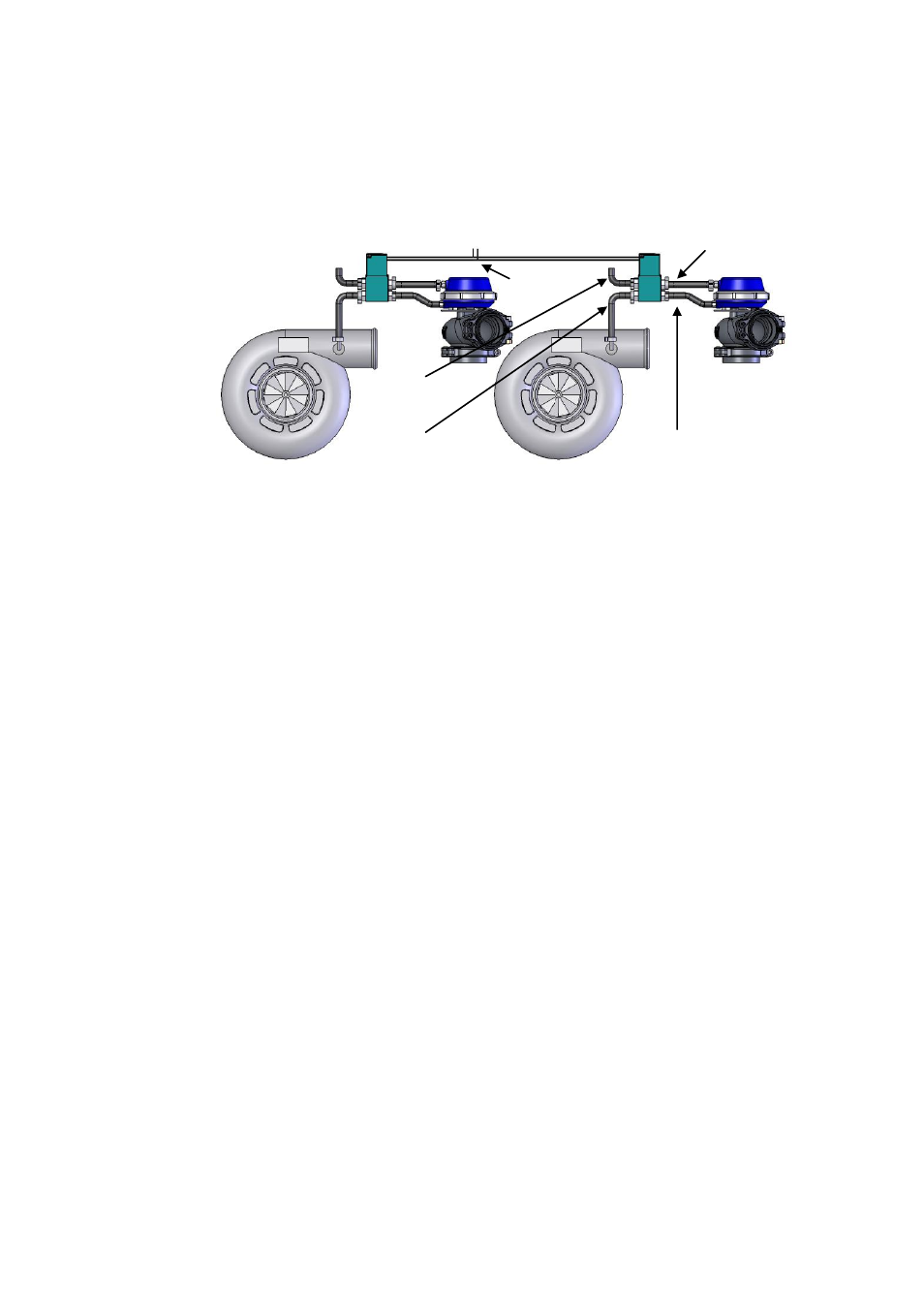

Two port, twin 4 port solenoid, twin turbo connection Method (3)

(For obtaining a wide range of boost pressures e.g. 5

– 40 PSI on a V configuration engine. This connection method has varying

degrees of success depending on turbo system)

Port A of solenoid to Top port of wastegates

Port B of solenoid to Bottom port of wastegates

EX port of solenoid vent to atmosphere

IN port of solenoid to Pressure only source

Join the wires from both solenoids together (polarity not important) and then connect them to the brown and grey wires of the
wiring loom









Port B of solenoid to
bottom port of wastegate

Port A of solenoid to top port of
wastegates via tee piece

EX Port of solenoid
vent to atmosphere

IN Port of solenoid to
pressure only source

Join wires
