BASIC FUNCTIONALITY

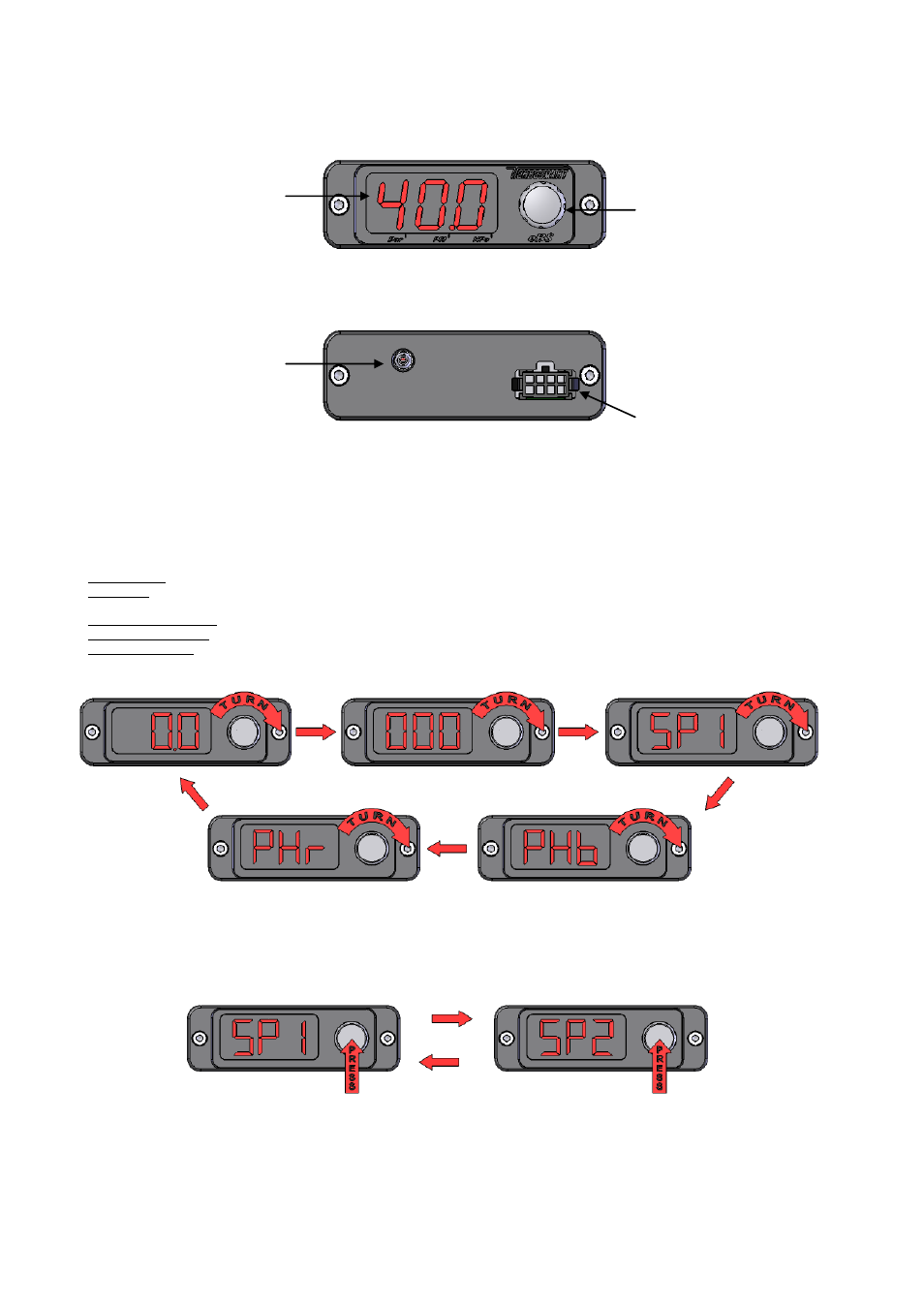

Unit Layout
OFF mode
The E-Boost Street can be switched off by holding the knob down for 10 seconds. This will disable the functionality of the E-Boost Street
and result in wastegate spring tension boost levels. To turn the unit back on, press the knob.
Live mode menu
LIVE BOOST: Displays the amount of vacuum/boost being read by the unit.
LIVE RPM: Displays the RPM X100 (020 = 2000 RPM) of the engine if the RPM wire is connected to a Square wave signal from the
ECU.
CURRENT SP VALUE: Displays the SP value the unit is currently set to.
PEAK HOLD BOOST: Displays the peak boost level the unit has measured.
PEAK HOLD RPM: Displays the peak RPM the unit has measured.
Changing between 2 boost groups
Press knob to change between
boost groups
Display
Knob
Vacuum/pressure
poly tube connector
8 Pin Connector
