8

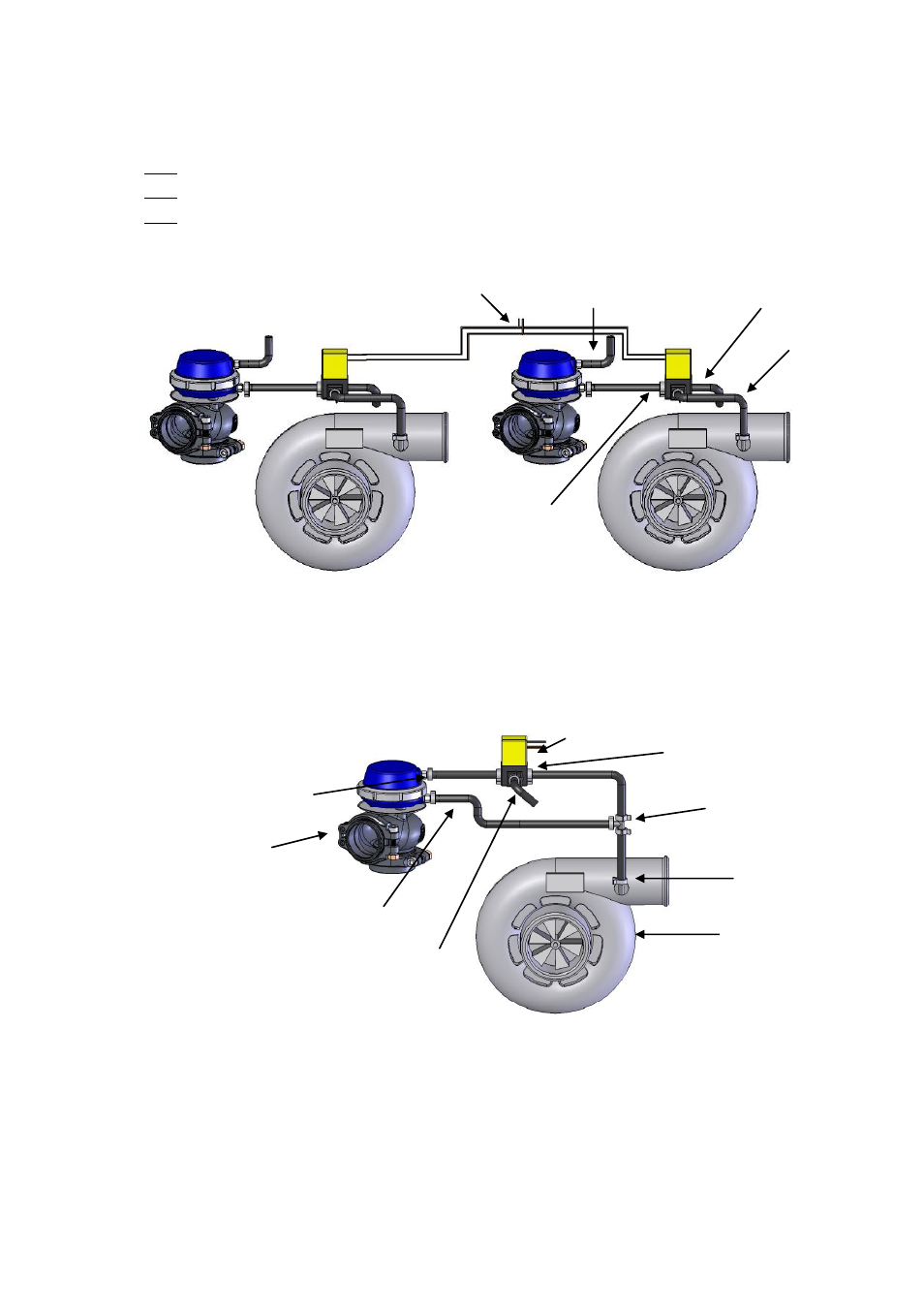

Single port, twin solenoid, twin turbo connection Method

(For V configuration twin parallel turbocharger engines E.g. V6, V8 etc)

Port 1 of solenoid vent to atmosphere

Port 2 of solenoid to bottom port of wastegate

Port 3 of solenoid to Pressure only source

Join the wires from both solenoids together (polarity not important) and then connect them to the brown and grey wires of the
wiring loom

Two port, single solenoid, single turbo connection Method (1)

(For controlling boost on a single turbo, single wastegate, single solenoid turbo system with high back pressure)

*NOTE: An increase in your minimum boost pressure is expected when using any of the 2 port connection methods. Ensure all boost
set point values and gate pressure values are set to Zero and measure the new minimum boost pressure achieved by this method
before increasing your Boost Set Point values.

Connect the bottom port of the wastegate and Port 1 of the solenoid to a Pressure only source via a tee piece

Port 2 of the solenoid to the top port of the wastegate

Port 3 of solenoid vent to atmosphere

Wastegate

Port 2 of solenoid to top
port of wastegate

Solenoid

Port 1 of solenoid to pressure
only source

Tee Piece

Port 3 of solenoid vent
To atmosphere

Bottom port of wastegate
To pressure only source

Pressure only source

Turbocharger

Top port vent to

atmosphere

Port 1 of solenoid

vent to atmosphere

Pressure only to Port

3 of solenoid

Port 2 of solenoid to
bottom port of wastegate

Join wires
