6. Installation
72 PNEG-1095 FCDL 4.00" Corrugation Externally Stiffened Grain Bin
Transition Installation (TR-7048)
Instructions
(Refer to Figure 6AI.)
1. Be sure to use caulking that is provided and seal all seams and corners throughout the assembly.
2. Bottom panel flanges should always be on the “outside” of the transition assembly. Bolt bottom
panel to all entrance collar braces and side entrance collar pieces. Be sure to use 5/16" x 3/4" bolts
and nuts.
3. Install and bolt top entrance collar to entrance collar braces and side entrance collars. Bolt transition
sides to bottom panel. After sides are complete bolt top panel into position. Be sure to use
5/16" x 3/4" bolts and nuts on all pieces.
4. Field cut hole in bin sidewall 44-3/4" x 11-3/4" to allow transition to fit properly.
5. Install entrance collar mounting brackets to transition on inside of bin. Be sure to use 5/16" x 3/4"
bolts and nuts.
6. Using 5/16" x 1-1/4" bolts and nuts, install entrance collar mounting brackets to bin sidewall. Installer
must seal between bin sidewall and entrance collar mounting brackets. No sealer is provided.
7. After putting transition on bin, locate sizing angle to curvature of bin, screw to top entrance collar and
to bin sidewall. Use #10 x 1" screws.

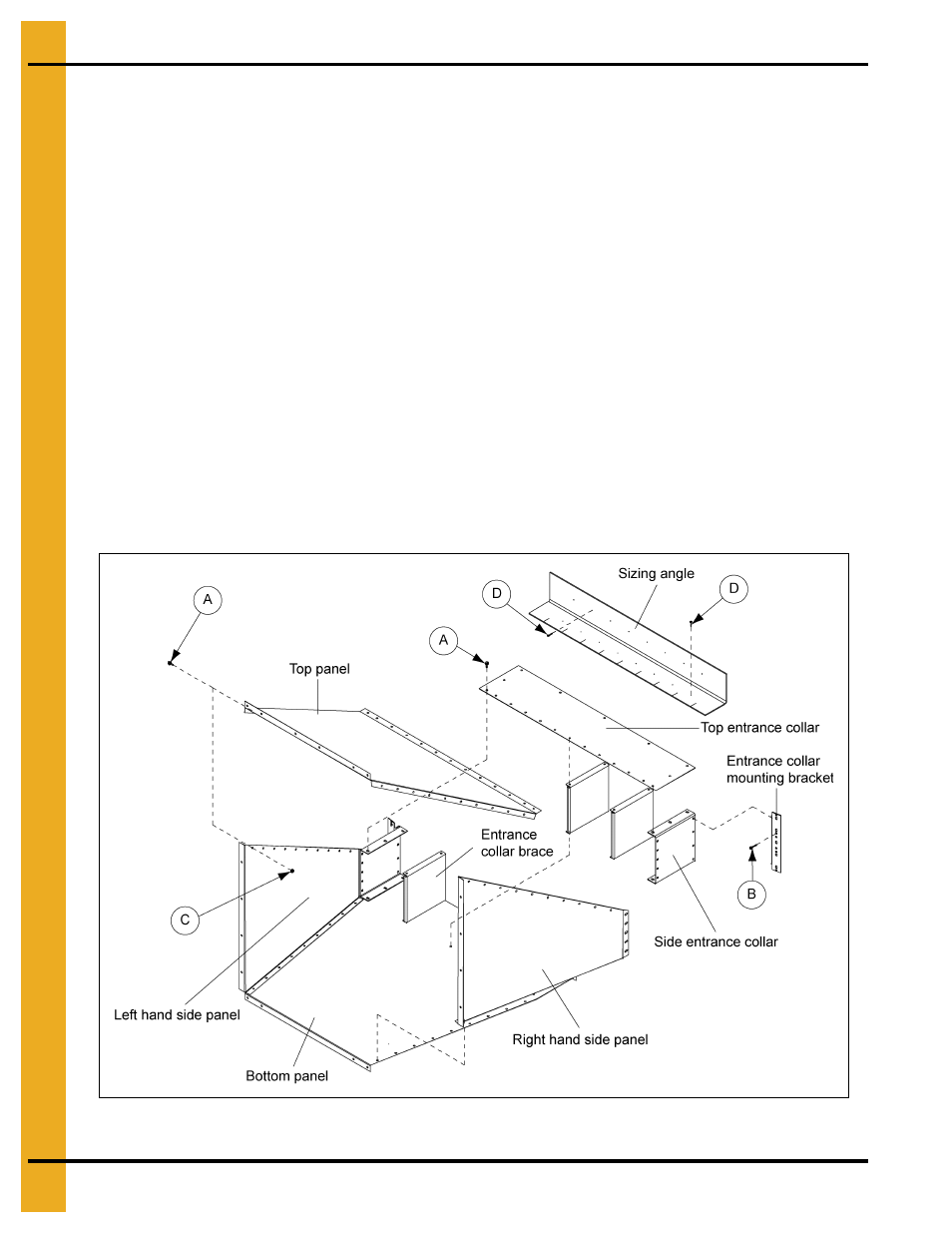

Figure 6AI
