6. Installation

PNEG-1095 FCDL 4.00" Corrugation Externally Stiffened Grain Bin

39

NOTE: The rope caulking is installed before each sheet is assembled. Apply rope caulking between the

last vertical row of bolts and edge of outside sheet. There is sufficient caulking for all vertical seams
on storage and drying bins. Wipe sheet clean where caulking is to be applied.

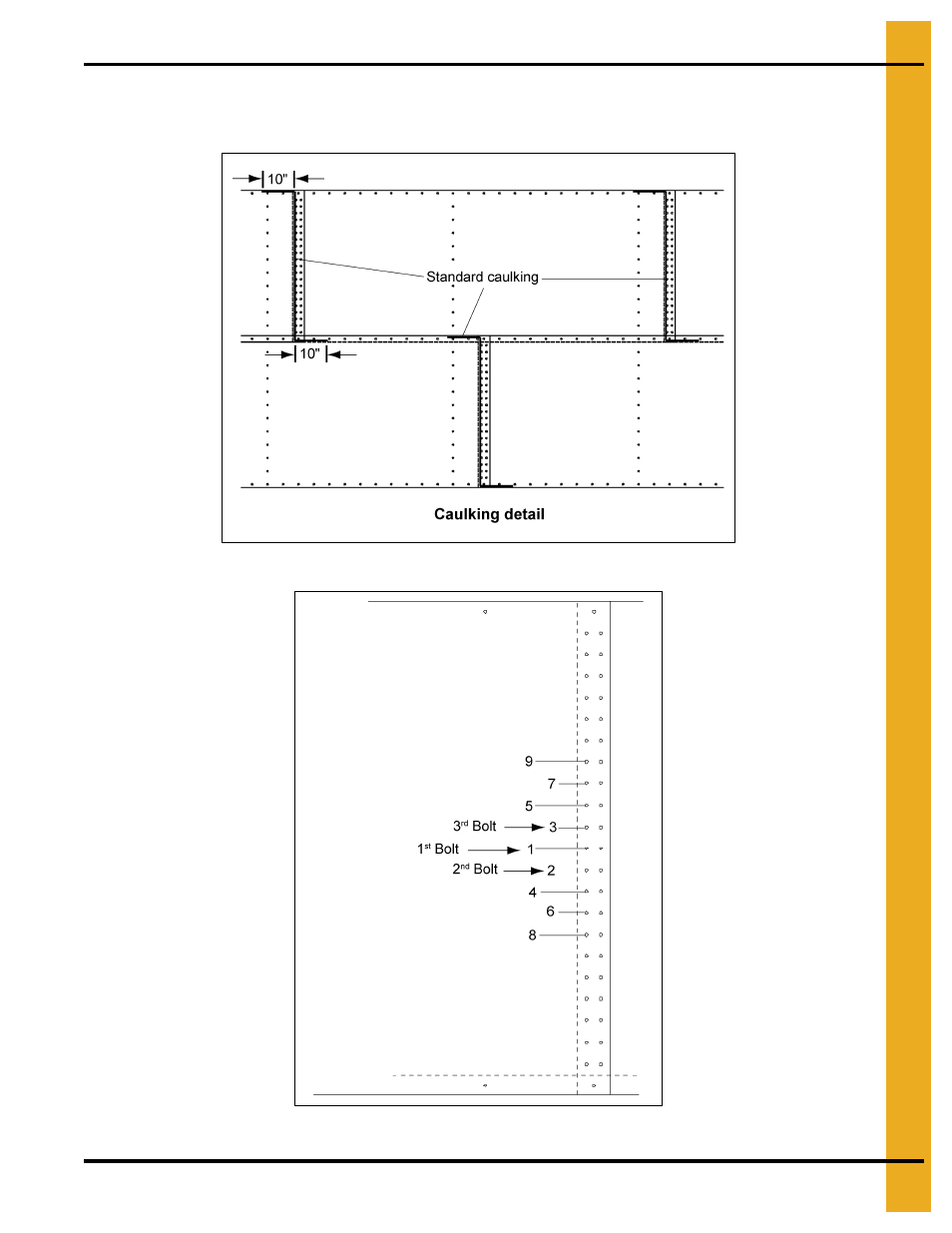

Figure 6B Standard Sidewall Sheets (As viewed from inside bin.)

Figure 6C Tighten Bolts in Order
