5. Foundations
PNEG-1095 FCDL 4.00" Corrugation Externally Stiffened Grain Bin 23

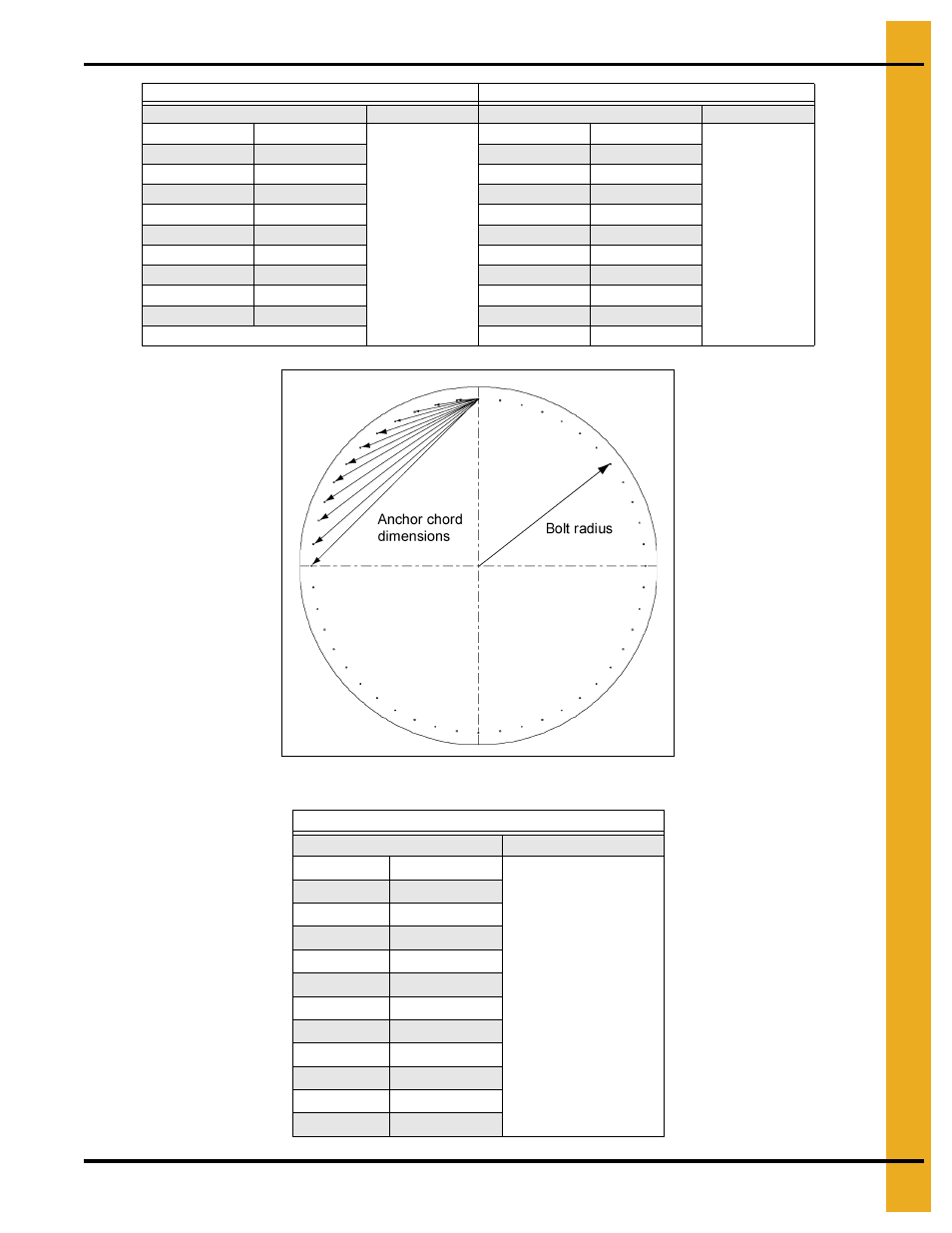

Figure 5H
48' Diameter Bin 54' Diameter Bin
Bolt Radius 24' - 2-1/8'' Bolt Qty. 32 Bolt Radius 27' - 1-15/16'' Bolt Qty. 36
Chord # Chord Dist. Chord # Chord Dist.
1 4' - 8-7/8" 1 4' - 8-13/16"
2 9' - 5-3/16" 2 9' - 5-3/16"
3 14' - 7/16" 3 14' - 11/16"
4 18' - 6-1/16" 4 18' - 6-15/16"
5 22' - 9-1/2" 5 22' - 11-1/2"
6 26' - 10-3/8" 6 27' - 1-15/16"
7 30' - 8-1/8" 7 31' - 1-7/8"
8 34' - 2-5/16" 8 34'-11"
9 37' - 4-9/16" 9 38' - 4-15/16"
10 41' - 7-3/8"
60' Diameter Bin
Bolt Radius 30' - 1-3/4" Bolt Qty. 40
Chord # Chord Dist.
1 4' - 8-3/4"
2 9' - 5-3/16"
3 14'-7/8"
4 18' - 7-9/16"
5 23'-7/8"
6 27' - 4-7/16"
7 31'-6"
8 35' - 5-1/4"
9 39' - 1-7/8"
10 42' - 7-9/16"
11 45' - 10-1/8"
