6. Installation
PNEG-1095 FCDL 4.00" Corrugation Externally Stiffened Grain Bin 65
Sidedraw Installation

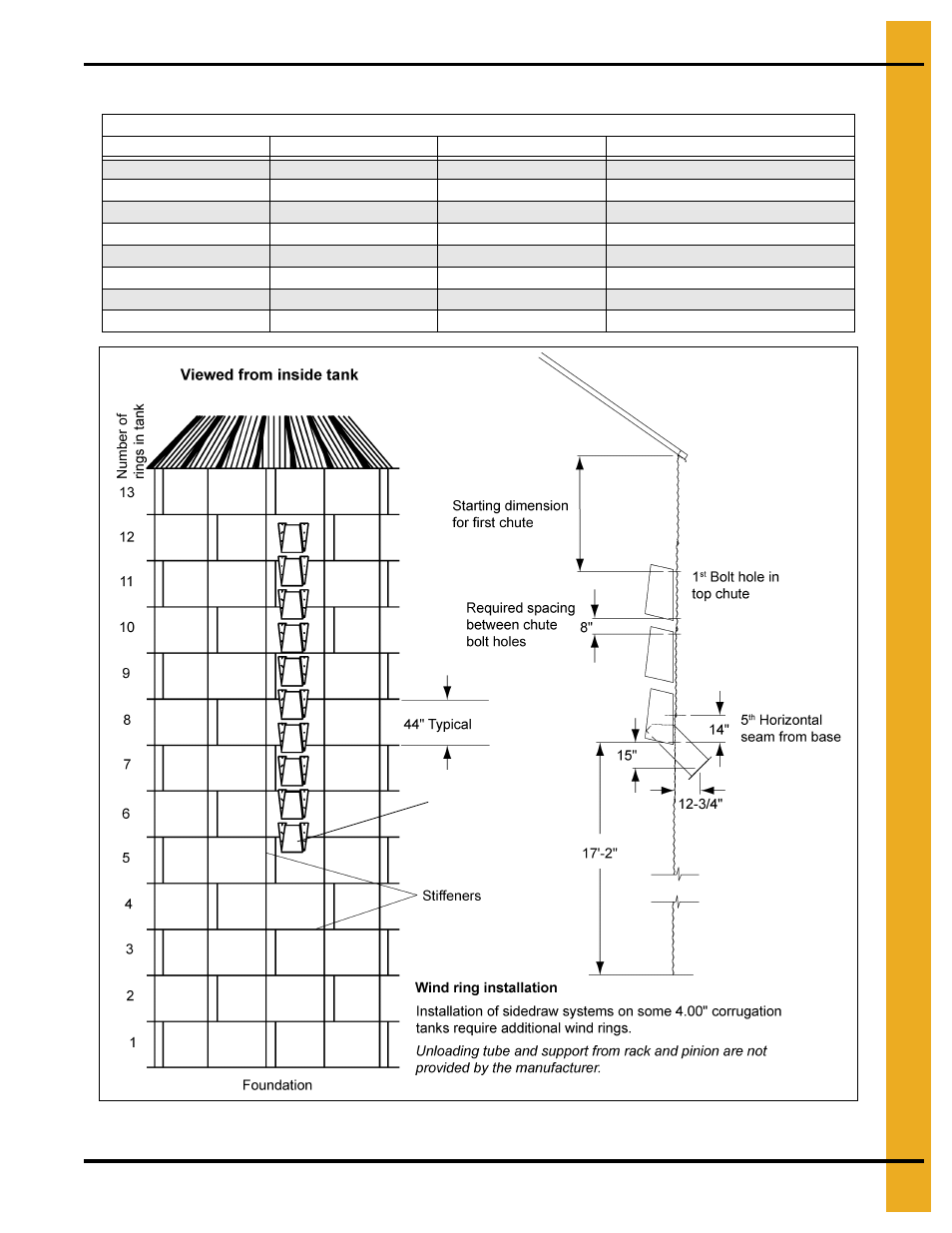

Figure 6V Sidedraw Installation
Sidedraw Chute Installation
Number of Rings Starting Dimension Number of Chutes Horizontal Location for First Chute
14 34" 12 Center between Stiffeners
13 54" 10 Middle of Sheet
12 42" 9 Middle of Sheet
11 62" 7 Middle of Sheet
10 50" 6 Middle of Sheet
9 38" 5 Middle of Sheet
8 58" 4 Middle of Sheet
7 48" 3 Middle of Sheet
(See Figure 6Z on
Page 67.)
(See Figure 6Y on
Page 67.)
