Rough Country 770S - Manual (Page 6)

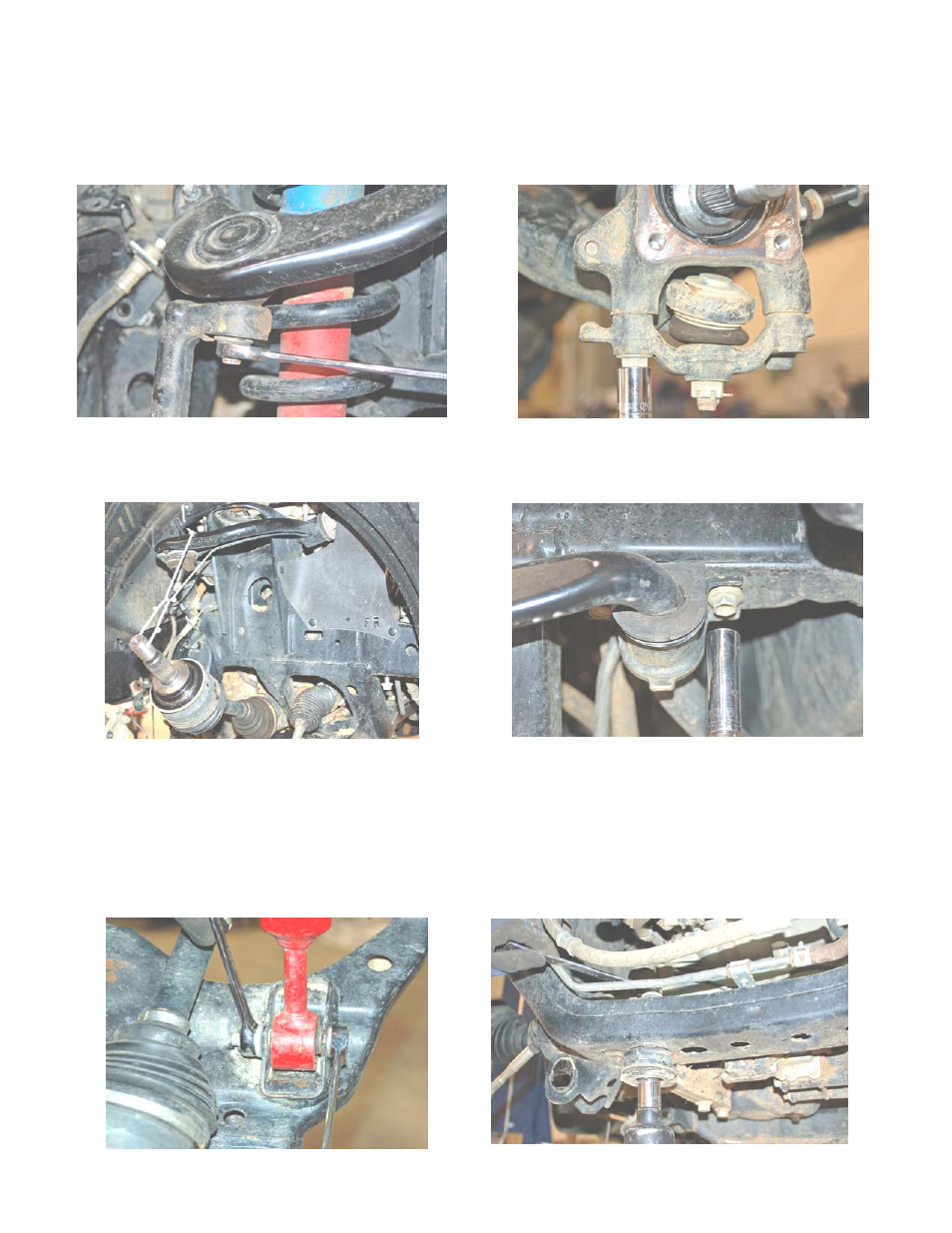

PHOTO 11 PHOTO 12
PHOTO 13 PHOTO 14
PHOTO 15 PHOTO 16
17. Remove the upper ball joint nut from the upper control arm using a 19mm wrench. Separate the ball joint from the
knuckle by striking the knuckle with a large hammer to dislodge the ball joint Retain the stock nut for re-use. See
PHOTO 11.
18. Using a 19mm socket, remove the 2 bolts as shown in Photo 12 from the lower ball joint bracket. . Retain stock hard-
ware. Remove the knuckle. See Photo 13.
19. Unbolt the sway bar frame mount brackets using a 14mm socket. Remove the sway bar. Retain stock hardware. See
PHOTO 14.
20. Using a 14mm wrench, remove the 3 bolts holding the strut to the top of the strut tower. Using two 19mm wrenches,
remove the lower strut bolt. Remove the strut from the vehicle and retain stock hardware . See PHOTO 15.
21. Remove the lower control arm bolts using a 19mm socket and wrench. Remove the arms from the vehicle and retain
stock hardware for reuse.
22. Repeat steps 3-21 on opposite side of vehicle
23. Support differential with stands.
24. Remove the factory front differential support bolts using a 22mm socket. Retain factory hardware See PHOTO 16.
