Input variable
Measured variable The measured quantity is the distance between
process fitting of the sensor and product surface.
The reference plane is the seal surface on the
hexagon or the lower side of the flange.
3
4
2
1

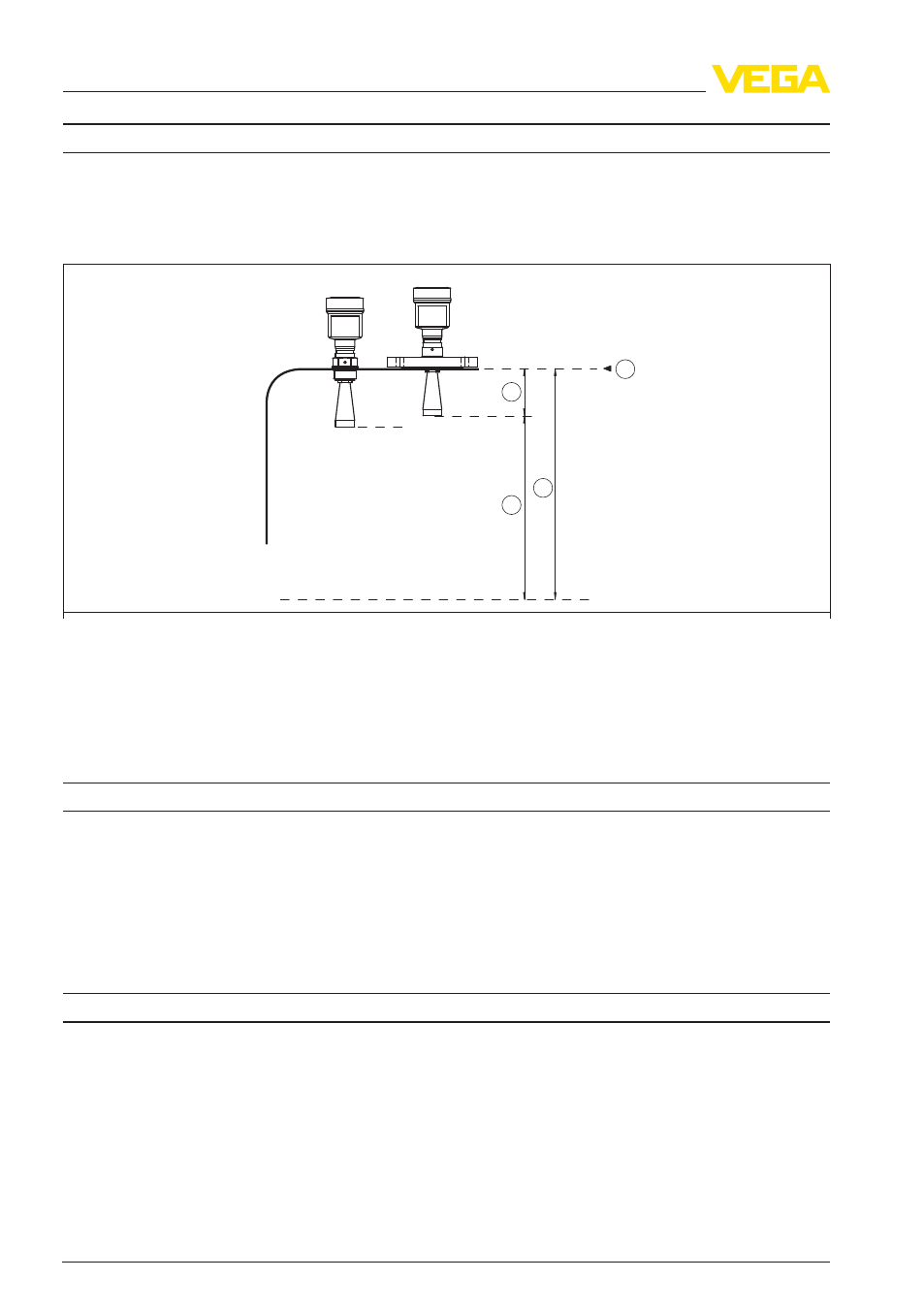

Fig. 43: Data of the input variable
1 Reference plane
2 Measured variable, max. measuring range
3 Antenna length
4 Useful measuring range
Max. measuring range 35 m (114.83 ft)
Output variable
Output
-
Physical layer Digital output signal according to standard EIA-485
-
Bus specifications Modbus Application Protocol V1.1b, Modbus over
serial line V1.02
-
Protocols Modbus RTU, Modbus ASCII, Levelmaster
Max. transmission rate 9.6 Kbit/s
Accuracy (according to DIN EN 60770-1)
Process reference conditions according to DIN EN 61298-1
-
Temperature + 18 … +30 °C (+64 … +86 °F)
-
Relative humidity 45 … 75 %
-
Air pressure 860 … 1060 mbar/86 … 106 kPa (12.5 … 15.4 psig)
Installation reference conditions
-
Min. distance to installations > 200 mm (7.874 in)
-
Reflector Corner reflector
