9
Tighten the compression nut of the cable entry. The seal ring must
completely encircle the cable
10 Screw the housing cover back on
The electrical connection is finished.
Information:
The terminal block is pluggable and can be removed from the
electronics. To do this, lift the terminal block with a small screwdriver
and pull it out. When inserting the terminal block again, you should
hear it snap in.
5
.3 Wiring plan
2
1

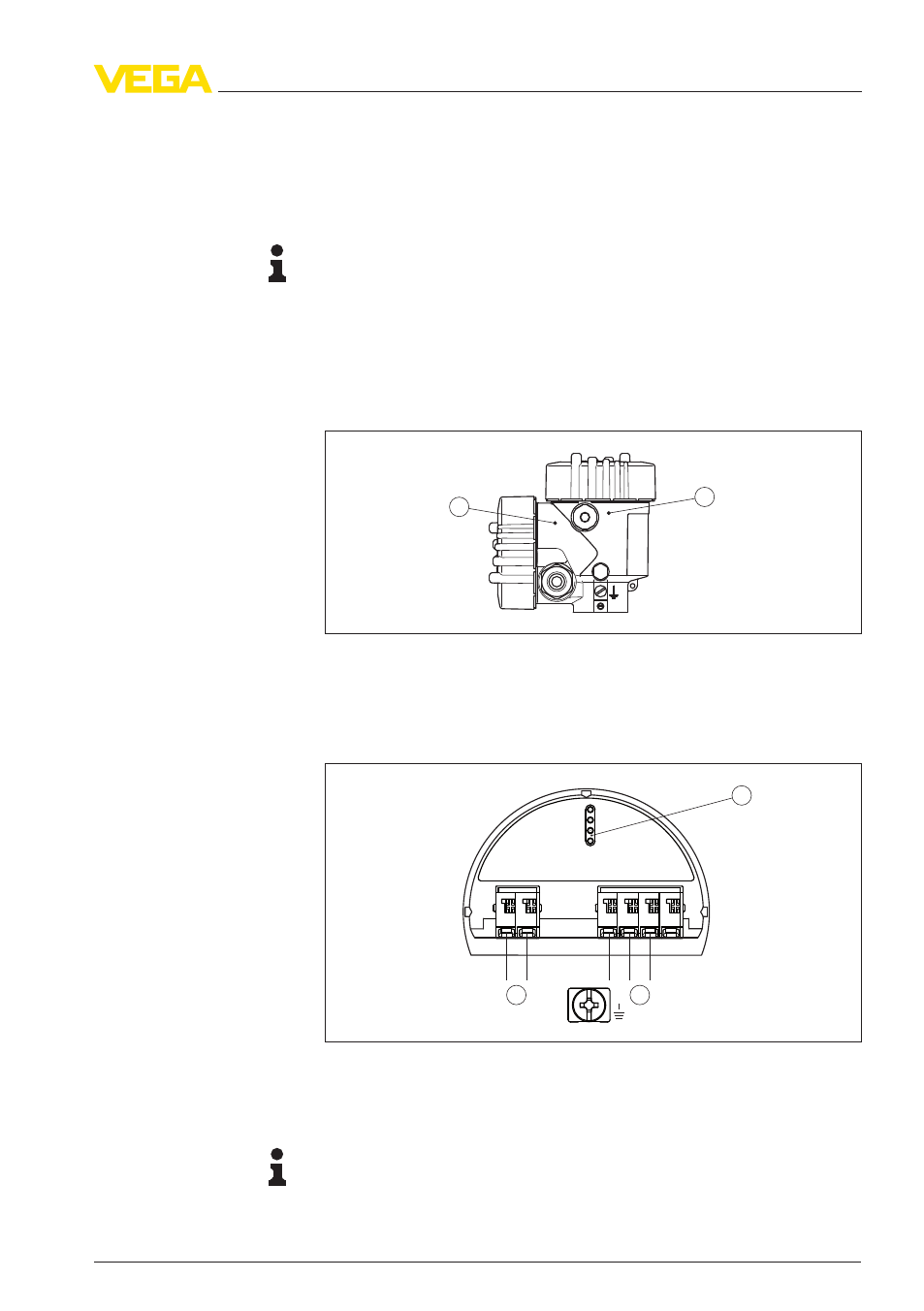

Fig. 20: Position of connection compartment (Modbus electronics) and
electronics compartment (sensor electronics)
1
Connection compartment
2
Electronics compartment
5
6
7 8
4...20mA
2
1
2
+
( )
(-)
1
1
Fig. 21: Electronics compartment, double chamber housing
1
Internal connection to the connection compartment
2
For indicating and adjustment module or interface adapter
Information:
The connection of an external indicating and adjustment unit is not
possible with this double chamber housing.
Overview
Electronics compart-
ment
VEGAPULS
62 • Approval according to LPR radio standard
27
5 Connecting to power supply and bus system
41722
-EN
-120706
