9 Measured value transmission to a WEB-VV server
RS232/Ethernet connection • VEGAMET 391/624/625, VEGASCAN 693, PLICSRADIO C62
30325-EN-130701

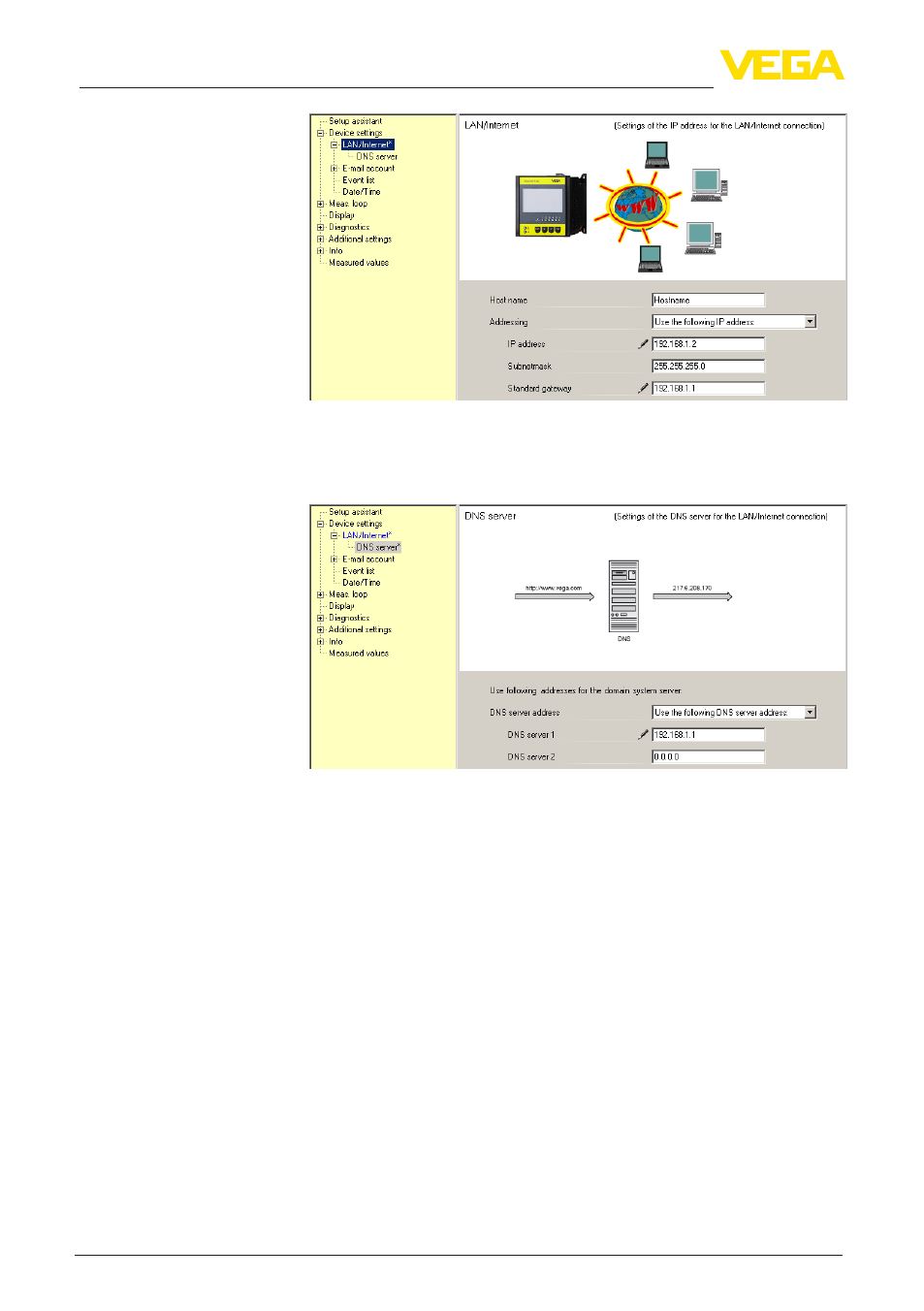

Fig. 17: IP addressing
Enter the IP address of the MoRoS under "Instrument settings - DNS
Server".
Fig. 18: DNS addressing
The access data of the ISP must be written into the MoRoS. You can
find the procedure in chapter "Commissioning the MoRoS" as well as
in the operating instructions manual.
Define a WEB-VV event as described in chapter "Set up measured
value transmission".
Signal conditioning instrument with MoRoS/GPRS
modem
Prerequisites for setup:
•
PC with PACTware and suitable DTM as well as access to the
signal conditioning instrument via VEGACONNECT, USB or LAN
•
Modem location with sufficient wireless coverage
•
SIM card with activated data transmission (data card CSD+GPRS)
•
PIN of SIM card deactivated
•
Internet access data with APN (Access Point Name) from the
mobile communications provider must be known.
DNS addressing
MoRoS setup
Measured value transmis-
sion
